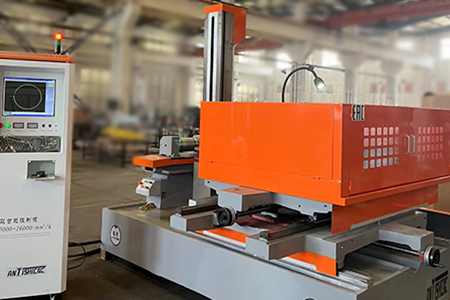

DK77100 Large Table Size Fast Speed EDM Wire Cutting Machine
X.Y axial stroke:1000X1200mm
U. V-axis stroke:±35×±35mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Specifications | DK77100 |
Electrical cabinet form | Vertical cabinet (full step type) |
Guide | V flat guide rail |
Lead screw form | Ball screw |
XY motion motor form | Stepper motor |
Working mode of wire conveying motor | Frequency converter speed regulation 1 ~ 12m / S |
Machine tool protection | Environmental protection cover |
Resolution of motion axis | 0.001mm |
Table size | 1150X1600 |
X.Y axial stroke | 1000X1200mm |
U. V-axis stroke | ±35×±35mm |
Machining taper / machining thickness | ±6°/80mm |
Maximum straight cutting thickness | 1100mm(Z-axis electric lifting) |
Control mode | 4 axis linkage |
Maximum load capacity | 1500kg |
Maximum processing current | 4.5A |
Maximum processing efficiency Cr12, H = 60mm | ≥180 mm²/m |
Surface roughness (straight cutting,
H ≤ 40mm) |
Ra≤2.5μm |
Cutting accuracy Cr12, H = 40mm | ≤0.015mm |
Radial runout of wire storage cylinder | ≤0.02mm |
Molybdenum wire diameter range | 0.12~0.22mm |
Wire storage capacity of wire storage cylinder | 250m |
Molybdenum wire loss Cr12, H = 40mm | ≤0.02mm /300000mm² , |
Cutting power supply | High frequency power supply system without resistance |
Operating system | Windows XP |
Control system | AUTOCUT |
Communication interface | LAN, RS232, USB |
Operation function | Drawing or CAD drawing import |
Working tank volume | 55L |
Working fluid filtration mode | Filter screen filtration |
Weight of whole machine | 6000 kg |
Overall dimension of main engine | 2500x2300x2500mm |
Cabinet size | 730×630×1820mm |
Rated power of electric appliance | ≤ 2.7kW |
Product Description
WEDM consists of main machine, electrical control system, software and cooling filter system. The equipment is used for the discharge machining of various complex dies and parts, for the machining of various non-ferrous metals, tool steels, alloy steels and other materials. The main machine of the equipment shall have high geometric accuracy and position accuracy, and enough static, dynamic, thermal stiffness and accuracy. The equipment has the functions of taper cutting, variable taper and special meshing cutting;
DK77100 Large table size WEDM is composed of main machine, electrical control system, software part and cooling and filtering system.

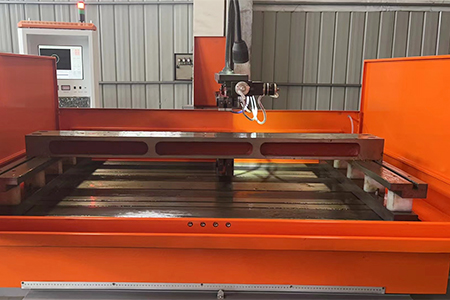

The main machine is mainly composed of fuselage, column, wire frame,
workbench, etc. the structure of the machine tool is compact and the design is reasonable. It has
five axes of X,Y, U, V and Z, among which the four axes of X, Y, U and V are linked and driven by

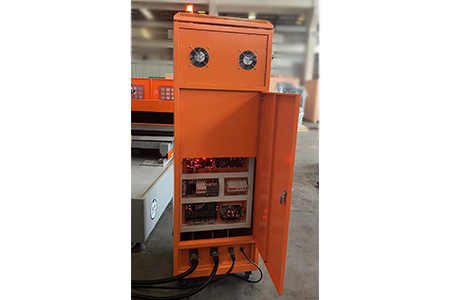

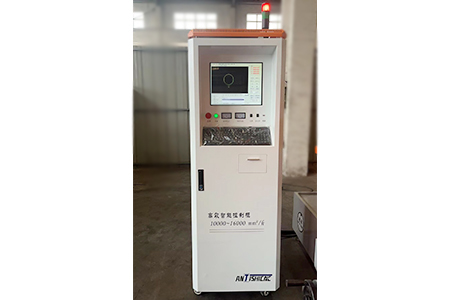

step without resistance and constant current. The vertical cabinet DQE-DS-03 (full step type) of the electrical cabinet is made of cold-rolled steel plate, with electrostatic spray molding. The interior is
equipped with computer and control software, high-frequency control module, driver, frequency converter, fan, etc. The cooling system includes water tank, cooling pump and filter screen.
Consumable Parts List
Specifications | Need to have | Remark |
Molybdenum wire, 0.18mm | 20 | 2000m/spool |
JR3A | 27 | 2kg/can,9 can per carton |
Guide Wheel | 10 | Φ45*60mm |
Conductive Block | 20 | 10*20*8mm |
Filter | 10 | Φ33*35*150mm |
Vulnerable parts — A Full set of Circuit board (Optional)
S/N | Specification | Qty. |
1. | Driver board | 1 |
2. | Power amplifier board | 1 |
3. | Inveter | 1 |
