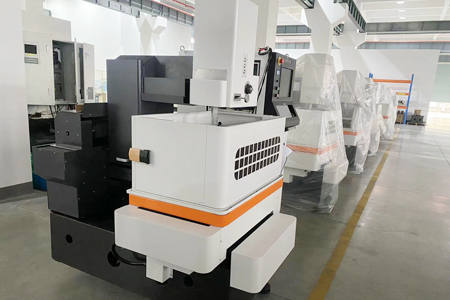

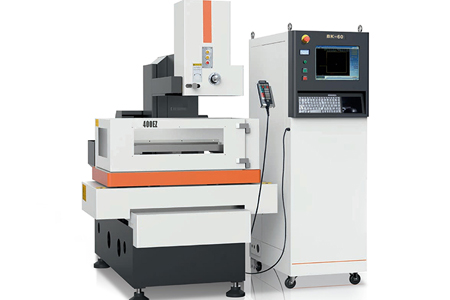

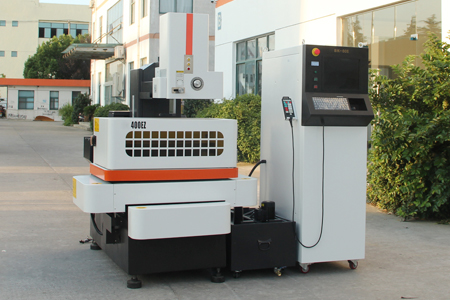

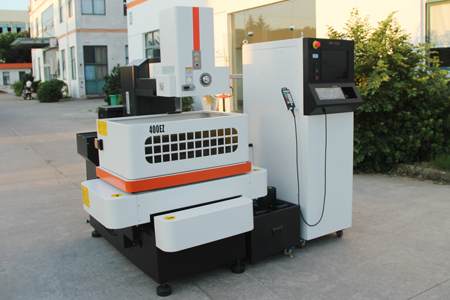

AC Servo Medium WEDM Machine 400EZ
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Unit | 400EZ |
| Worktable (length and width) | mm | 660*450 |
| X-axis travel | mm | 320 |
| Y-axis travel | mm | 400 |
| Z-axis travel | mm | 260 |
| Pulse Width | us | 1-250 |
| Output pulse gap to pulse width ratio | 4—15 | |
| Number of low pressure pipes | Pcs | 0-10 |
| Number of high pressure pipes | Pcs | 0-3 |
| Servo speed | Rpm | 0-15 |
| Servo tracking | Rpm | 1-199 |
| Servo speed limit | Rpm | 1-5000 |
| Wire speed | Step | 0-3 |
| Cutting times | times | 1-7 |
| Minimum Mechanical Drive Equivalent | um | 1 |
| Pulse resolution | um | 0.4 |
| Spindle travel (electrically adjustable) | mm | 260 |
| Maximum cutting slope
workpiece thickness |
±6°/80 | |
| The maximum load capacity of the workbench | kg | 200 |
| Positioning accuracy X/Y | mm | ≤0.01 |
| Repeat positioning accuracy X/Y | mm | ≤0.005 |
| Best multi-knife cutting accuracy | mm | ≤0.01 (diameter 18 square height 25mm, cut one and trim two, material SKD11 or Cr12, HRC58) |
| Optimum Surface Roughness | um | Ra≤1.0 |
| Maximum cutting efficiency | mm2∕min | ≥200 |
| Common cutting efficiency | mm2∕min | ≥150 |
| Maximum processing current | A | 8 |
| Processing power no-load voltage | V | 80 |
| Power consumption | KW | ≤2 |
| Wire Diameter | mm | ∮0.12-∮0.2 |
| Wire drum speed | Frequency | |
| Tight wire method | Two-way automatic wire tightening | |
| Wire speed | m/s | 3-12 |
| Filtration accuracy | um | ＜20 |
| Electricity | 380V±10% / 50/60Hz / 2kVA | |
| Temperature | Temperature 15-30℃
Humidity 40-80% |
|
| Barometric pressure | kpa | 86-106kpa |
| Dimensions (L*W*H) | mm | 1750*1200*2000 |
| Machine weight | kg | 1600 |
Equipment Introductions
“400EZ” wire-cutting machine tool is a four-axis CNC eye mask that moves up and down with the “Z” axis. It is a servo-feeding wire-cutting machine tool with high cost performance that ANTISHICNC has limitedly promoted in China. And equipped with Hankey’s latest intelligent discharge database. As long as you input: material, height, finish and other values, the best discharge specification can be automatically generated without touching the parameter code.
Standard Equipment
Fanless industrial dual-core CPU (4 threads) computer
The main control computer adopts industrial control computer with high reliability, stability and High anti-interference
Keyboard and mouse, manual control box
Integration of programming and control
Graphics check
Measurement operation procedure and automatic programming function
Automatically generate multiple cutting programs
Graphic coordinate transformation, scaling, rotation functions, graphic tracking display
Automatic end face and centering functions High-precision center finding, edge finding accurac≤ 6um
Automatically add transition arc function (arbitrary, corner function)
Coordinate system: Incremental coordinates (relative coordinates)
adaptive control loop
AC power control circuit
Fully enclosed working fluid tank
Automatic constant tension wire system
Toolbox 1 set
Cutting fluid (1 barrel)
Industrial display screen, Chinese version
SLC industrial chip
Electronic hard disk capacity ≥ 24G
USB interface, network interface (free open reading letter)
Power failure memory function, automatic shutdown function after processing
File management and editor
Process Expert System
Linear and circular interpolation function
Short circuit, broken wire processing function
Reverse Machining Function
Variable taper processing function
Upper and lower different surface processing function
Ultra-low molybdenum wire loss circuit
High pressure. Low pressure circuit
Processing efficiency/accuracy/life guarantee for more than 5 years
Network communication integrated information interface
Molybdenum wire (1 roll)
