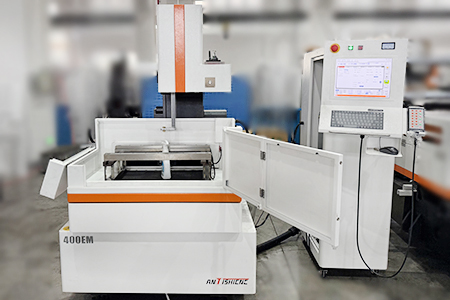

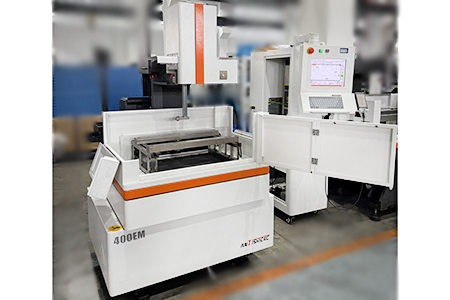

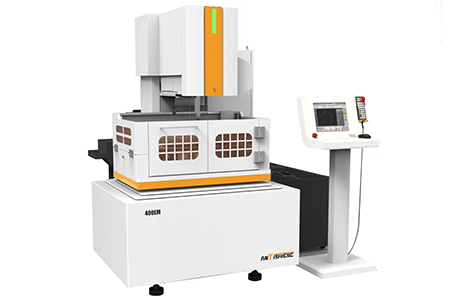

400EM CNC Medium Wire Cutting Machine

X-axis travel : 400mm

Y-axis travel : 320mm

Z-axis travel : 260mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Item		Unit	400EM
Machine Body	Machine tool dimensions (LxQxH)	mm	160018002170
Machine Body	Total weight	kg	1700
Workbench	Workbench dimensions (WxL)	mm	660*450
Travel	X-axis travel	mm	400
	Y-axis travel	mm	320
	Z-axis travel	mm	260
Work Liquid Tank	Length x Width	mm	755*490
Cnc Power Supply	Pulse width	us	0.2-120
	Output pulse gap to pulse width ratio		3—31
	Number of low pressure pipes	Pcs	0-21
	Number of high-pressure pipes	Pcs	0-7
	Number of AC pipes	Pcs	0-3
	AC pulse width	Lever	0-7
	Servo speed SV1	Lever	0-99
	Servo tracking SV2	Lever	0-99
	Servo speed limit	Lever	1-999
	Wire transport speed	hz	0-50
	Cutting frequency	Times	1-5
	Minimum mechanical drive equivalent for each axis	um	1
Working Ability	Maximum cutting thickness	mm	300
	Maximum cutting slope /workpiece thickness		±6 °/80
	The maximum load-bearing capacity of the workbench	kg	300
Machining Accuracy	Positioning accuracy X/Y	mm	≤0.008
	Repetitive positioning accuracy X/Y	mm	≤0.003
	Multiple cutting accuracy	mm	≤0.005 (25mm high octagon with a diameter of 18, cut one and repaired two, made of SKD11 or Cr12 material,HRC58)
	Optimal surface roughness	um	Ra≤0.8 (Square 10mm * 10mm * 25mm, cut one and repair two, material SKD11 or Cr12, HRC58)
Processing Efficiency	Maximum cutting efficiency	mm2∕min	300
	Common cutting efficiency	mm2∕min	180
	Maximum processing current	A	12
	Molybdenum wire loss		150 thousand ㎜²/ Zero loss/workpiece height 60mm (9000mm ²/h/water-based machining fluid)
	Power consumption	KW	≤2
Feeding System	Wire diameter	mm	∮0.12- ∮0.2
	Wire feeding speed		Frequency Control
	Tightening wire method		Automatic tightening of springs and heavy hammers
	Wire Speed	m/s	3-12
Working Liquid Tank	filter accuracy	um	<10
	filtering mode		Multi level filtering method
	Working liquid		specialized cutting fluid
Environment And Electric Power	electric power		380V±10% / 50/60Hz / 2kVA
	temperature		Temp.15-30℃ / humidity 40-80%
	air pressure	kpa	86-106kpa

400EM CNC Medium Wire Cutting Machine Product Introduction :

1.High quality castings: The body, trailer, worktable, etc. are all cast with high-quality resin sand as a whole. After multiple failure treatments, the internal stress of the castings is eliminated, ensuring the high precision and accuracy maintenance of the machine tool;

2.Airframe structure: The columns are fixed “C” – shaped structures, which are more stable and have better seismic resistance;

3.X/y-axis structure: The X and Y axes adopt a cross slide structure;

4.Tightening mechanism: bidirectional tightening mechanism;

5.Sheet metal structure: waterproof sheet metal structure;

6.X/Y axis drive: X and Y axis precision ball screws are directly connected to the motor to eliminate connection gaps;

7.U/V/Z-axis drive: The precision ball screws for U and V axes are directly connected to the motor, while the Z-axis uses a screw and motor to achieve CNC control accuracy;

8. Compensation for each axis: Screw compensation and reverse compensation can be achieved for all five axes;

9.Machine tool lubrication: The centralized automatic lubrication system ensures effective lubrication of all moving parts, ensuring their service life;

10.Machine tool lighting: High brightness LED lighting is used in the processing area and threading area for easy operation;

11.Status display: with three color light display function (standby, processing, end); Short circuit and wire breakage alarm processing function;

12.Processing fluid filtration: multi-stage water filtration system;

Standard Equipment

NO.	ITEM	DESCRIPTION	ORIGINAL
1	Machine body	High quality resin sand casting	CHINA
2	X. Y-axis lead screw	Precision ball screws	CHINA
3	X、Y-axis guide rail	Precision linear guide rail	Korea/Taiwan
4	Guide wheel	Thickened gemstone guide wheel or specially made guide wheel	China customized
5	Guide wire nozzle	special	CHINA
6	Reversing switch	Rainbow Stone	CHINA
7	Filtration system	Slow-speed Wire filtration method	ANTISHICNC
8	Power control cabinet	High performance control power supply	ANTISHICNC

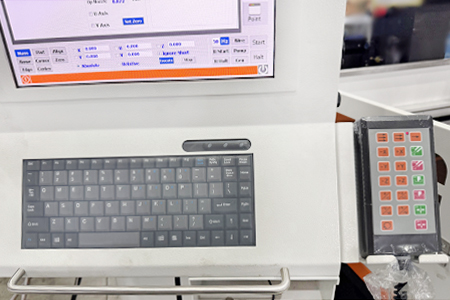

9	Industrial Control Computer	High performance embedded fanless system Windows7	ANTISHICNC
10	AC servo motors and drivers	CUSTOMIZED	CHINA
11	Frequency converter	Shihlin or AC servo	TAIWAN
