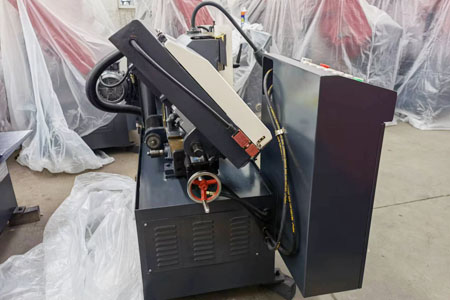

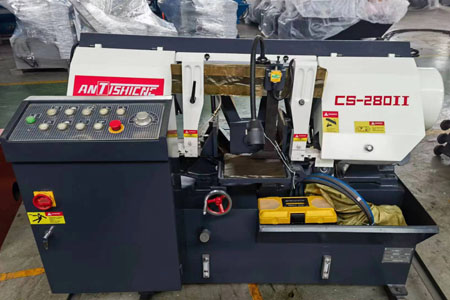

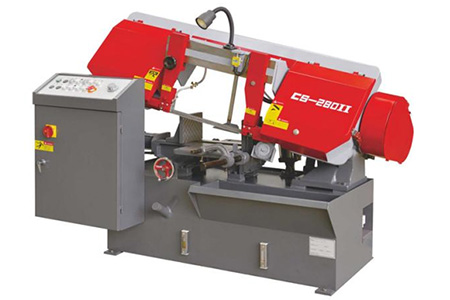

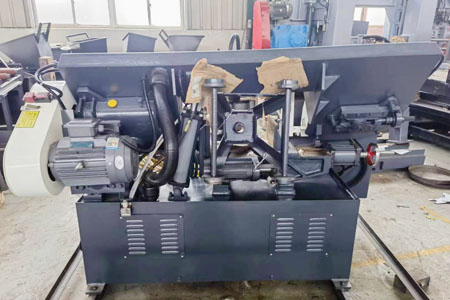

CS Series Scissor type Metal Cutting Saw CS-280II
Round material: Ø280 mm
Square : 220*300 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specification| Model | CS-280II | |
| Max.cutting capacity | Round | 280 mm |
| Quadrate | 220*300 mm | |
| Saw Blade | Speed | 25/35/45/60/80 m/min |
| Size | 27×0.9×3505 mm | |
| Carbide and bearing blade guides | Yes | |
| Wire brush & flood coolant | Yes | |
| Tension | Manual | |
| Motor output Power | Blade | 2.2 kw |
| Coolant | 0.06 kw | |
| Work feeding | – | Manual |
| Work Vise | – | Hydrualic |
| Machine weight | kg | 720 kg |
| Overall dimension | mm | 1770x1130x1160 |
Product Details
CS series metal band saw is mainly used for sawing of small and medium-sized bars, tubes and plates, and can be adapted to sawing of various ferrous materials. It has the characteristics of high cutting efficiency, energy saving, narrow kerf, energy saving and material saving, and simple operation.
The machine tool adopts scissor structure to ensure the reliability, stability and advancement of the structure, and the functions of each part have margins, and at the same time, it also ensures high-quality sawing accuracy.
Standard Equipment
Blade cleaning brush.
Working light
Manual feed roller
Length stopper
Roller rack
One piece of bi-metal saw blade
One set of tools with tool box
Fast approaching device
Optional Equipment
Bundle cutting
Roller stock table 2M long
INVERTER
