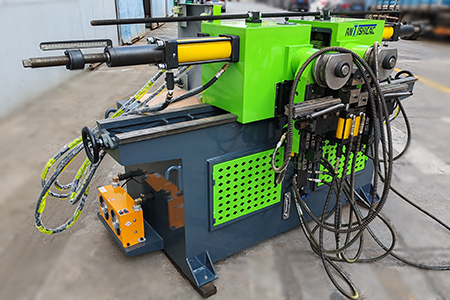

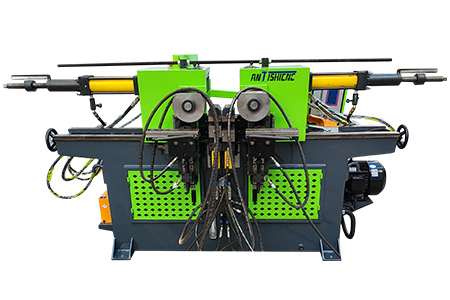

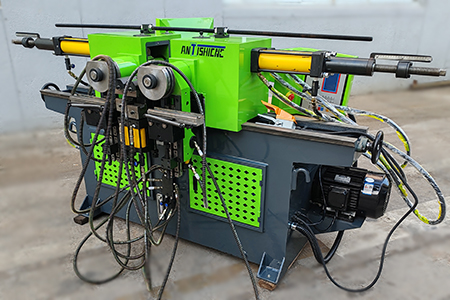

Double-Head Hydraulic Pipe Bending Machine SW38NC
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Main specifications | Unit | SW38NC | Remark |
| Max. bending diameter x Wall thickness | mm | Φ38×2 | 1. The minimum bending radius is based on the pipe diameter
2. The maximum bending radius can be determined according to customer requirements |
| Max. bending radius | mm | R200 | |
| Mini. bending radius | mm | R≥1.5D | |
| Max. bending Angle | Degree | 190 | |
| Double bend center range | mm | 190-1500 | |
| Control system | / | Microcomputer control | |
| Max system pressure | Mpa | 12 | |
| Hydraulic system control | Solenoid valve | ||
| Tank volume | L | 120 | |
| Machine dimensions | mm | 2600×1200×1600 | |
| Machine weight | Kg | 1200 |
Features
1.According to the different structure of the base, it can be divided into Angle type and non-angle type.
2.Microcomputer control, convenient operation, easy maintenance.
3.Full cycle and half cycle operation can be selected, suitable for mass production of symmetrical products on both sides.

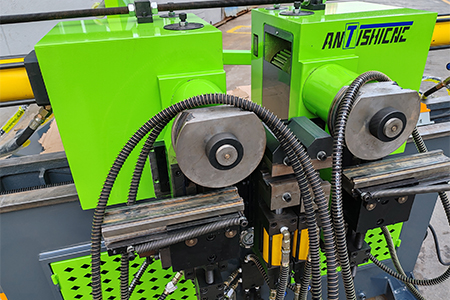

4.Fast adjustment design of the left and right head, strong locking force, the center distance between the two axes is not easy to deflect when bending.
5.The bending Angle adjustment control precision is high, and conforms to high safety standards.
6.It can be operated one or more than two at a time according to the outside diameter of different materials.
Main Parts for the machine
| Specifications | Supplier |
| Machine frame | China |
| Major electrical appliance | Taiwan TAIAN |
| Hydraulic valve | Taiwan 7OCEAN |
| Overflow valve | Taiwan 7OCEAN |
| Electric motor | China |
| High pressure tubing | China |
| Oil pump | China |
| Emergency stop switch | China |
| Switching power supply | Taiwan MEAN WELL |
| Bearings | China |
| The mold | China |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
