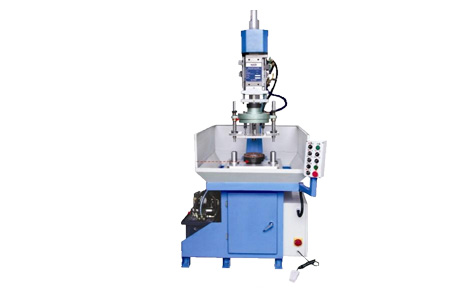

Drilling machine with oil pressure automatic feed unit
Max.drilling machine : 35mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | OD-35 |
| Max.drilling machine | 35mm |
| Diameter of column | 95mm |
| Spindle travel | 140mm |
| Distance spindle to column | 282.5mm |
| Max.distance spindle nose to table | / |
| Max.distance spindle nose to base | 700mm |
| Spindle taper | MT4 or ER40 |
| Spindle speeds range | customer specified |
| Work pressure | 20-35kgf/cm2 |
| Dimension of base | 690x500mm |
| Overall height | 1165mm |
| Main motor | 2.2KW |
| Coolant motor | 40W |
| G.W/N.W | 630/600KG |
| Packing dimension | 152x112x230cm |
Description：
●Spindle system：the spindle head is driven by oil pressure,which helps to smooth the feeding,the current contorl valve,which is very easy to handle,may help to adjust the feeding rate.Various spindle heads and tapping heads are available upon request.
●Oli hydraulic system:due to the vane pump with wariable capacity,it’s with low noise an low heat,and runs smoothly.the high current electromagnetic valve ensures its stable and smooth running
●Electrical system:the main electric elements are telemecanique(a french brand) elements,made per international uniform standard,its compatibility and exchangeability are very high,the PLC is applied to the multi-spindle system,with which it is of low failure,easy maintenance and changeability
●Various drilling heads and tapping heads are available upon request
●Various air clamps,oil pressure clamps,air cylinders and oil cylinders are available upon request
●The spindle speed is adjustable and specific designs for air and oil pressure clamps ar available upon actual request
