Micro Bench Drill & Mill

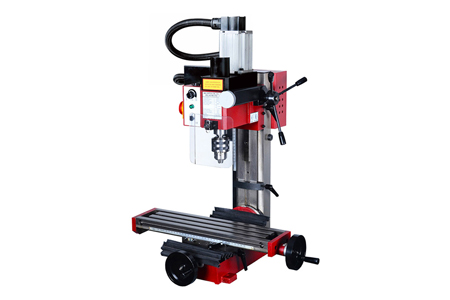

SX2LF Mini Mill Drill

Drilling capacity : 16 mm

Headstock travel (Z) : 250 mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Drilling capacity

16 mm

End milling capacity

20 mm

Face milling capacity

35 mm

Longitudinal axis (X)

300 mm

Cross axis (Y)

130 mm

Headstock travel (Z)

250 mm

Throat

167 mm

Max. distance spindle to table

280 mm

Head tilt

0

Spindle taper

MT3 or R8

Spindle speed

100-2500 ±10% rpm

Motor output power(Brushless motor)

500 W

Table effective size

460×120 mm

T-slot size

12 mm

Overal dimenstion (LxWxH)

620x550x700 mm

Packing size (LxWxH)

640x600x730 mm

Weight (Net/Gross)

58/75kg


Product Features
• SX2 with fixed column, special base and large table
• 500W high torque DC brushless motor
• Coarse down feed for drilling operations
• Hardened slide ways with gib strip adjustment
• Precision ground table with Tee slots for material clamping
