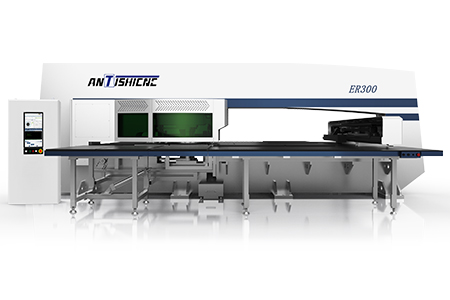

ER300 Full Servo CNC Turret Punch Press
Max. Sheet Thickness: 6.35mm
Max. Diameter: Φ88.9mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| NO. | Name | Specification | Unit | |
| 1 | Press Capacity | 300 | KN | |
| 2 | Transmission Type | Servo | ||
| 3 | Frame Construction | O-frame | ||
| 4 | Max. Sheet size | X axis | 5000 (With one re-positioning) | mm |
| Y axis | 1250□ 1500□ 2000□ | mm | ||
| 5 | Max. Sheet Thickness | 6.35 | mm | |
| 6 | Max. Diameter | Φ88.9 | mm | |
| 7 | Max. Punching Stroke | 32 | mm | |
| 8 | Max. Nibbling Speed | 2100 | hpm | |
| 1 mm pitch, 6mm punch stroke | 750 | hpm | ||
| 25.4mm pitch, 4mm punch stroke | 400 | hpm | ||
| 9 | No. of Clamps | 3 | pcs | |
| 10 | No. of Re-positioning Cylinder | 2 | set | |
| 11 | Turret Stations | 32 | pcs | |
| 12 | No. of Controlling Axis | 5(X, Y, T, C, A) | pcs | |
| 13 | Tool Distribution | 16A/ 10B/ 2BZ/2C /2D | ||
| 14 | Worktable Structure | Brush and ball mixed | ||
| 15 | Max. Feeding Speed | X axis | 90 | m/min |
| Y axis | 80 | m/min | ||
| X, Y combined | 110 | m/min | ||
| 16 | Turret Speed | 30 | rpm | |
| 17 | Rotational Tool Speed | 40 | rpm | |
| 18 | Punching Accuracy | ±0.10 | mm | |
| 19 | Max. Sheet Weight | 150 | kg | |
| 20 | Air Pressure | 0.6 | mpa | |
| 21 | Power | 63 | kw | |
| 22 | Clamp Dead Area Detection | Yes | ||
| 23 | Clamp Splint Loose Alarm Device | Option | ||
| 24 | Plate Warping Alarm | Yes | ||
| 25 | Clamp Automatically Float Down | Yes | ||
| 26 | Roller Auxiliary Feeding | Yes | ||
| 27 | Overall Size | Length | 5170□ 5670□ 6670□ | mm |
| Width | 5200□ 5200□ 5200□ | mm | ||
| Height | 2300□ 2300□ 2300□ | mm | ||
ER300 Full Servo CNC Turret Punch Press Product Introduction :
Frame
O-type closed integral welding press frame special for servo punch press. Holistic welding structure, stress relief from tempering treatment. The strong rigidity and high tonnage ensure the stable accuracy for long time, extend the service life of the machine and tools, and improve the positioning precision, reliability and durability.
Servo Transmission Technology
Rexroth punch motor, full electro technology, no any hydraulic involved. Servo direct drive main transmission, tonnage. Sealed oil tank type, good lubrication, low heat generation, insert installation. With rolling rib, lettering, knock-down hole, stretching, louver, trimming and cutting angle, forming function.
Feeding System
Rexroth feeding motors, ball screw and guide liner The big space between guider will benefit with processing accuracy while fabricate large size sheet, and it has the better balance capacity while moving in high speed. The auxiliary platform can move with the sheet, reduce 30% of the friction force between the plate and brush platform. Line guider and ball screw import from or German Rexroth, ensure the accuracy and long service life. The imported pneumatic, and electric parts ensure the overall performance reliability. Centralized lubricating system, reduce the friction of all moving parts, prolong the service life of the machine.
Worktable
The worktable surface with hard brush and steel ball, to lower down the noise while working and protect the surface of the sheet. Seamless worktable design to avoid collision during sheet metal movement. Folding table design, side auxiliary platform automatic folding control, easy to change tooling. Aluminum edging design, side aluminum edging, protect the worktable surface from wear. Side loading auxiliary roller, easy to loading the plate.
Floatable Pneumatic Clamps
The pneumatic floatable clamps reduce the deformation of the plate. The self-protection function makes no dead area for punching on sheet. The clamp automatically floats when clamping the plate, convenient for the plate clamp. Automatic unloading when the clamp returns.
Full Auto Indexed Station
Unique worm gear structure to ensure the accuracy of positive and negative bidirectional transmission. Single import synchronous belt drive to ensure synchronization between up and down.
Turret and Tooling
Precision wear-resistant guide holder inlaid on turret, large machining center in pairs processed International standard Japan AMADA long guide tool, Reasonable stations distribution, tooling in common use.
Rexroth CNC System
Particularly suitable for high-speed CNC turret punch supporting The integrated CNC, drive, PLC and I / O integrated system that subverts the CNC system architecture with very few external connections and the factory manufacturing process reduces labor and labor costs. Total DC drive DC bus has energy-saving features. Rexroth offers complete CNC, drives, PLC, I / O and servo motors as well as complete cabling, line filters and braking resistors. The greatest degree of complete sets of products, making the product has a very high stability.
| Name | Model&Supplier | |
| CNC System | Rexroth, Germany | |
| Servo Motor | ||
| Bearing | Tapered Roller Bearings 32220 | Leipzig, Germany |
| Synchronous Tooth Belt | 8M Timing Belt | Continental, Germany |
| Coupling | Y25T/42T | Japan MIKI PUllEY |
| Y25T/35T | ||
| Line Guider | R205540331-2450 | Rexroth, Germany |
| R205530331-4000 | ||
| R205570331-3000 | ||
| Ball Screw | R40-40K2-FSC-1881 | Rexroth, Germany |
| R40-40K2-FSC-2900 | ||
| Air Source Treatment Quadreple | GFC300-10 | Airtac |
| SMC | 4V220-08 | |
| Two-Position Ttree Way Magnetic | 4V210-08 | |
| Reduction | VRBZ-140 | Japan Shimpo |
| Breaker | ABS53B 40A | LS, KOREA |
| Contactor | LC1E160M5N | Schneider, France |
| Button | YW1B-M1E10 | IDEC, Japan |
| Chain | 16A | Tsubaki, Japan |
| Drag Chain | 17X25-1700/680 77X26-1700 | IGUS, Germany |
