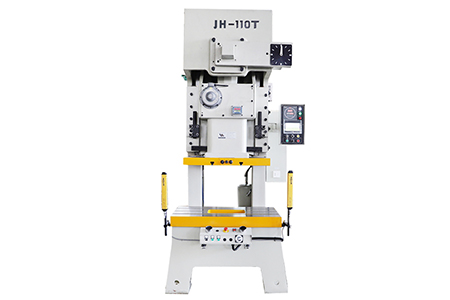

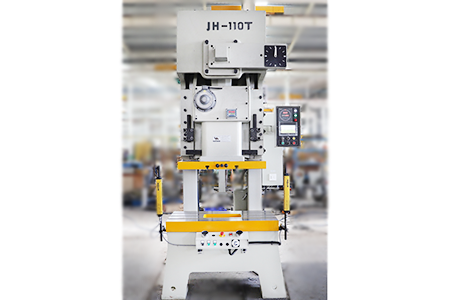

JH-110T Pneumatic Press Punching Machine
Punching force:110 Ton
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | Unit | JH-110T |
| Punching force | Ton | 110 |
| Capability occurrence point | mm | 6 |
| Constant speed per minute | s.p.m | 50 |
| Speed change per minute of travel | s.p.m | 30-60 |
| Stroke | mm | 180 |
| Slider adjustment amount | mm | 80 |
| Slider adjustment area | mm | 800×500 |
| Maximum closing height | mm | 360 |
| Mould height | mm | 400-450 |
| Lower table size | mm | 1150*600*110 |
| Shank hole | mm | Φ50 |
| Air pressure | kg /cm2 | 6 |
| Main motor | KW.P | 11 |
| Machine size | Mm | 2200*1400*3100 |
| Machine weight | Kg | 8300 |
JH-110T Pneumatic Press Punching Machine Product Introduction :
JH series pneumatic punch machine produced by shanghai ANTS Machine Equipment company is mainly divided into open single point and open double point, with multiple models ranging from 25 tons to 400 tons.
Mainly suitable for blanking, punching, forming, bending, shallow drawing and other cold stamping process realization, widely used in electrical vehicles, agricultural machinery, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial fields.
he use of pneumatic punch processing production is more sanitary, clean!
The use of advanced photoelectric protection technology, can achieve a significant improvement in safety performance, computer counting and program cooperation, can achieve unattended processing process, greatly improve the work efficiency, reduce the cost of production.
