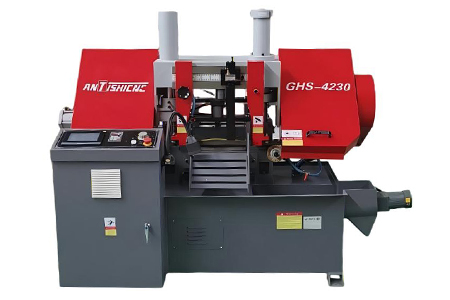

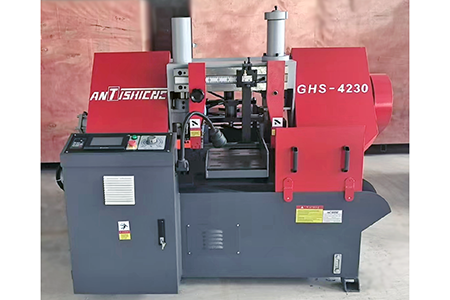

GHS4230 CNC Horizontal Band Saw Machine
Max. cutting size: 300*300mm
Saw blade specifications: 3565*27*0.9mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications| Model | GHS4230 |
| Max. cutting size(mm) | 300*300 |
| Saw blade speed (m/min) | 27/45/69 |
| Saw blade specifications(mm) | 3565*27*0.9 |
| Feed rate | CVT |
| Main motor power | 2.2kw |
| Hydraulic motor power | 0.55kw |
| Water pump motor power | 0.04kw |
| Clamping method (Vice) | Fully automatic |
| Transfer method | Turbine shaft |
| Package Size | 1850*2050*1450mm |
| Weight | 1300kg |
GHS4230 CNC Horizontal Band Saw Machine Product Introduction :
Product Description

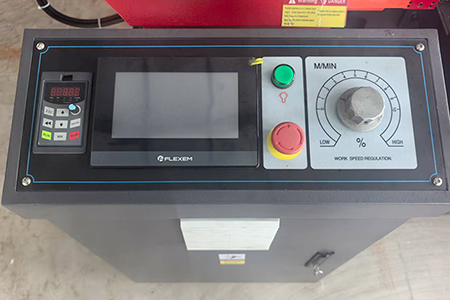

The GHS Series PLC Controlled Fully Automatic Metal Cutting Band Saw is a rugged, modern shop saw for precise cuts in medium diameters. All operating switches are clearly grouped on the touch screen and control panel. The machine is mainly characterized by fully automatic control. Using PLC touch screen panel, you can adjust the feed of the saw frame, steplessly adjust the speed of the saw blade, and hydraulically process the workpiece. The powerful automatic feed does not require any electronics or programming and still provides high repeatability and dimensional accuracy.
The GHS Series Band Saws are designed for straight-line cutting of large workpieces made of steel, cast iron and other metals with a rigid double post frame for stability.
Standard Equipment
1.Sawing machine
2.band saw blade*1
3.hydraulic automatic feeder
4.hydraulic workpiece clamping
5.cooling system
6.working light
7.small feeding frame
8.operation manual
Optional Parts
1.Inverter
2.Electric chip removal
3.Power failure protection
4.Saw band hydraulic tensioning
5.Non-electric feeding frame 2 meters
6.Electric feeding frame 2 meters
7.PLC (Japan Omron & Schneider Electric)
