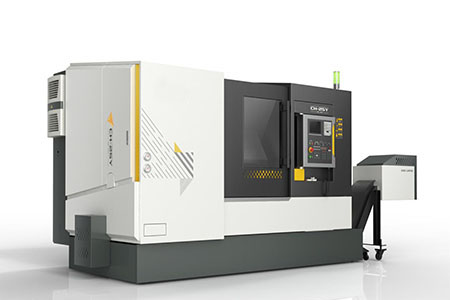

CH25Y Turning Milling Machine Center With Y-axis
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | Parameter | |
| capacity | max swing over bed | mm(in) | Φ500(19.685) |
| max swing over slide | mm(in) | Φ380(14.961) | |
| max turning length | mm(in) | 500(19.685) | |
| max turning diameter | mm(in) | Φ340(17.272) | |
| max bar diameter | mm(in) | Φ51(2) | |
| spindle | hydraulic chuck diameter | mm(in) | Φ210(8) |
| spindle nose | A2-6（GB/T5900.1） | ||
| spindle thru-hole | mm(in) | Φ62(2.441) | |
| spindle speed | r/min(rpm) | 40—4000 | |
| Main motor power(cont/30min) | KW(hp) | 11/15(15/20.4) | |
| sub-spindle | diameter of hydraulic chuck | mm(in) | Φ165(6″) solid(6.494) |
| spindle nose | A2-5（GB/T5900.1） | ||
| spindle bore | mm(in) | Φ50(1.969) | |
| spindle speed | r/min(rpm) | 50—5000 | |
| spindle power (con./30m) | KW(hp) | 15(20.4) | |
| Tailstock | Quill diameter/travel | mm(in) | Φ100/100(3.937/3.937) |
| Standard/live spindle structure center taper | MT No. | 5/4 | |
| Feed | Slant degree | DEG | 30°+30° |
| X/Y/Z-axis travel (with tailstock) | mm(in) | 200/120（-60 +60）/520
(7.874/4.724/20.079) |
|
| X/Y/Z/Z2-axis travel (with sub-spindle) | mm(in) | 190/100（-50 +50）/510/500(7.480/3.937/20.079/19.685) | |
| X/Y/Z/Z2 -axis rapid traverse | m/min (ipm) | 16/12/24/16
(630/472/944/630) |
|
| Turret | Number of stations | 12 | |
| Tool section (turning/boring) | mm(in) | 25×25/Φ40
(1×1/1.5) |
|
| Power of revolving tool motor(cont/30min) | KW (hp) | 3.7/5.5(5/7.5) | |
| Max speed of revolving tool | r/min(rpm) | 4000 | |
| C-axis | Min controlled angle | DEG | 0.001 |
| Max end milling diameter/tapping size | mm | Φ18/ M12 | |
| others | power source | kVA | 50 |
| Dimension (L×W×H)(non-coherer) | mm(in) | 3600×2010×2240
(141.7/79.1/88.2) |
|
| Cross weight | kg (lbs) | 6500((14,332) |
Product Description:
CH25Y turning and milling center is a multi-functional turning and milling center. The strength, dynamic and static stiffness of the machine tool, the mechanical structure, protection and cooling of the main components are all optimized. The machine tool has Y-axis and powerful milling functions. Most or all of the complex parts are processed under the installation, which is suitable for the processing of complex parts.
Features:
1) With 4-axis linkage function, it can process workpieces with complex shapes;
2) The combination of line rail and hard rail ensures the fast moving performance and heavy cutting performance of the machine tool;
3) The Y-axis stroke is large, which can meet the plane milling of larger workpieces;
4) 12-station BMT power tool holder, which can perform various processes such as turning, milling, drilling, and tapping;
5) Opposite double-spindle structure (optional), which can complete multi-process processing of parts with one clamping.
Applicable Industries:
Suitable for automobile, light industry, machinery and other industries.
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
