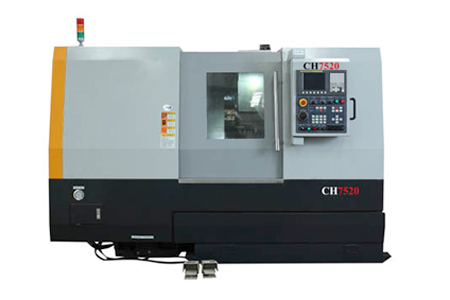

CH75 series CNC turning center
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | Data | |||||
| CH7516 | CH7520/
CH7520.1000 |
CH7525/
CH7525.500 |
CH7530/
CH7530.800 |
CH7550 | |||
| Capacity | Max, swing over bed | mm(in) | φ400（15.748） | φ500（19.685） | φ550（21.654） | φ670（26.378） | φ850（33.465） |
| Max. swing over slide | mm(in) | φ260（10.236） | φ320（12.598） | φ370（14.567） | φ470（18.504） | φ600（23.622） | |
| Max. turning dia. | mm(in) | φ250（9.843） | φ280（11.204） | φ320（12.598） | φ450（17.717） | φ600（23.622） | |
| Max. turning length | mm(in) | 340（13.386） | 490/960（19.291/37.795） | 950/450（37.402/17.717） | 1400/700（55.118/27.559） | 1900（74.803） | |
| Max. bar dia. | mm(in) | φ42（1.654） | φ51（2） | φ73（2.874） | φ90（3.543） | / | |
| Spindle | Spindle nose | A2-5 | A2-6 | A2-8 | A2-8 | A2-11 | |
| Spindle thru-hole | mm(in) | φ57(2.244) | φ62(2.441) | φ87(3.425) | φ105(4.134) | φ105(4.134) | |
| Chuck dia. | mm(in) | φ165(6″) | φ210(8″) | φ254(10″) | φ305(12″) | φ530(21″) | |
| Spindle speed | r/min(rpm) | 55-5500 | 40-4000 | 30-3000 | 25-2500 | L:8-530
H:30-1200 |
|
| Power of spindle motor(con./30min) | kW(hp) | 11/15(15/20.4) | 11/15(15/20.4) | 15/18.5(20.4/25) | 22/30(30/40.8) | 30/37(40.8/50.3) | |
| Tailstock | Quill dia. | mm(in) | φ70(2.756) | φ90(3.543) | φ100(3.937) | φ110(4.331) | φ150(5.906) |
| Quill movement | mm(in) | 80(3.150) | 100(3.937) | 100(3.937) | 150(5.906) | 150(5.906) | |
| Taper of center
(standard /live spindle structure) |
Morse taper
No.4/2 |
Morse taper
No.5/4 |
Morse taper
No.5/4 |
Morse taper
No.6/5 |
Morse taper
No.6/5 |
||
| Feed | Travel X/Z | mm(in) | 165/350
(6.496/13.780) |
210/510
(8.268/20.079) 210/980 (8.268/38.583) |
240/970
(9.449/38.189) 240/470 (9.449/18.504) |
325/1470
(12.795/57.874) 325/770 (12.795/30.315) |
385/1900
（15.157/74.803) |
| Rapid traverse X/Z | m/min（ipm） | 12/16
(472/630) |
12/16
(472/630) |
12/16
(472/630) |
12/16
(472/630) |
10/12
(393/472) |
|
| Turret | Number of stations | 12 | 12 | 12 | 12 | 12 | |
| Tool size
turning/boring |
mm | 20×20/φ32 | 25×25/φ40 | 25×25/φ40 | 32×25/φ50 | 25×25/Φ50 | |
| C-axis
(milling- turning) |
Max end milling dia. | mm | φ13 | φ18 | φ20 | φ25 | φ25 |
| Max tapping dia. | mm | M10 | M12 | M16 | M18 | M18 | |
| Min controlled angle | deg | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
| Revolving tool motor | kW | 2.2/3.7
(3/5) |
3.7/5.5
(5/7.5) |
3.7/5.5
(5/7.5) |
5.5/7.5
(7.5/10) |
5.5/7.5
(7.5/10) |
|
| Revolving tool speed | r/min(rpm) | 80-6000 | 40-4000 | 40-4000 | 30-3000 | 30-3000 | |
| Others | Slant angle of bed | 45° | 45° | 45° | 60° | 60° | |
| Power capacity | kVA | 35 | 35 | 50 | 60 | 75 | |
| Machine dimension(L×W×H) | mm(in) | 2370×1670×1970
（93.3×65.7×77.6） |
2860×1830×2020
/ 3790×1850×2050 （112.6×72×79.5 /149.2×72.8×80.7） |
3790×1850×2050
/ 2980×1850×2050 （149.2×72.8×80.7 /117.3×72.8×80.7） |
4820×2280×2180
/ 3820×2100×2150 （189.8×89.8×86.9 /150.4×82.7×84.6） |
5870×2683×2649
（231×105.6×104.3） |
|
| Machine weight | kg（lbs） | 3000（6,615） | 4500/5000
(9,923/11,025) |
5000/4800
(11,025/10,584) |
9730/8330
(21,455/18,368) |
16500
(36,383) |
|
Introduction
CH75 series CNC turning center can perform drilling, milling and tapping functions. With integral machine bed and slant bed guide ways, through-hole spindle driven by powerful AC main motor and dampening design, bearings of main spindle and offeeding screw with low noise during operation, The 12-station power turret indexes fast continuously in bi-direction.
The machine can be controlled by FANUC 0i-TF, Siemens 828D or other control systems.
