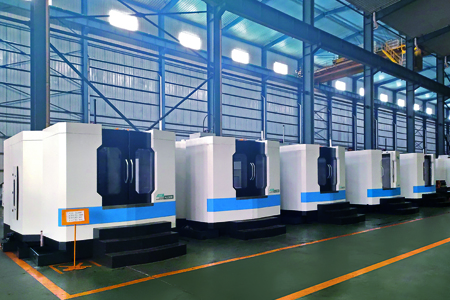

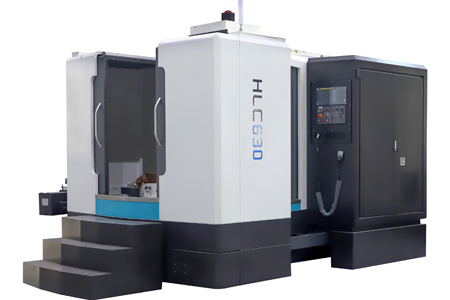

HLC Series Horizontal Machining Center
Table Size(L*W) : 500*600 - 1500*1500mm
Max Loading Weight : 0.5 - 8ton
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model Parameters | HLC500 | HLC500S | HLC630 | HLC630S |
| Table Size (mm) | 500x6C0 | 500×600 | 630×630 | 630×700 |
| Max Loading Weight (kg) | 500 | 600 | 1500 | 950 |
| Table dividing (°) | 1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
| Number-width x distance (mm) | 6x14x80 | 6x14x80 | 5x18x125 | 5x18x125 |
| XY/Z Travel (mm) | 800/600/600 | 800/6201600 | 1000/800/900 | 1050/750/900 |
| Rapid speed(X /Y /Z) m/min | 20/15/20 | 20/15/20 | 20/15/20 | 20/15/20 |
| X Y Z cutting speed (mm/min) | 1-8000 | 1-8000 | 1-8000 | 1-8000 |
| Spindle center line to table surface (mm) | 50-650 | 40-640 | 0-800 | 120-870 |
| Spindle nose to table center (mm) | 150-750 | 185~785(BT40)
158-758(BT50) |
200~1100 | 130~1030 |
| Spindle speed ( rpm ) | 6000 | 6000/8000 | 6000 | 6000 |
| Spindle power ( kw) | 11/15 | 11/15 | 15/18.5 | 15/18.5 |
| Tool holder type | BT50 | BT50 | BT50 | BT5O |
| Pull stud | BT50~45° | BT40-45°
BT50~45° |
BT50-45° | BT50-45° |
| ATC capacity hold | 24;32/40 | 24;32/40 | 24;32/40 | 24;32/40 |
| Tool change time ( s ) | 3.5 | 3.5 | 3.5 | 3.5 |
| Max tool weight (kg) | 25 | 25 | 25 | 25 |
| Max diameter of tool (mm) | Φ110/Φ220 | Φ110/Φ220 | Φ110/Φ220 | Φ110/Φ220 |
| Air pressure (MPa) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Machine weight (kg) | 10800 | 121500 | 13000 | 13500 |
| Machine overall size ( L x W x H ) mm | 3800x 3000x 3020 | 3800x 2800x 2900 | 4300x 3150x 3800 | 4300x 3150x 3600 |
| HLC800 | HLC1000 | HLC1000S | HLC1250 | HLC1500 |
| 800×800 | 1000×1000 | 1000×1000 | 1250×1250 | 1500×1500 |
| 2000/3000 | 5000 | 1500 | 7000/5000 | 8000 |
| 1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
| 5x22x160 | 7x22x130 | 7x22x130 | 7x22x150 | 5x28x275 |
| 1200/900/900 | 1800/1400/1400 | 1600/1000/1000 | 1800/1400/1400 | 2500/1500/2000 |
| 20/15/20 | 16/12/16 | 16/12/16 | 16/12/16 | 9/9/9 |
| 1-8000 | 1-~5000 | 1-5000 | 1-5000 | 1-5000 |
| 0-900 | 0~1400 | 120~1120 | 0~1400 | 50~1550 |
| 200~1100 | 250~1650 | 200~1200 | 250~1650 | 610~2610 |
| 6000 | 6000 | 6000 | 6000 | 6000 |
| 15/18.5 | 18.5/22 | 18.5/22 | 18.5/22 | 18.5/22 |
| BT50 | BT50 | BT50 | BT50 | BT50 |
| BT50~45° | BT50~45° | BT50~45° | BT50~45° | BT50~45° |
| 24;32/40 | 30;3240 | 30;3240 | 30;3240 | 30;3240 |
| 3.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| 25 | 25 | 25 | 25 | 25 |
| Φ110/Φ220 | Φ125/Φ240 | Φ125/Φ240 | Φ125/Φ240 | Φ125/Φ240 |
| 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| 14000 | 26000 | 20000 | 28000 | 34000 |
| 4300x3150x3900 | 7400x 5900x 3820 | 6400x 5500x 3820 | 7400x5900x 3820 | 8200x6900x5000 |
| Model Parameters | HLC630SAPC | HLC630APC |
| Table Size (mm) | 630×700 | 630×630 |
| Table gty | 2 | 2 |
| Table dividing type (°) | 1°x360/0.001° | 1°x360/0.001° |
| Max Loading Weight (kg) | 950×2 | 800×2 |
| Number-width x distance (mm) | 5x18x125 | 5x18x125 |
| Max workpiece size (mm) | Φ960×800 | Φ1000×900 |
| 3 axis travel(X/Y/Z) (mm) | 1050/750/900 | 1100/800/1100 |
| 3axis feeding speed(m/min) | 20 | 24 |
| Spindle center line to table surface (mm) | 0~750 | 50~850 |
| Spindle nose to table center (mm) | 130~1030 | 125~1225 |
| Spindie taper | BT50 | BT50 |
| Max. spindle speed (R/MIN) | 6000 | 6000 |
| Main motor power (KW) | 15/18.5 | 15/18.5 |
| ATC Type, Tool capacity | disc type 30T(optional: chain type 32T/40T) | |
| 3 aixs positioning accuracy/Repeated positioning accuracy (mm) | 0.018/0.010 | 0.015/0.008 |
| Table dividing accuracy/Repeated accuracy | 15/5 | 10/3 |
Product Features:
HLC series The base, column, slide, and headstock of this machine tool are made of high-quality cast iron HT300. The main foundation is designed with dense tendons for large sections, and finite element analysis is used to ensure high bending and torsional rigidity, so that it has a high natural frequency and improved vibration resistance.
The three-axis linear guide rail meets technical performance for high speeds. And high precision requirements. After secondary aging treatment, internal stress is eliminated. It has the characteristics of good overall rigidity, good vibration absorption and seismic performance.
It is widely used in the processing of box parts, shell parts, and disc-shaped parts in the military, automobile, mold, and machinery manufacturing industries. After a single clamping, the parts can be processed in multiple processes such as milling, boring, drilling, expanding, reaming, tapping, etc., with high precision, high automation, high reliability, high degree of mechanical and electrical integration, simple operation, beautiful overall appearance .
Product Description
HLC series horizontal machining center as a whole continued HC500A, HC630A, HC800A hard rails lying machine tool structure, using inverted T shape structure, one-piece base, before bed one-piece structure with the base, the linear coordinate guide rail are overloaded high precision roller contour line, the high speed machine tool feed ltte vibration, low speed feed without crawling, can carry heavy load cutting, and has a high precision stability and dynamic response.
The machine can choose FANUC and Siemens system, rotary table, ATC, spindle, rail, screw are Taiwan brands.
| Number | Standard Equipment | Number | Optional Equipment |
| 1 | 24 tool ATC | 1 | 32 Arm chian type ATC |
| 2 | Spindle air curtain dust control system | 2 | 40 Arm chian type ATC |
| 3 | Workpiece cooling system | 3 | Central outlet of spindle (equipped with high pressure cooling device) |
| 4 | Equal division CNC rotary table | 4 | ZF gearbox drive |
| 5 | Automatic lubrication system | 5 | Spindle oil cooling device |
| 6 | Spiral chip removal device | 6 | Arbitrary indexing CNC rotary table |
| 7 | Chain-plate type chip lifter | 7 | Scraper lift chip remover |
| 8 | Integral shield | 8 | 3 axis linear scale |
| 9 | The toolkit | 9 | Tool detection device |
| 10 | Anchor bolt and pad iron | 10 | Workpiece detection device |
| 11 | Door opening protection (door protection) | ||
| 12 | Portable chip air gun | ||
| 13 | Machine cleaning water tank | ||
| 14 | Simple oil and water separator |
