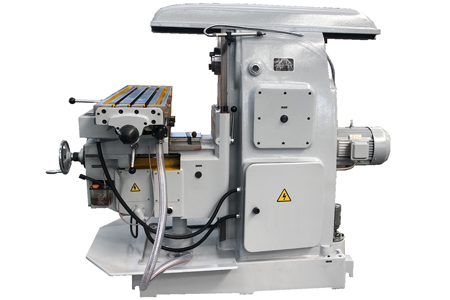

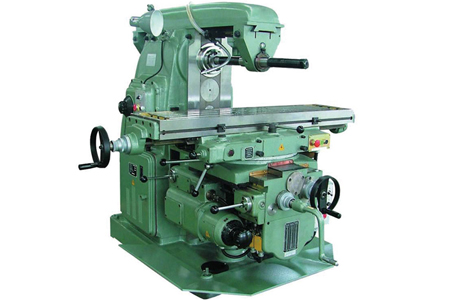

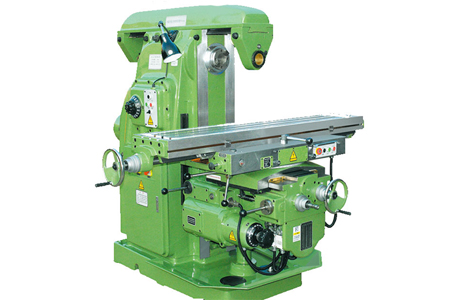

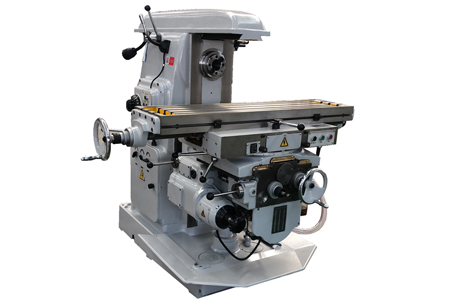

X6132 X6140 Horizontal lifting table milling machine
Table size :
1325mmx320mm(52"x13")
1600mmx320mm(63"x13")
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Units | X6132 | X6132B | X6132BH | X6140 |
| Table size | mm(“) | 1325×320 (52×13) |
1600×320 (63×13) |
1600×320 (63×13) |
1700×400 2000×400(option) 2200×400(option) |
| Table load | kg | 500 | 500 | 500 | 800 |
| Table travel | mm | 700/680 255/240 320/300 |
900/880 255/240 320/300 |
900/880 255/240 410/390 |
900/880 315/300 350/330 |
| T slot (number-width*pitch) | mm | 3-18*70 | 3-18*70 | 3-18*70 | 3-18*90 |
| Table feed range | mm /min | XY:23.5-1180 Z:8-394 |
XY:23.5-1180 Z:8-394 |
XY:23.5-1180 Z:8-394 |
XY:23.5-1180 Z:8-394 |
| Table rapid traverse | mm /min | XY:2300 Z:770 |
XY:2300 Z:770 |
XY:2300 Z:770 |
XY:2300 Z:770 |
| Spindle taper | _ _ | ISO50 7:24 | ISO50 7:24 | ISO50 7:24 | ISO50 7:24 |
| Spindle speed range | RPM(Steps) | 30-1500 (18 steps) |
30-1500 (18 steps) |
30-1500 (18 steps) |
30-1500 (18 steps) |
| Swivel angle of table | ° | ±45 | ±45 | ±45 | ±45 |
| Distance between spindle axis and table surface | mm | 30-350 | 30-350 | 30-440 | 30-380 |
| Main motor power | kw | 7.5 | 7.5 | 7.5 | 11 |
| Feed motor power | kw | 2.2 | 3 | 3 | 3 |
| Machine weight | kg | 2700/3000 | 2800/3100 | 2900/3200 | 3950/4200 |
| overall dimension | mm | 2300*1770*1700 | 2600*1770*1700 | 2600*1770*1900 | 2600*1770*1900 |
Product Detail
This series of universal lift table milling machine is easy to operate and has reliable performance. It is widely used in various machining departments to process various planes, grooves, gears, etc. Equipped with milling machine accessories such as universal milling head, circular table, indexing head, etc., it can further expand the use range of the machine tool.
Features
1. Robust construction and heavy duty design.
2.The main driving parts are made of alloy steel.
3.Relatively moving parts between machine body and guide rail is PVC laminating treated.
4.Sufficient power and large speed range which make full use of the efficiency of tools.
5.Can be equipped with hard alloy tools to mill with fast speed.
6. The spindle is equipped with impulse device for easier speed adjustment.
7.Universal milling head,round working table,dividing head and DRO are for option.
Standard Equipment
End mill mandrel
Mandrel wrench
Morse taper intermediate sleeve
Milling machine tie rod
Various wrenches
Oil gun
Anchor screw
Block gasket
Tool holder assembly
Optional Equipment
