Conventional Milling Machine

X6332 / X6336 Series Universal Turret Milling Machine with horizontal

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Items X6336

X6332

X6336C

X6332C

X6336CL

X6332CL

Working area
Worktable size (L×W) 1325×360/320mm 1325×360/320mm 1600×360/320mm
T slot (Width x No. x pitch) 18x3x80mm
Max. load of table 350kg
±45°table rotation optional
Distance from horizontal spindle center to worktable surface 20-470mm
Distance from spindle nose to table surface 200-650mm
Travels
Worktable longitudinal travel (X) 750mm 1100mm 1300mm
Worktable cross travel (Y) 320mm(with DRO: 300mm)
Worktable vertical travel (Z) 450mm(with rotary worktable:400mm)
Ram travel 550mm
Spindle
Turret head spindle taper 7:24, ISO40
Turret head spindle speed 16steps

66-5440rpm

Turret head motor 5HP
Turret head swivel angle L & R 45°
Turret head quill travel 127mm
Horizontal spindle taper 7:24, ISO50
Horizontal spindle speed 12steps

60-1800rpm

Horizontal spindle motor 5.5kw
Feed
Rapid feed (X/Y/Z) 1200/800/600mm/min
Feed range (X) 30-750mm/min
Feed range (Y) 20-500mm/min
Feed range (Z) 15-375mm/min
Servo motor torque 15Nm
Others
Machine size (L×W×H) 1800x2100x2500mm 2245x2100x2500mm 2520x2100x2500mm
Net weight 2710kg 2780kg 2850kg

Equipment Introductions

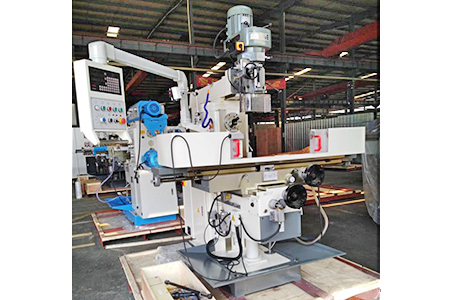

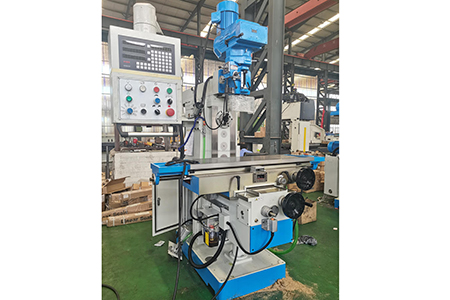

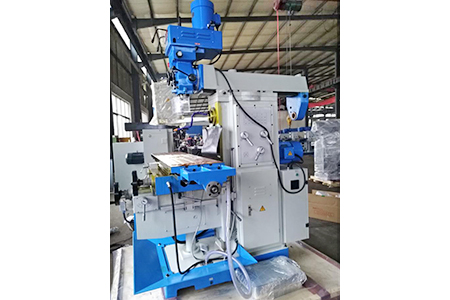

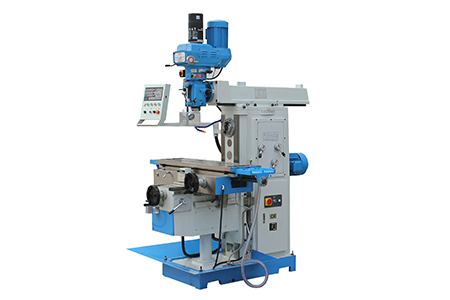

Model:X6332 ,X6336 series Universal Turret Milling Machine with horizontal and vertical milling spindle which can be used as both vertical and horizontal milling function. It’s a mature product mainly exported by ANTISHICNC company. The whole machine has a compact structure, beautiful and pleasant appearance. Its suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.

Product Details
•Taiwan brand high speed turret head, left and right 45°swivel, with milling and drilling functions
•extra gearbox driven horizontal spindle, for flexible operation
•Coolant system, lubrication system, chip tray are included
•Work table feed is driven by servo motor, good accuracy, low noise, and easy to operate. One lever can select table feed directions
•Brief design of control panel, for easy operation (DRO is optional)
•±45°(left & right) swivel table is hot sale (optional)

Standard Equipment:
Middle sleeve ISO50/MS4
Horizontal arbor assembly Ф27 & Ф32
Machine vise 6”
Draw bar
Lifting crank
Working lamp
Coolant system
Tool & tool box
Operator manual

Optional accessories:(need extra cost)
3-axis Digital Read Out
Dividing head 160mm (MANUAL)
Rotary table 250mm
Machine vise 6”
58 pcs Clamping kits
New design aluminum hang arm
±45° rotary worktable
Spindle protection cover
Worktable protection cover
LED work lamp
Automatic centralized oil lubrication
Schneider electric components
Pneumatic tool clamping
