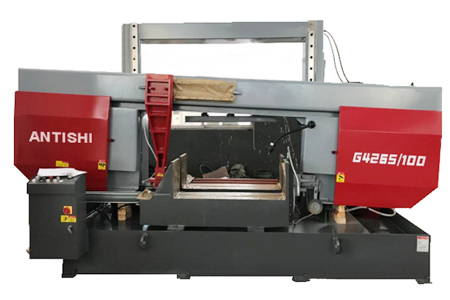

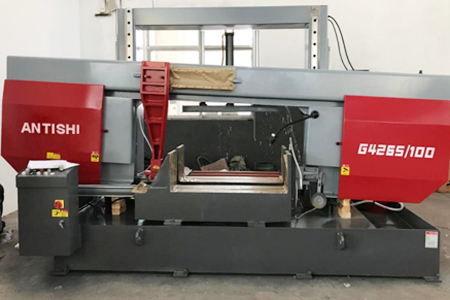

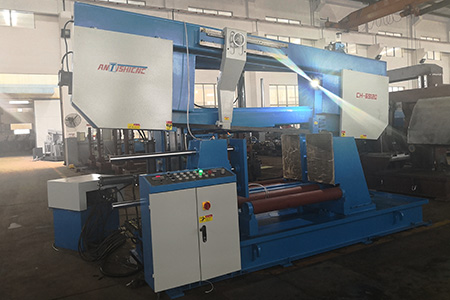

Gantry Column Structure Horizontal Straight Cutting Bandsaws CH-65120
Round : 650mm
Quadrate : 650×1250 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications| Model | CH-65120 (G4265/120) |
| Cutting capacity 0° (round) | 650 mm |
| Cutting capacity 0° (square) | 650×1250 mm |
| Saw blade Speed | 20 to 80 m/min (INVERTER) |
| Saw blade Size | 54×1.6 mm |
| Saw blade Guides | Carbide and bearing blade guides |
| Saw blade Cleaning | Wire brush & flood coolant |
| Saw blade Tension | Hydraulic |
| Blade | 7.5 kw |
| Hydraulic | 3.75 kw |
| Coolant | 0.09 kw |
| Work feeding | Power feeding(ROLLER) |
| Work Vice | Hydraulic |
| Transmission | Gear Reducer |
| Machine Size(L×W×H) | 40HQ |
Product Details
The machine tool adopts a gantry structure to ensure the reliability, stability and advancement of the structure. The functions of each part have sufficient margins, and at the same time, it also ensures high-quality sawing accuracy.
It is mainly used for sawing various medium and large sizes of ferrous and non-ferrous metal bars and plates. It has the advantages of high cutting efficiency, energy saving, narrow saw mouth, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
Product Features
Hydraulically controlled sawing feed and vise clamping;
High-precision linear guide rail guide, high sawing precision;

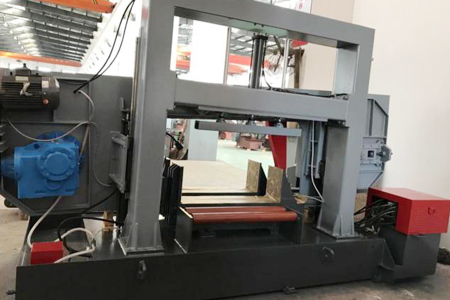

Gantry type structure, good rigidity, reliable and stable structure;
Double oil cylinder control, stable feeding;
Motorized feeding roller table and receiving roller table
Hydraulic tension of saw belt, frequency conversion control of cutting speed, optional chip cleaning device.
The main drive reducer adopts bevel helical gear reducer, with smooth transmission without impact, high transmission efficiency and long service life.
The hydraulic system adopts an independent hydraulic station, which is convenient for maintenance
Standard Equipment
Blade cleaning brush.
Working light
Saw frame height selector gauge
One set of tools with tool box
1.5M power roller table
Hydraulic blade tension
Operating tools
Operator manual
Optional Equipment
| NO. | Spare parts Description | Function |
| 1 | Spiral Chip Conveyor | Remove the cutting chips |
| 2 | 2 meters detachable rack | Feed |
| 3 | Tool setting light | Lighting use |
| 4 | Pressure reducing valve | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 5 | One piece of bi-metal saw blade. |
