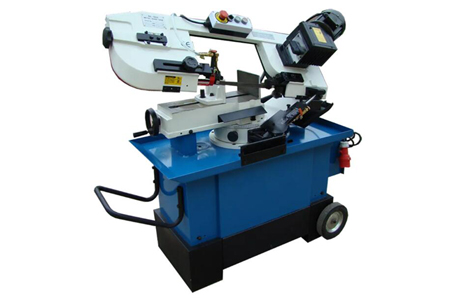

Horizontal Mitre Band Saw Machine BS-180G
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | BS-180G |
| Cut Circular @90° | 180mm(7”) |
| Cut Rectangular @90° | 260x180mm (10”x7”) |
| Cut Circular @45° | 105mm(4”) |
| Cut Rectangular @45° | 120x105mm (4.75”x4”) |
| Blade speed @50Hz | 39, 66, 82 MPM |
| Blade speed @60Hz | 34, 55, 66 MPM |
| Blade size | 20X0.9X2362mm |
| Motor power | 0.75/1.1kw 1/1.5HP(3PH) |
| Drive | Gear |
| Packing size | 130x56x112 cm |
| N.W./G.W. | 175/222 kg |
Features:
1. CE standard metal cutting bandsaw
2. 180mm round and 260×180 rectangular cutting capacity at 90°
3. Gear drive, 3 cutting speed
4. Miter saw bow, max to 45°
5. Saw bow swivel not need to move heavy material on table.
6. Wheels on the stand make the saw easy to move different workplace
