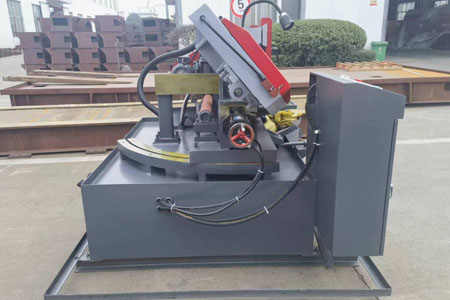

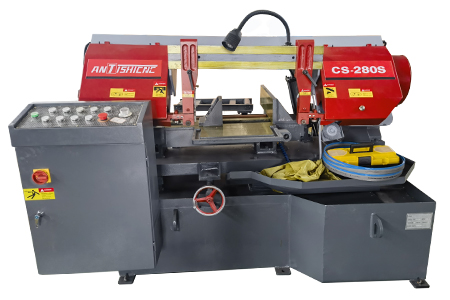

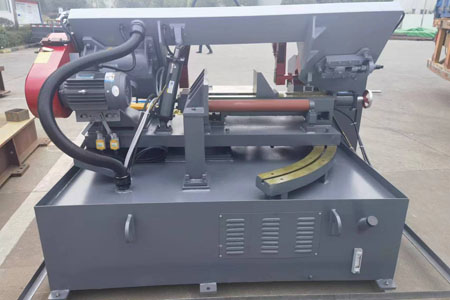

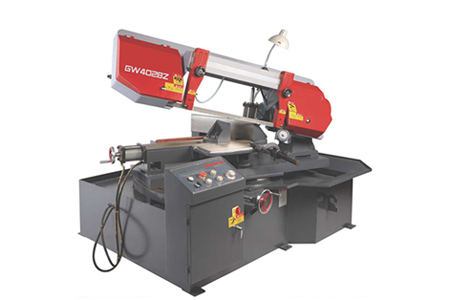

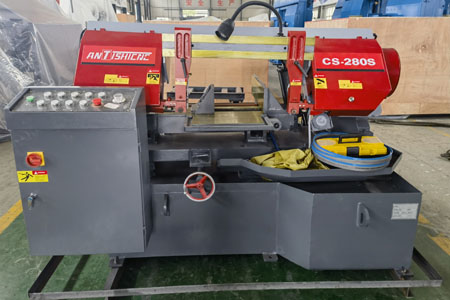

Horizontal Scissor Structure Miter Metal Band Saw Machine CS-280S(GW4028Z)
Rectangular @90° : 200*400 mm
Rectangular @45° : 200*220 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical SPEC| Model | GW4028Z(CS-280S） | |
| 90° Circular cutting capacity | 280 mm | |
| 90° Rectangular cutting capacity | 200*400 mm | |
| 60° Circular cutting capacity | N/A | |
| 60° Rectangular cutting capacity | N/A | |
| 45° Circular cutting capacity | 280 mm | |
| 45° Rectangular cutting size | 200*220 mm | |
| Blade Speed m/min | 25/35/45/60/80 | |
| Blade size(mm) | 34×1.1×3860 mm | |
| Saw blade tension type | Manual | |
| Main motor power | 3 kw | |
| Feeding method | Manual | |
| Angle rotate driving type | Manual | |
| Machine weight | kg | 1500 kg |
| Overall dimension | mm | 2020x1520x1300 mm |
Product Details
This saw machine is mainly used for angle machining of profiles. It has the characteristics of high cutting efficiency, energy saving, narrow kerf, energy saving and material saving, and simple operation. This machine tool adopts scissor structure to ensure structural reliability, stability and advancement, as well as high-quality sawing accuracy.
Standard Equipment of the saw machine
Main Saw machine body

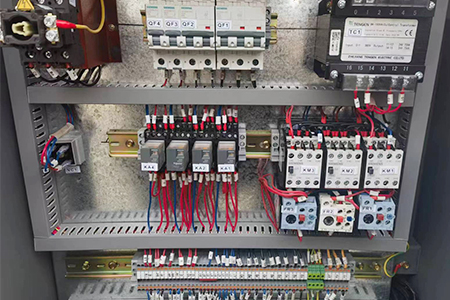

Hydraulic/Electrical control system
Clamping system
Saw blade tension system
Angle rotation device
Cooling/Sweeping system
Operator manual
Optional Parts and Optional Equipment
| NO. | Spare parts Description | Specification | Function |
| 1 | detachable rack | 2 meter | Take the load of materials |
| 2 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 3 | Saw blades | 34×1.1×3860 mm | Consumable cutting parts |
| 4 | Hydraulic saw blade tension | Hydraulic Control | Hydraulic tension |
| 5 | Laser projector | GW4028Z(CS-280S) | Project a red line to the worktable for easy blade setting |
