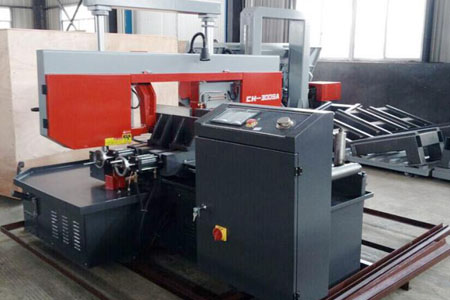

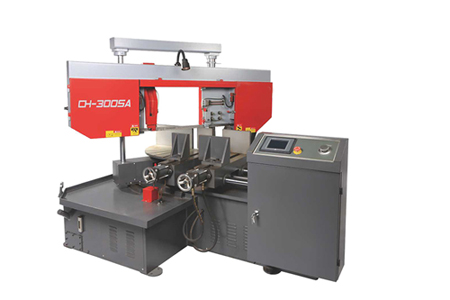

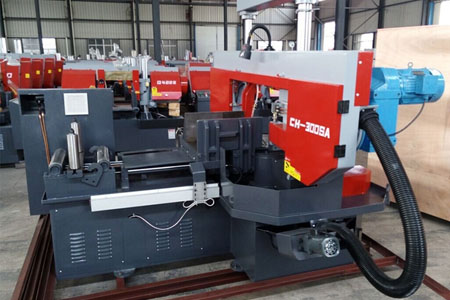

Automatic Horizontal Rotary Angel Metal Band Saw Machine CH-300SA
Rectangular @ 90° : 300*350mm
Rectangular @ 45° : 180*300mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical SPEC| Model | CH-300SA | |
| 90° Circular cutting capacity | 300mm | |
| 90° Rectangular cutting capacity | 300*350mm | |
| 60° Circular cutting capacity | N/A | |
| 60° Rectangular cutting capacity | N/A | |
| 45° Circular cutting capacity | 230mm | |
| 45° Rectangular cutting size | 180*300mm | |
| Blade Speed m/min | 20~80(inverter) | |
| Blade size(mm) | 34×1.1×4550 | |
| Saw blade tension type | Manual | |
| Main motor power | 3kw | |
| Feeding method | Hydrualic | |
| Angle rotate driving type | Hydrualic/Encoder | |
| Machine weight | kg | 2190kg |
| Overall dimension | mm | 2300x2100x1705 |
Product Details
This machine is mainly used for sawing small and medium-sized round pipes, square steel pipes, profiles, etc. In addition to 0° sawing, it also has 0-45° rotary sawing.
The feeding adopts hydraulic automatic feeding, automatic length fixing, PLC programmable control, touch screen operation, and grating ruler detects the sawing length. It has the advantages of narrow sawing, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
Standard Equipment of the saw machine
Main Saw machine body
Hydraulic system
Saw frame automatic adjustment equipment
Feeding device
Angle rotation device
Cooling system
Spiral chip conveyor
Operator manual
Optional Parts and Optional Equipment
| NO. | Spare parts Description | Specification | Function |
| 1 | detachable rack | 2 meter | Take the load of materials |
| 2 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 3 | Saw blades | 34×1.1×4550 mm | Consumable cutting parts |
