Horizontal Mitre Cutting Bandsaws

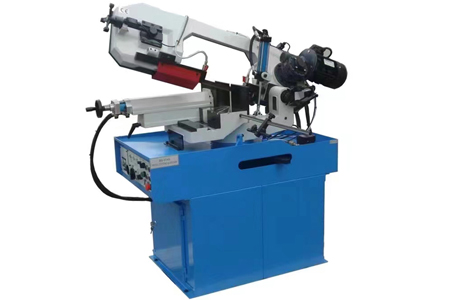

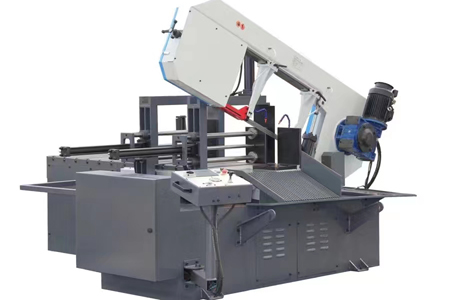

Horizontal Mitre Band Saw Machine BS-460G

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Model BS-460G
Circular @ 90° 330mm (13″)
Rectangular @ 90° 460x250mm (18″x9.8″)
Circular @ 60° (right) 205mm (8″)
Rectangular @ 60° (right) 205x250mm (8″x9.8″)
Circular @ 45° (Left & right) 305mm (12″)
Rectangular @ 45° (Left & right) 305x250mm (12″x9.8″)
Blade Speed @50HZ 40/80 MPM
Blade Speed @60HZ 48/96 MPM
Blade Size 27×0.9x3960mm
Motor 1.5/2.2 kW
Drive Gear
Packing Size 2310x1070x1630 MM
N.W./G.W. 750/830 kg

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
1. Two speed motor, two speed selection;
2. Hydraulic clamping vice
3.CE safety standards (interlock switch on blade cover)

The main performance characteristics:
1. Saw bow or so gyration;
2. Electric cooling system;
3. Saw bow rotary shaft use a conical bearing, to maintain the accuracy of sawing;
4. Saw blade off discon machine automatically cut off power, protect the safety of the operator
5.Safety switch on blade tensioning device
6.Carbide blade guides and double blade guide bearings

Standard Equipment
1 saw blade
Base
operator instructions
operating tools

Optional Equipment
Quick-action vise
hydraulic cylinder for saw frame
Saw Blade
Saw Band Clamping
Bi-Metallic Bandsaw Blade
Coolant Concentrate 5 Ltr.
coolant system

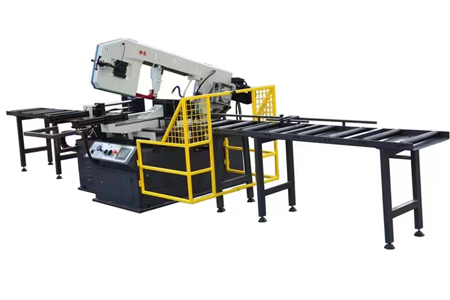

Infeed roller table(1/2/3 meter )
Outfeed roller table with stopper(1/2/3 meter )
Automatic band break control
Bundle vise
Hydraulic part clamping
Chip wiper
