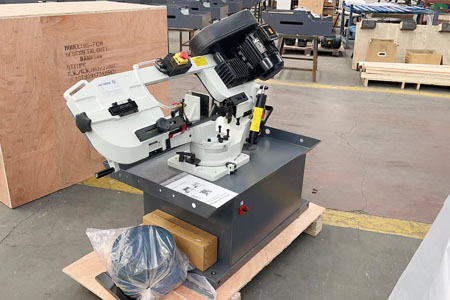

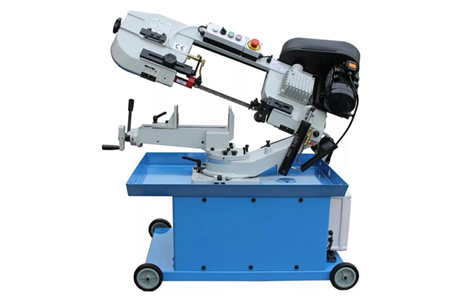

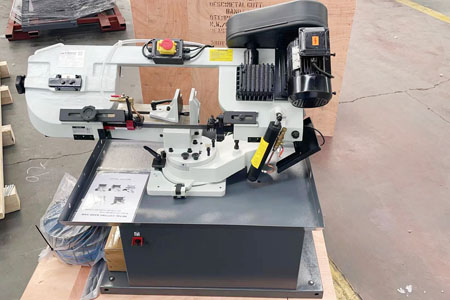

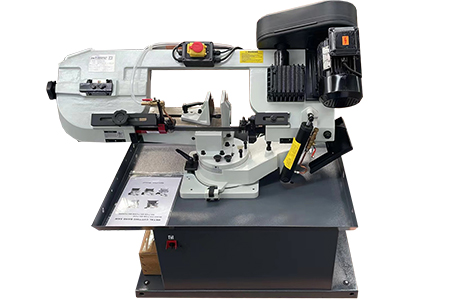

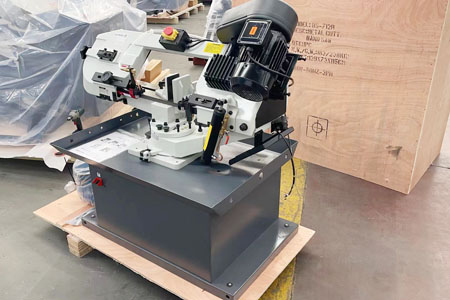

Horizontal Mitre Band Saw Machine BS-712R
Rectangular @90° : 178x210mm
Rectangular @45° : 85x140mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | BS-712R |
| Circular @ 90° | 178mm(7”) |
| Rectangular @90° | 178x210mm(7”x8.25”) |
| Circular @45° | 127mm(5”) |
| Rectangular @45° | 85x140mm (3.33”x5.5”) |
| Blade speed @60Hz | 27,41,59,78 MPM |
| Blade speed @50Hz | 22,34,49,64 MPM |
| Blade size | 20×0.9x2362mm |
| Motor power | 750W 1HP(3PH), 1.1KW 1.5HP(1PH) |
| Drive | V-belt |
| Packing size | 129x73x115cm |
| N.W./G.W. | 185/238 kg |
Features:
1.7” Round and 7”x8.25” Rectangular cutting capacity @90°
2.Miter bow head up to 45°
3.Belt drive to achieve 4 cutting speed
4.Coolant system for maximum cutting efficiency
5.Vertical cutting available (need extra table for vertical cutting)
6.Single phase for home use, and 3 phase for industrial workshop usage
7.Moves on wheels for portability.

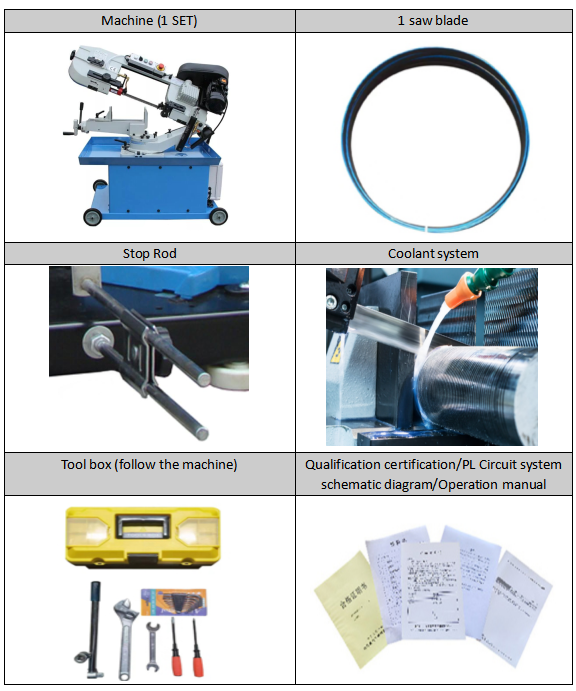

Standard Equipment
