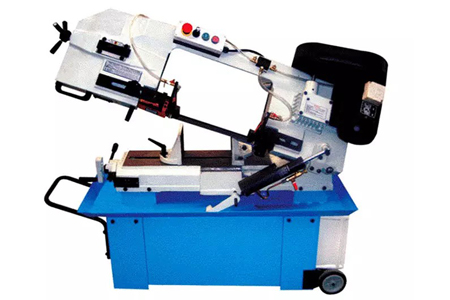

Horizontal Mitre Band Saw Machine BS-916B
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
| Model | BS-916B | ||
| Machining capacity | Round steel@90° | 229mm(9″) | |
| Square steel@90° | 127×405mm(5″×16″) | ||
| Round steel@60° | — | ||
| Square steel@60° | — | ||
| Round steel@45° | 150mm(6”) | ||
| Square steel@45° | 150×190mm(6″×7.5″) | ||
| Saw cutting speeds | @ 60HZ | 35. 60.88.115MPM | |
| @ 50HZ | 26.50.73.95MPM | ||
| Saw blade size | 27×0.9×3090mm | ||
| Motor power | 1.1W (1.5PH) | ||
| Drive | V-belt | ||
| Package size | 176×83×115cm | ||
| NW/GW | 280/340kg | ||
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.Cuts almost anything that you can throw at it, including many different shapes and profiles of metal
The main performance characteristics：
1. 9” round maximum capacity at 90°.
2. Saw frame miter up to 45 degrees.
3. Hydraulic descent pressure controlled by a panel located on top of the bow.
4. Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe.
5. Comes standard with a flood coolant system (which some companies charge extra for) to wash away metal chips, help blades last longer, and reduce expenses.
6. Fully-welded steel base minimizes vibrations to deliver clean, accurate cuts and adds structural strength to the machine.

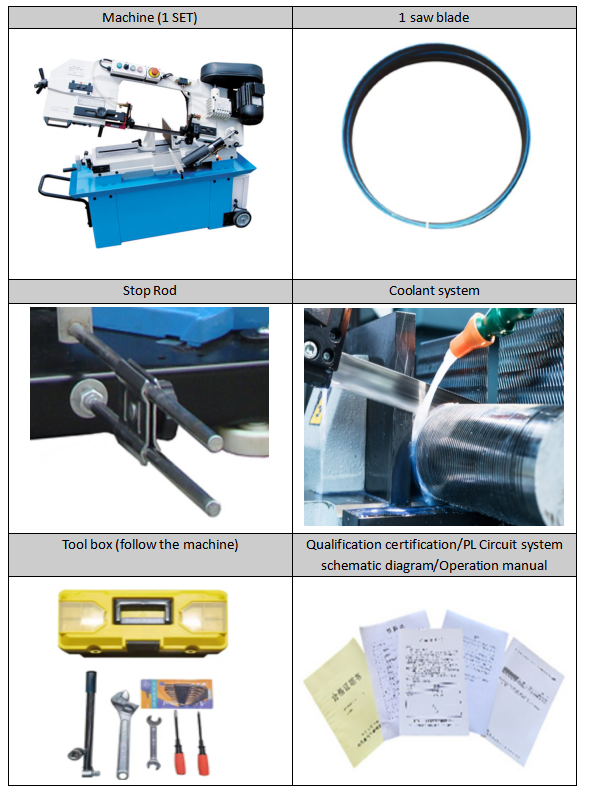

Standard Equipment
1 saw blade
Base
operator instructions
operating tools
Optional Equipment
Quick-action vise
hydraulic cylinder for saw frame
Saw Blade
Saw Band Clamping
Bi-Metallic Bandsaw Blade
Coolant Concentrate 5 Ltr.
coolant system
Infeed roller table(1/2/3 meter )
Outfeed roller table with stopper(1/2/3 meter )
Automatic band break control
Bundle vise
Hydraulic part clamping
Chip wiper
