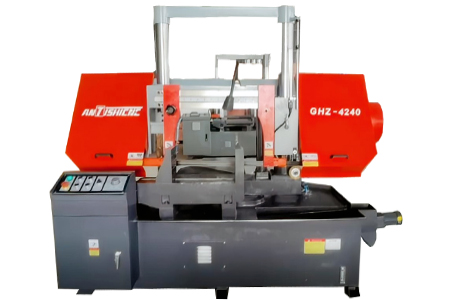

GHZ4240 Rotary Angle Horizontal Band Saw Cutting Machine
Max. cutting size: 400*400mm
Saw blade speed: 27/45/69m/min
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications| Model | GHZ4240 |
| Max. cutting size(mm) | 400*400 (45°: 400*300) |
| Saw blade speed (m/min) | 27/45/69 |
| Saw blade specifications(mm) | 5000*41*1.3 |
| Feed rate | CVT |
| Main motor power | 4kw |
| Hydraulic motor power | 0.75kw |
| Water pump motor power | 0.09kw |
| Clamping method (Vice) | Hydraulic tightening |
| Transfer method | Turbine shaft |
| Package Size | 2500*1500*2000mm |
| Weight | 1400kg |
GHZ4240 Rotary Angle Horizontal Band Saw Cutting Machine Product Introduction :
Product Description
GH series metal band sawing machines are mainly used for low alloy steel, high alloy steel, special alloy steel and stainless steel. According to the usage, it is divided into manual type (economical manual feeding and manual cutting materials) and automatic type. According to the automation program using the controller, it can be divided into manual type (semi-automatic manual feeding) and fully automatic type (automatic feeding and automatic cutting). According to the requirements of cutting angle, it can be divided into angle sawing machine (can cut at 90 degrees and 45 degrees) and non-angle sawing machine (90 degrees vertical cutting).
Standard parts
1.Sawing machine
2.band saw blade *1
3.hydraulic workpiece clamping
4.cooling system
5.work lights
6.small feeding frame
7.operating manual
Optional Parts
1.Inverter
2.Hydraulic press down
3.Electric chip removal
4.Rapid descent
5.Broken belt protection
6.Power failure protection
7.Saw band hydraulic tensioning
8.Non-electric feeding frame 2 meters
9.Electric feeding frame 2 meters
