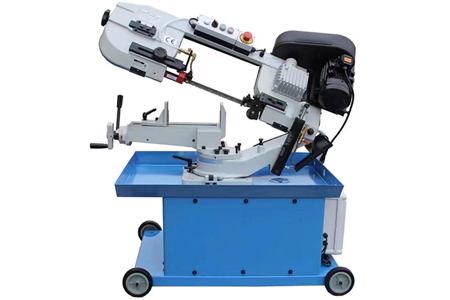

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
1. Single Phase motor , you can use it almost anywhere.
2. Cutting capacity of 9” OD round and 7’ x 12” rectangle at 90°.
3. Miters up to 45°; simply loosen the vise and rotate it to the proper angle.
4. Cast iron saw head and bow minimize vibrations, ensuring clean, accurate cuts.
5. Adjustable blade guides attached to the saw head, with 8 sealed ball bearings, help align the blade and increase its lifetime of use.
6. Head and bow are made from heavy cast iron, precisely machined to exacting tolerances, maintaining proper alignment during the cutting process.
7. Moves on wheels for portability.

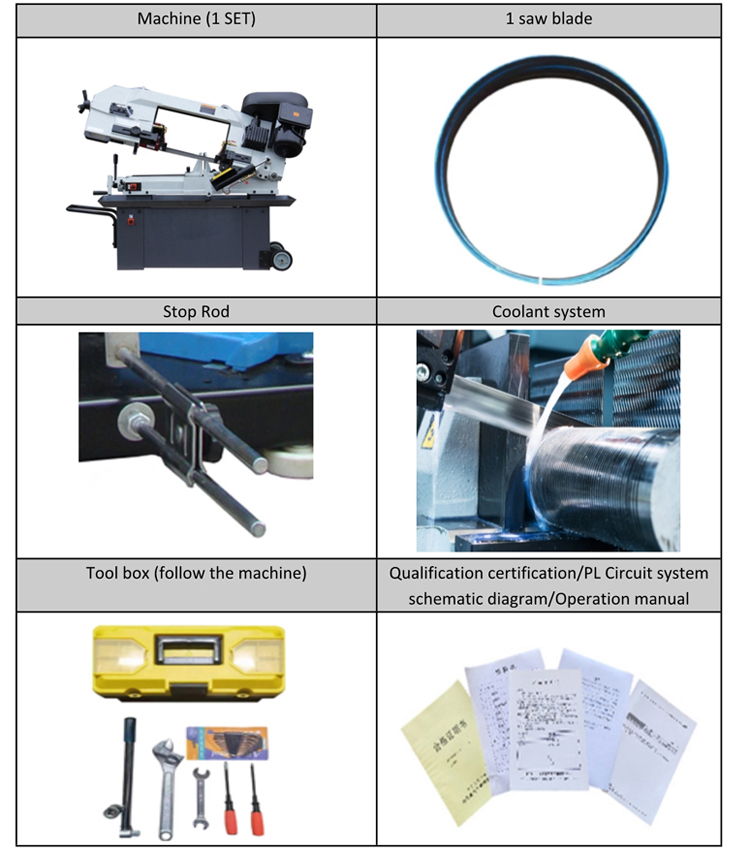

8. Includes chip removal brush and flood coolant system to keep the saw running smoothly for many years.
The main performance characteristics：
1. Maximum capability 9″
2. The belt gear of it has four cutting speeds
3. The quick clamps can be rotated from 0° to 45°
4. High-capacity due to controlled by motor
5. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
6 Has a sizing device (the machine will automatically stop after sawing materials)
7. With power break protection device, machine will power off automatically when the rear protective cover is opened
8. With cooling system, can prolong the service life of saw blade and improve the precision of work piece
9. Equipped with a block feeder (with fixed sawing length)
12.High-capacity due to controlled by motor
13. quick clamps can be rotated
Technical Parameter :
|Rectangular @90°||178x305mm (7”x12”)|
|Motor power||1.1kw 1.5HP(3PH),1.5kw 2HP(1PH)|
