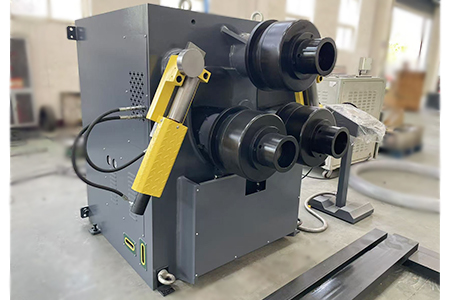

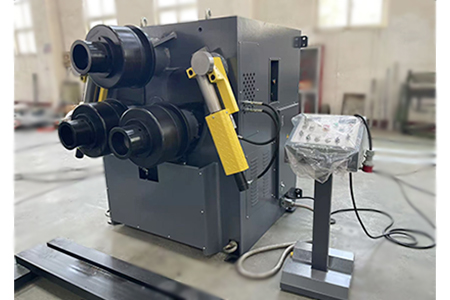

HRBM120 Hydraulic Round Bending Machine
Axis diameter: 120mm
Roller diameter: 390mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item No. | 391029 |
| Model | HRBM120 |
| Axis diameter | 120mm |
| Roller diameter | 390mm |
| Horizontal working | yes |
| Speeds | 2-7.5m/min |
| Motor Power | 15kW |
| Overall size | 155x182x170cm |
| N.W./G.W. | 4645/4760kg |
Steel welded frame construction
Horizontal and vertical bending(machine inclinable)
Stepless adjustable lateral rolls for spiral bending
Hardened and ground shafts made of high tensile special steel
3 driven rolls
Mobile control panel
Hardened roller sets as standard
2-level digital display(lower rolls)
