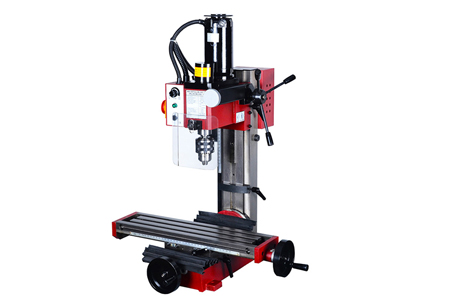

X2L Mini Mill Drill
Drilling capacity : 13 mm
Headstock travel (Z) : 180 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Drilling capacity |
13 mm |
End milling capacity |
16 mm |
Face milling capacity |
30 mm |
Longitudinal axis (X) |
300 mm |
Cross axis (Y) |
130 mm |
Headstock travel (Z) |
180 mm |
Throat |
167 mm |
Max. distance spindle to table |
280 mm |
Head tilt |
45°L, 45°R |
Spindle taper |
MT3 or R8 |
Motor output power |
350 w |
Spindle speed Low range |
100-1100 ±10% rpm |
High range |
100-2500 ±10% rpm |
Table effective size |
460×120 mm |
T-slot size |
12 mm |
Overal dimension (LxWxH) |
620x550x700 mm |
Packing size (LxWxH) |
640x600x730 mm |
Weight (Net/Gross) |
60/78 kg |
Product Features
• With cast iron for vibration free running
• Milling head and column tilts to 45° Left & Right
• Variable speed motor with a 2 speed gearbox
• operationsFine down feed control for accurate tool height setting
• 3MT spindle fitted with a 13mm drill chuck and arbour
• Coarse down feed for drilling
• With long size table: 460*120 mm
