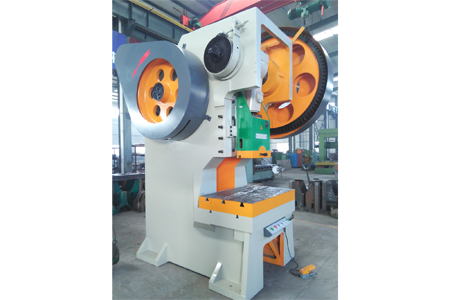

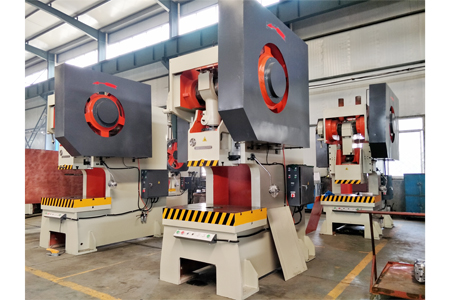

JB21 Series Mechanical Punching Machine
Nominal Force : 125-250T
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Description | Unit | JB21-125T | JB21-160T | JB21-200T | JB21-250T |
Nominal force | Kn | 1250 | 1600 | 2000 | 2500 |
Nominal force stroke | mm | 6 | 6 | 6 | 6 |
Slide stroke | mm | 160 | 160 | 160 | 160 |
Slider stroke times | times/min | 40 | 40 | 40 | 35 |
Max. mold height | mm | 360 | 360 | 360 | 450 |
Mold height adjustment | mm | 100 | 100 | 100 | 120 |
Slide center to body distance | mm | 400 | 400 | 400 | 420 |
Table size | mm | 750*1150 | 750*1150 | 750*1150 | 800*1400 |
Table hole size | mm | 220 | 220 | 220 | 220 |
Slider base size | mm | 430*520 | 430*520 | 430*520 | 600*780 |
Mold hole size | mm | 60*75 | 70*80 | 70*85 | 70*100 |
Motor Power | kw | 11kw | 15kw | 18.5kw | 22kw |
Weight | T | 9.5 | 13 | 14 | 18 |
Introduction:
JB21 series Mechanical Punching Machine adopts high-quality steel plate welding machine body, which has good stability and high strength. It adopts rigid rotary key clutch, which is safe and reliable, easy to operate and high in efficiency. This punch adopts a pneumatic balancer to run more smoothly , higher safety performance. The whole machine has novel design, beautiful appearance, compact structure, convenient use, safe operation and good rigidity. Lightweight steel clutch and cam brake can be easily matched with various peripheral equipment of punch press. Pneumatic balancer with a specification of more than 125 tons is used to improve the stability of the upper die and the slider in the reciprocating movement. More than 160 tons adopt the main and auxiliary working keys, which has higher safety performance.
Features:
1. High rigidity: High-strength cast iron body (large deep throat can be customized for steel plate welding body), and the internal stress is eliminated after vibration failure treatment. The fuselage and base are integrated, increasing the stability.
2. The punching machine has good versatility, and the body can be tilted within a certain range, which is convenient for the finished product or waste of the punching machine to slide down from the die.
3. There is a collapsed safety device inside the slider to protect the safety of the machine tool and mold.
4. Adopt rigid ductile iron clutch. The bearing bush is made of new alloy material, which greatly prolongs the service life.
5. The crankshaft is placed vertically and has a compact structure. The crankshaft is ground after high-frequency quenching, with good finish and flexible rotation; the rectangular six-sided extended guide rail, the guide surface is bronze paneled, and the guide precision is high.
6. The overall adopts imported PLC centralized control, and the gas path adopts imported safety double valve control, which can realize inching, inching, single and continuous stamping.
7. The height of the mold is adjusted by electric motor, high-quality configuration, key parts such as pneumatic components, electrical components, seals, buttons, etc. are all imported.
