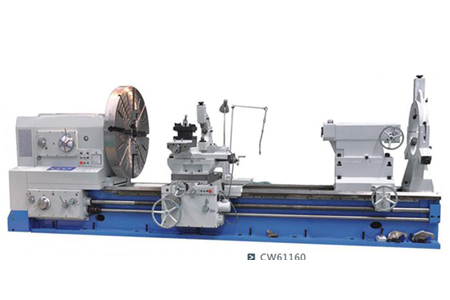

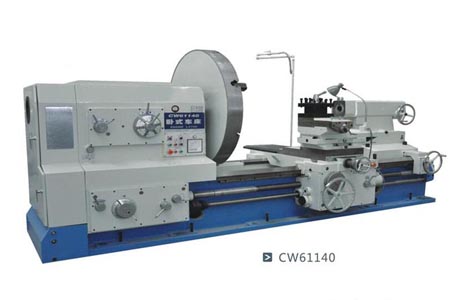

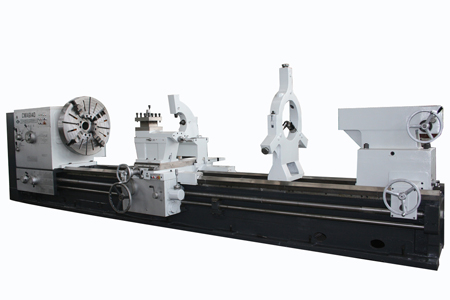

Large horizontal lathe
can undertake all kinds of turning work, drilling, boring, nesting and turn cones by motor.
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Main specifications | unit | CW61125
CW61140 CW61160 |
CW61125
CW61140 CW61160 CW61180 CW61200 CW61220 CW61250 |
| Swing over bed | mm | 1250/1400/1600 | 1250/1400/1600/1800/2000/2200/2500 |
| Swing over carriage | mm | 880/1080/1200 | 880/1080/1200/1400/1600/1800/2080 |
| Max.turning length | m | L=1600、2000 ~ 16000 (unit increase per 1000mm) | |
| Max.load between centers | ton | 15/18 | |
| Bed width | mm | 970(weighted) mountain guideway | 1100 plane guideway |
| Spindle speed | rpm | 2~ 200 | |
| Spindle motor | kw | DC55 | |
| Section of tool shank | mm | 45x 45 | |
| Diameter of tailstock quill | mm | 240/280 | |
| Travel of tailstock quill | 80: 1: 7 | ||
| Weight of the lathe with 3m | kg | 23000/25000/27000 | 23000/25000/27000/29000/31000/33000/35000 |
| Additional weight per | kg | 1300 | 1300 |
Product description :
This machine tool can undertake all kinds of turning work, which can not only turn the outer circle, inner hole, end face, metric, inch, modulus and diametral pitch threads of various parts, but also meet the technological requirements of drilling, boring, nesting, etc. ,
It is also suitable for hard alloy cutting tools for powerful cutting, processing various ferrous and non-ferrous metals.
In addition, this machine tool can also turn cones by motor. The upper tool holder alone can turn the cones with the cone generatrix<400mm, and the upper tool holder and the slide plate can longitudinally feed the cones with the cone generatrix ≥400mm.
The machine tool is equipped with a separate oil pump, forced lubrication, as well as fast movement, terminal insurance, fixed-range cutting. The machine tool has the inherent characteristics of high power, high speed, low noise, strong rigidity, high precision and good accuracy retention, and it has a beautiful and generous appearance.
The layout is compact and reasonable, the operating handle is centralized, and the operation is convenient and flexible. It adopts Siemens or Eurotherm’s full-digital DC adjustment device, which is safe and reliable, pleasant and intuitive, and the image of the sign is intuitive. In addition, the machine tool has complete accessories and also Can provide some special accessories such as roller device, turning cone device, digital display device, milling head, grinding head, etc.
