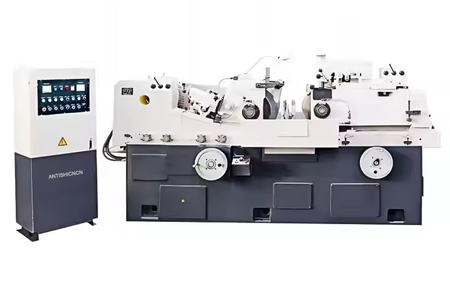

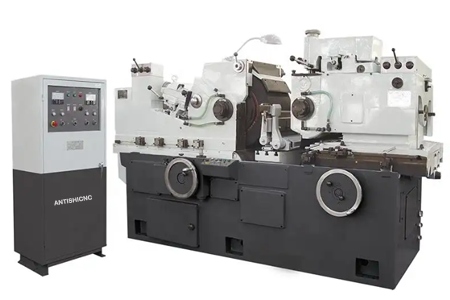

M1040 M1050 M1083 M10100 Small and Medium Grinding Wheel Precision Centreless Grinding Machine
Grinding diameter : 2-150mm
Grinding length : 190mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Data | M1040B | M1050A | M1080B | M10100 | M1083B |
| Plunge feeding Grinding diameter(mm) | 2~40 | 5 ~ 50 | 5 ~ 80 | 10~100 | 10~150 |
| Plunge feeding Grinding length (mm) | 120 | 120 | 140 | 195 | 190 |
| Through feeding Grinding diameter (mm) | 2~40 | 5 ~ 50 | 5 ~ 80 mm | 10~100 | 10~150 |
| Grinding Wheel Spec. (mm) | 350*125*127 | 400*150*203 | 500*150*305 | 500*200*305 | 600*200*305 |
| Regulating Wheel Spec. (mm) | 250*125*75 | 300*150*127 | 300*150*127 | 350*200*203 | 350*200*203 |
| Grinding Wheel Speed (r/min) | 1870 | 1668 | 1300 | 1338 | 1115 |
| Regulating wheel speed (r/min) | 10~200 | 10 ~ 200 | 10 ~ 200 | 10~200 | 10~200 |
| Swiveling Angle of Regulating Wheel | |||||
| Vertical (degree) | -2°~4° | -2°~5° | -2°~5° | -2°~5° | -2°~5° |
| Horizontal(degree) | 0° ~ 3° | -1° ~ 3° | 0°~ 3° | 0°~ 3° | 0°~ 3° |
| Micro Feed/Division (mm) | 0.002 | 0.002 | 0.0025 | 0.002 | 0.005 |
| Feed/Division (mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Dresser Feed Amount/Division (mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Height from center of GW & RW to worktable (mm) | 190 | 220 | 210 | 255 | 285 |
| Motor Power | |||||
| Grinding wheel motor (KW) | 7.5 | 11 | 15 | 18.5 | 22 |
| Grinding wheel motor (KW) | 1.1 | 1.5 | 1.5 | 2.2 | 3 |
| Power supply | 3N 380V 50HZ | 3N 50HZ 380V | 3N 380V 50HZ | 3N 50HZ 380V | 3N 50HZ 380V |
| Dimension(L*W*H) (mm) | 1550*1300*1405 | 1920*1681*1479 | 1950*1580*1485 | 2675*1505*1615 | 2650x1500x1800 |
| Machine weight (kg) | ≈ 2000kg | ≈ 2800kg | ≈3500 kg | ≈4500 kg | ≈7000 kg |
| Accuracy(Standard bars) | |||||
| Roundness (mm) | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 |
| Cylindricity (mm) | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 |
| Roughness (μm) | Ra0.32 | Ra0.32 | Ra0.32 | Ra0.32 | Ra0.32 |
Through grinding : It is mainly used for grinding cylindrical surfaces of various ring and shaft parts.
Plunge-feed : Hand-cut grinding is carried out on all kinds of stepped, tapered and cylindrical rotating surfaces.
Product Application Areas: Bearing, Auto parts, Construction Machinery, Other related field.

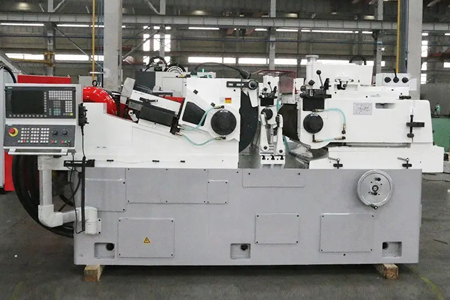

CNC System & Software : SIEMENS, FANUC, MITSUBISHI
Machine Tool Main Features
◆ Bed body
Normalization heat treatment and natural aging treatment of high-quality castings are adopted to stabilize the internal structure and ensure firmness, wear resistance and small deformation during use.

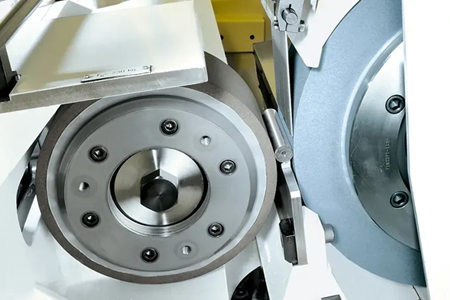

◆ Grinding wheel and guide wheel device
1. The machine tool adopts the layout of fixed grinding wheel frame and movable guide wheel frame.
2. The grinding wheel is cantilever structure, and the spindle of the grinding wheel adopts multi-piece long bearing hydrodynamic oil film bearing.
3. The guide wheel is cantilever structure, and the main shaft of the guide wheel adopts integral 1:30 cone sliding bearing.
◆ Feed device
The main feed slide adopts needle roller guide rail, which is sensitive in movement, high in feed accuracy and long in service life.
◆ Dressing device
The grinding wheel and guide wheel dresser adopt hydraulic transmission and stepless speed regulation.
◆ Electrical control device
The speed regulation of guide wheel adopts AC variable frequency stepless speed regulation.
Operation Applications
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
