Medium-Speed Wire cut Electrical Discharge Machine 500GS3
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Machine performance | Specifications | Unit | 500GS3 | |
| Machine | Occupation size (L*W*H) | mm | 1850*1400*2000 | |
| Total weight of equipment | kg | 2500 | ||
| Worktable | Table size (W*L) | mm | 720*520 | |
| Travel | X-axis travel | mm | 500 | |
| Y-axis travel | mm | 400 | ||
| Z axis travel | mm | 260 | ||
| CNC power supply | Pulse Width | us | 1-250 | |
| Output pulse gap to pulse width ratio | 4—15 | |||
| Number of low pressure pipes | pcs | 0-15 | ||
| Number of high pressure pipes | pcs | 0-3 | ||
| servo speed | gears | 0-15 | ||
| servo tracking | gears | 1-199 | ||
| Servo speed limit | gears | 1-500 | ||
| Wire speed | gears | 0-3 | ||
| Cutting times | time | 1-7 | ||
| Minimum Mechanical Drive Equivalent | um | 1 | ||
| Pulse resolution | um | 0.4 | ||
| Processing capacity | Spindle travel (electrically adjustable) | mm | 260 | |
| Maximum cutting slope/work-piece thickness | ±6°/80 | |||
| The maximum load capacity of the workbench | kg | 500 | ||
| Precision | Positioning accuracy X/Y | mm | ≤0.01 | |
| Repeat positioning accuracy X/Y | mm | ≤0.005 | ||
| Best multi-knife cutting accuracy | mm | ≤0.005 (diameter 18 square height 25mm, cut one and trim two, material SKD11 or Cr12, HRC58) | ||
| Optimum Surface Roughness | um | Ra≤0.7 (square 10mm*10mm*25mm, material SKD11 or Cr12, HRC58) | ||
| Processing Efficiency | Maximum cutting efficiency | mm2∕min | ≥220 | |
| Common cutting efficiency | mm2∕min | ≥150 | ||
| Maximum processing current | A | ≤10 | ||
| Processing power no-load voltage | V | 100 | ||
| Power consumption | KW | ≤2.8 | ||
| Wire System | Wire Diameter | mm | ∮0.12-∮0.2 | |
| Wire drum speed | Frequency | |||
| Tight wire method | Two-way automatic wire tightening | |||
| Wire speed | m/s | 3-12 | ||
| Working Fluid Tank | Filtration accuracy | um | ＜10 | |
| Filter Method | Slow Wire Filter | |||
| Working Fluid | Special Cutting Fluid | |||
| Environment And Electricity | Electricity | 380V±10% / 50/60Hz / 2kVA | ||
| Temperature | Temperature 15-30℃ / Humidity 40-80% | |||
| Barometric Pressure | kpa | 86-106kpa | ||
Equipment Introductions

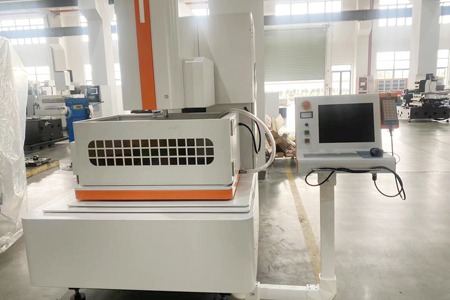

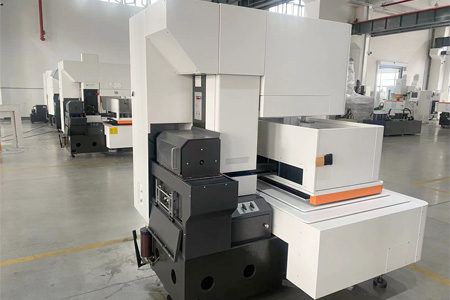

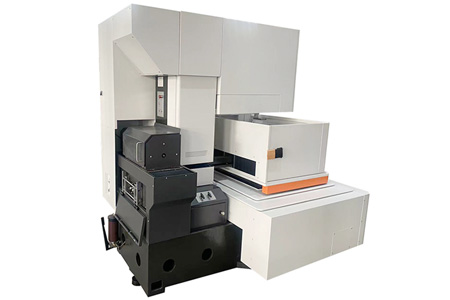

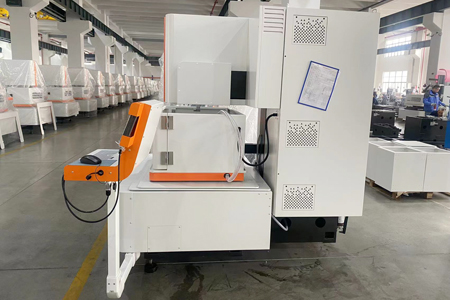

500GS3 AC servo medium-feeding wire-cutting machine tool is an upgraded version of 500GS1. It is a five-axis CNC (“Z” axis CNC manual lock) four-axis linkage medium-feeding wire-cutting machine tool. The “Z” axis can realize micron-level CNC control , The U/V axis adopts precision linear guide rail, ball screw and motor are directly connected. This model of Shanghai ANTISHI is the first servo medium-feeding wire-cutting machine tool in China to adopt this structure to achieve stable processing.
In order to better achieve higher precision of our products, better product consistency, and more stable product stability. For this reason, Shanghai ANTISHI has introduced a German ZEISS three-coordinate measuring instrument for three-dimensional inspection and screening of machine tool castings and purchased parts.
Standard Equipment
| Name | Specifications | Supplier |
| Machine bed | High-quality resin sand casting | China |
| X/Y-axis lead screw | Precision ball screw | HIWIN/PMI |
| X-axis, Y-axis guide rail | Precision linear guide | HIWIN/PMI |
| Guide Wheel | Thick gem guide wheel or special guide wheel | China |
| Guide Wire | Dedicated | China |
| Reversing Switch | Rainbow stone | China |
| Filtering System | Slow filtration | ANTISHI |
| Power control cabinet | High Performance Control Power | ANTISHI |
| Industrial control computer | High performance fanless | ANTISHI |
| AC servo motor | PANASONIC | Japan |
| AC Servo Motor Driver | PANASONIC | Japan |
| Inverter | SHILIN | Taiwan |
| Relay | OMRON | Japan |
| Contactor | SCHNEIDER | France |
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
