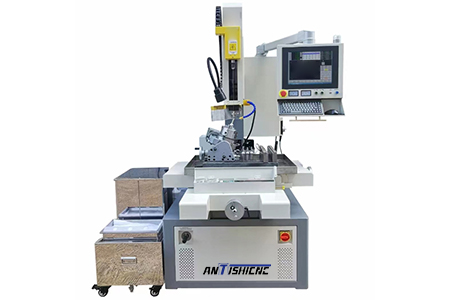

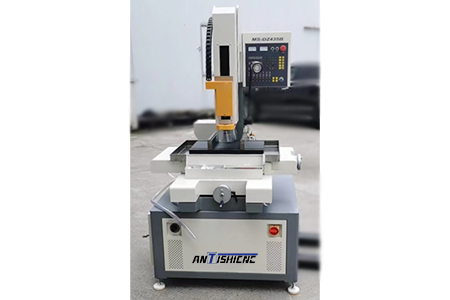

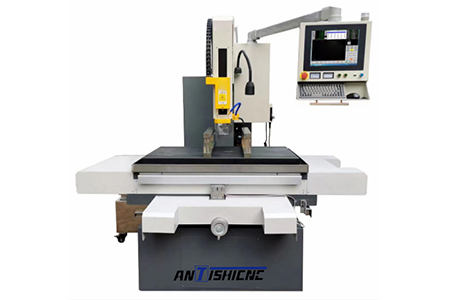

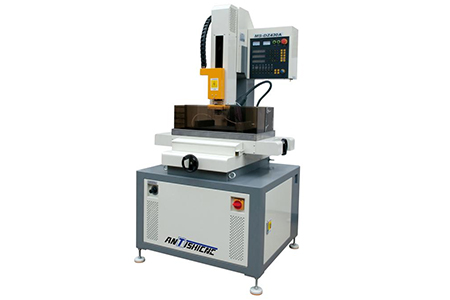

MS-DZ430 Z Axis Automatic ZNC EDM Drilling Machine
Max. speed of spindle: 1500mm
Spindle rotation speed: 0-200rpm adjustable
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| NO. | Specifications | MS-DZ430A | MS-DZ430B | MS-DZ430C |
| 1 | Electrode diameter(mm) | Φ0.1-Φ3.0 | Φ0.2-Φ3.0 | Φ0.3-Φ3.0 |
| 2 | W axis/ Machine head travel(mm) | 250 | 250 | 250 |
| 3 | Z axis/ Spindle servo travel(mm) | 380 | 380 | 380 |
| 4 | Max. speed of spindle(mm) | 1500 | 1500 | 1500 |
| 5 | Spindle rotation speed(rpm) | 0-200 adjustable | 0-200 adjustable | 0-200 adjustable |
| 6 | Worktable size(mm) | 440*320 | 440*320 | 440*320 |
| 7 | X*Y travel(mm) | 400*300 | 400*300 | 400*300 |
| 8 | Max distance from guide to working table（mm） | 300 | 300 | 300 |
| 9 | Max. Working current （A） | 30 | 30 | 30 |
| 10 | Max.input power（KW） | 4 | 4 | 4 |
| 11 | Power supply（V/HZ） | 380/50 | 380/50 | 380/50 |
| 12 | Digital display | 3-axis | 3-axis | 3-axis |
| 13 | Working liquid supply device | Pneumatic pump + electrical pump | Pneumatic pump | Pneumatic pump |
| 14 | Max.working liquid pressure（Mpa） | 12 | 12 | 8 |
| 15 | Max. worktable load（kg） | 3000 | 3000 | 300 |
| 16 | Overall dimension of machine（W*L*H） | 1000*1000*2000 | 1000*1000*2000 | 1000*1000*2000 |
| 17 | Overall dimension of machine（W*L*H） | 700 | 700 | 700 |
| 18 | X、Y、Z configurations | X,Y,Z axis precision ball screw | ||
| Z axis Taiwan HIWIN linear guideway | ||||
| Z axis stepper motor subdivision drive | ||||
Main performance characteristics of the machine:
1. Z axis travel is 380mm, up to 500mm-long electrode can be clamped, which reduces the electrode consumption to the minimum (about 100mm); together with super low consumption circuits, the electrode is used at extremely high efficiency.
2. Z-axis uses subdivision drive stepper motor （hybrid servo motor）, making high speed movement possible, the whole travel only takes 10 seconds, greatly reducing waiting time and improving efficiency. The machine head is electrically driven.
3. Patented swivel head: innovated design of integrated swivel head with tungsten steel wear plate and multi-layer waterproof structure. The swivel head and chuck is connected by taper sleeve, thus to guarantee rotational concentricity.
4. Patented swivel head: innovated design of integrated swivel head with tungsten steel wear plate and multi-layer waterproof structure. The swivel head and chuck is connected by taper sleeve, thus to guarantee rotational concentricity.
5. Humanized design is shown not only in details of hardware, but also in practical functions of software and user experience.
| No. | Spare parts |
| 1 | X Y Z ball screw |
| 2 | W axis ball screw |
| 3 | X Y Z linear guideway |
| 4 | X Y Z motor |
| 5 | X Y driver |
| 6 | Z drier |
| 7 | W axis motor |
| 8 | Rotation motor |
| 9 | electrical pump |
| 10 | Pneumatic pump |
| 11 | scale |
| 12 | operating system |
| 13 | Circuit breakers, contactors |
| 14 | Allen key |
| 15 | Double-head screwdriver |
| 16 | Specialized electrode scissors |
| 17 | Guide |
| 18 | Guide |
| 19 | Brass electrode tube |
| 20 | Brass electrode tube |
| 21 | Electrode sealing ring |
| 22 | Precision drill chuck |
| 23 | Machine foot |
| 24 | Clean water tank |
| 25 | Dirty water tank |
| 26 | Balance holder |
| 27 | Water baffle |
| 28 | Operation Manual |
