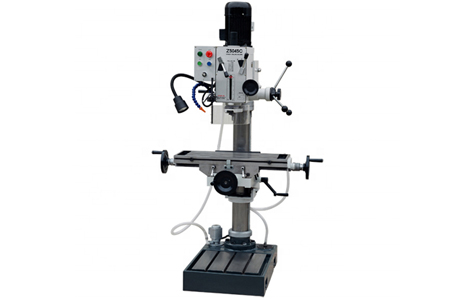

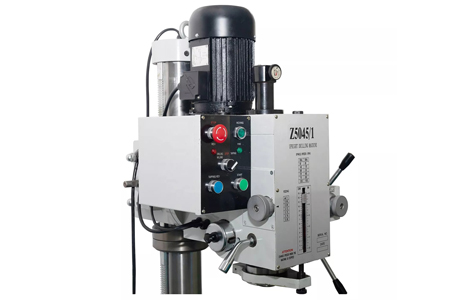

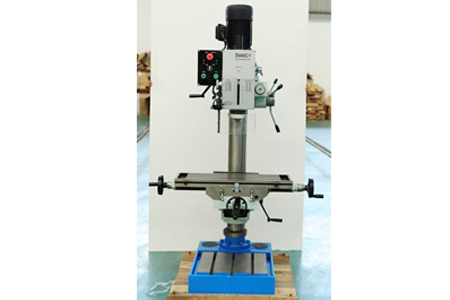

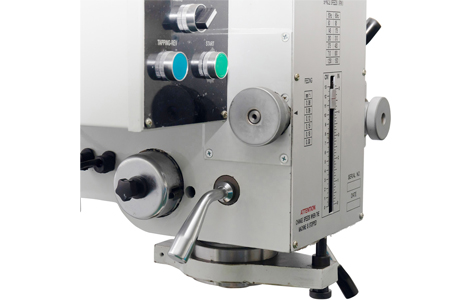

    • New Z50 Pillar type vertical drilling machine with table travel (X/Y)

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Technical Specifications | Model Units Z5032C Z5040C Z5045C Z5032C/1 Z5040C/1 Z5045C/1
    Max. drilling dia. mm 32 40 45 32 40 45
    Spindle taper – MT3 /R8 MT4 MT4 MT3 /R8 MT4 MT4
    Spindle travel mm 130 130 130 130 130 130
    Spindle speed steps – 6 6 6 6 6 6
    Spindle speed range rpm @50HZ 80-1250 80-1250 80-1250 80-1250 80-1250 80-1250
    rpm @60HZ 95-1500 95-1500 95-1500 95-1500 95-1500 95-1500
    Spindle feed steps – Without Without Without 6 6 6
    Spindle feed range mm/r Without Without Without 0.06-0.30 0.06-0.30 0.06-0.30
    Distance between spindle nose and table surface 700 700 700 700 700 700
    Distance between spindle nose and stand table mm 1125 1125 1125 1125 1125 1125
    Distance from spindle axis to column surface mm 283 283 283 290 290 290
    Spindle box travel mm 250 250 250 250 250 250
    Spindle box swivel angle (horizontal/perpendicular) 360/±90° 360/±90° 360/±90° 360°±90° 360°±90° 360°±90°
    Table size mm 730*210 730*210 730*210 730*210 730*210 730*210
    Table travel(X/Y) mm 500*205 500*205 500*205 500*205 500*205 500*205
    Table vertical travel mm 570 570 570 570.00 570.0 570.0
    Stand table size mm 417*416 417*416 417*416 417*416 417*416 417*416
    Main motor power kw 0.75 1.1 1.5 1 1 2
    Main motor speed rpm 1400 1400 1400 1400 1400 1400
    Machine weight kg 510 520 530 520 530 540
    Overall dimension mm 1000*950*1850 1000*950*1850 1000*950*1850 1000*950*1850 1000*950*1850 1000*950*1850

    Product Description
    Z50 series pillar type vertical drilling machine tools are novel in design, beautiful in appearance, compact in structure and wide in speed change range.
    The worktable can be rotated +180° or tilted +45°, and has a wide range of use. Equipped with cooling device and tapping device. The electrical system implements the IEC electrical standard, has short-circuit and overload protection functions, and the main motor has a large power. Unique protective device, safe and reliable. Suitable for drilling, reaming, reaming, tapping, plane scraping and other processing. It is an ideal machine tool for single piece and mass production.

    Product Features
    The main performance characteristics：
    1.Change speed with gears and operate easily ,
    2.High spindle speed and wide speed range,
    3.Charcteristic auto tool releasing device guarantees it is very easy to change tool ,
    4.Equipped with coolant system and work lamp.

    Application：
    Ideal choice for single piece and small batch production mass, production for drilling ,counter boring, tapping screws, spot facing machining, etc.

    Standard Equipment
    1.Drill chuck
    2.Taper shank adapter
    3. Wedge for taper shank tool
    4. Lower cutter iron
    5. Wrench

    Optional Equipment
    Angled pliers
    Eye shield
