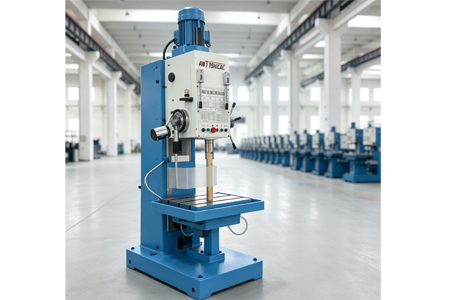

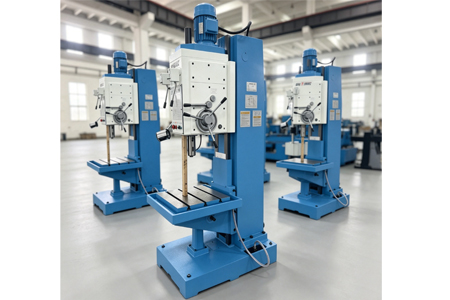

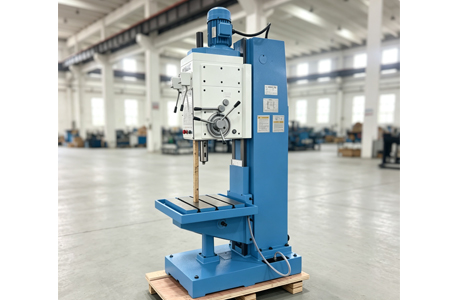

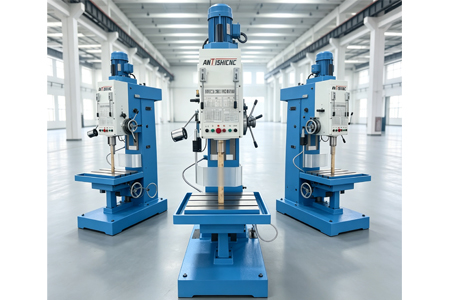

Z5125 5132 vertical drilling machine

Max.drilling diameter : 32 mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Drilling machine model Z5125A Z5132A
Maximum drilling diameter (mm) 25 32
Maximum feed resistance of spindle (N) 9000 9000
Spindle torque (N.m) 160 160
Main motor power (kw) 2.2 2.2
Taper of main cone (NO) 3 4
Spindle speed (r.p.m) 50-2000(9 pole) 50-2000(9poile )
Spindle feed per revolution (mm/rev) 0.056 -1.80(9 pole ) 0.056 -1.80(9 pole)
Spindle stroke (mm) 200 200
Spindle box stroke (mm) 200 200
Spindle span (mm) 280 280
Workbench stroke (manual) (mm) 310 310
Distance from spindle end to worktable (mm) 710 710
Work table size (mm) 400×550 400×550
Machine weight (kg) 950/1400 950/1400
Outline dimension (mm) 960×800×2290 960×800×2290
Package size (mm) 1300×1080×2420 1300×1080×2420

Product Description

The Z5125 vertical drilling machine is a square column vertical drilling machine. The Z5125 vertical drilling machine has the characteristics of stable structure and convenient installation. A series of design concepts such as the design structure of the Z5125 vertical drilling machine and the power of the high-power spindle motor determine that this type of drilling machine can perform high-intensity drilling operations. The Z5125 vertical drilling machine has a wide range of variable speeds, a large number of feed stages, and a large range from the spindle end face to the worktable surface. It can adapt to the production and processing of different workpieces, different materials, and different processing tools. The Z5125 vertical drilling machine can meet the needs of drilling, tapping, expanding, reaming, countersinking, etc., and the production and processing needs of special machines can be carried out through the installation of special fixtures and tools.

Product Features

● The high-power spindle motor, the spindle taper is Morse 4, the spindle power is good, the torque is large, and the large-aperture drilling is guaranteed;

● The bed is cast with resin sand mold, and the basic materials are good, ensuring the long-term stability and durability of the machine tool;

● The main body of the machine tool is heat-treated to eliminate internal stress, and the precision of the guide rail surface ultrasonic quenching is good;

● Spindle speed change, wide range of feed speed change, suitable for processing and production of multi-workpiece material cutting tools;

● The machine tool supporting parts are selected from domestic brand manufacturers and cooperating suppliers for many years. Good basic parts ensure the long-term precision operation of the machine tool;

● The overall design of the operating handle of the machine tool combines ergonomics, convenient operation, low labor intensity, and high efficiency;

● Wide range of processing materials, multi-process processing and production such as drilling, tapping, reaming, expansion and countersinking can be carried out;

● The main shaft adopts the turbine coupling to ensure the resistance, the main shaft resistance exceeds 2000kg, and the coupling slips to ensure the stable operation of the main shaft.
