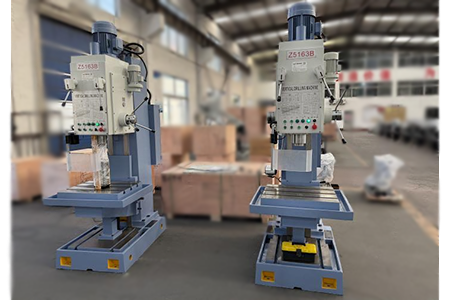

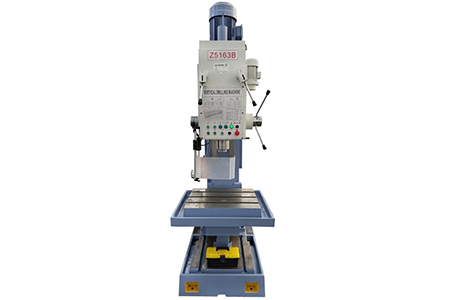

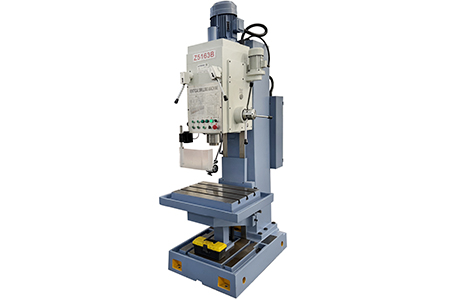

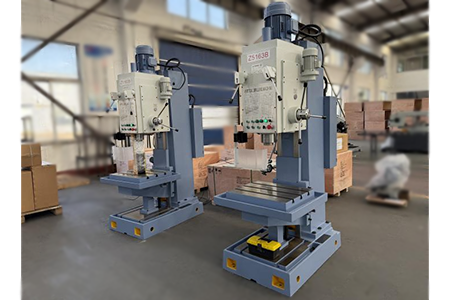

Z5163B Vertical Drilling Machine
Maximum drilling diameter:63mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | Z5163B |
| Maximum drilling diameter (mm) | mm | 63 |
| Maximum feed resistance of spindle (N) | N | 30000 |
| Spindle torque (N.m) | N.m | 800 |
| Main motor power (kw) | Kw | 5.5 |
| Taper of main cone (NO) | NO | 5 |
| Spindle speed (r.p.m) | R.p.m | 40-570(9 pole) |
| Spindle feed per revolution (mm/rev) | mm/rev | 0.11 -0.78(6 pole) |
| Spindle stroke (mm) | mm | 250 |
| Spindle box stroke (mm) | mm | 250 |
| Spindle span (mm) | mm | 375 |
| Workbench stroke (manual) (mm) | mm | 300 |
| Distance from spindle end to worktable (mm) | mm | 50-850 |
| Work table size (mm) | mm | 650×550 |
| Machine weight (kg) | kg | 2500/2800 |
| Outline dimension (mm) | mm | 1470×986×2800 |
| Package size (mm) | mm | 1710×1130×2920 |
Product Description
The Z5163 vertical drilling machine is a square column vertical drilling machine. The Z5163 vertical drilling machine has the characteristics of stable structure and convenient installation. A series of design concepts such as the design structure of the Z5163 vertical drilling machine and the power of the high-power spindle motor determine that this type of drilling machine can perform high-intensity drilling operations. The Z5163 vertical drilling machine has a wide range of variable speeds, a large number of feed stages, and a large range from the spindle end to the worktable surface. It can adapt to the production and processing of different workpieces, different materials, and different processing tools. The Z5163 vertical drilling machine can meet the needs of various processes such as drilling, tapping, expanding, reaming, countersinking, etc. It can be used for special machine production and processing needs through the installation of special fixtures and tools.
Standard Equipment
| Item | B16 |
| Three jaw drill chuck | B16 |
| Joint rod for drill chuck | 5X4 |
| Reduction sleeve | 4X3 |
| Reduction sleeve | B16 |
| Tapered drif |
Optional Equipment
Drill bit
(Optional drill according to customer’s processing size.)
