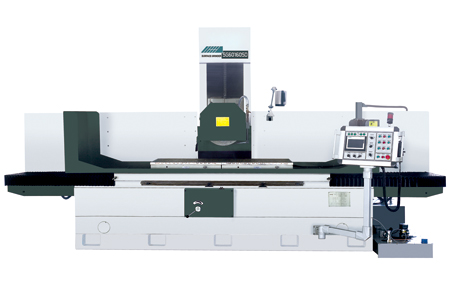

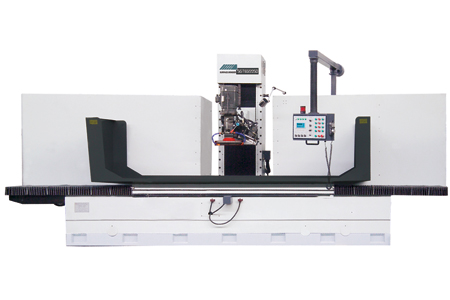

SGT Column Moving Surface Grinder for Rail Grinding
Max.grinding size :
1600*610*600 mm
3000*810*600 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Description | Unit | SGT60160SD | SGT60220SD | SGT80160SD | SGT80220SD | SGT80300SD | |
| Table size(L*W) | mm | 1600*610 | 2200*610 | 1600*810 | 2200*810 | 3000*810 | |
| Max.grinding size of Work-piece(L*W*H) | mm | 1600*610*600 | 2200*610*600 | 1600*810*600 | 2200*810*600 | 3000*810*600 | |
| Magnetic chuck size | mm | 600*800*2 | 600*1000*2 | 800*800*2 | 800*1000*2 | 800*1000*3 | |
| Table longitudinal speed | mm | 7~23 | 7~23 | 7~23 | 7~23 | 7~23 | |
| Max. loading of table(including magnetic chuck) | kg | 1230 | 1690 | 1630 | 2240 | 3060 | |
| Wheelhead Transverse Moving |
Auto intermittent feed rate | m/t | 1~30 | 1~30 | 1~30 | 1~30 | 1~30 |
| Rapid speed feed | m/min | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | |
| Hand-wheel feed per gra. | mm/gra. | 0.005/0.05 | 0.005/0.05 | 0.005/0.05 | 0.005/0.05 | 0.005/0.05 | |
| Vertical Wheel Moving |
Wheel head rotation | mm/t | ±30°, ±5° | ±30°, ±5° | ±30°, ±5° | ±30°, ±5° | ±30°, ±5° |
| Rapid speed feed | m/min. | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | 0.05-2 | |
| Hand-wheel feed per gra. | mm/gra. | 0.005/0.05 | 0.005/0.05 | 0.005/0.05 | 0.005/0.05 | 0.005/0.05 | |
| Wheel size(OD*Width*ID) | mm | According to process | According to process | According to process | According to process | According to process | |
| Total rated power | KW | 17 | 17 | 17 | 17 | 19 | |
| Gross weight | kg | 8500 | 9500 | 8500 | 9500 | 14000 | |
| Package dimension(L*W*H) | cm | 480*220*172 | 600*220*172 | 480*220*172 | 600*220*172 | 830*220*172 | |
| 260*227*255 | 260*227*255 | 280*227*255 | 280*227*255 | 280*227*255 | |||
Product Features
High strength cast iron foundation
Longitudinal moves hydraulically with variable speed
The transverse and Vertical moves by servo motor and PLC controller realizing auto feed
The spindle equipped with imported high-precision rolling bearings is directly connected with the motor through an elastic coupling.
Table guide adopt flat- V guide and affixed with Teflon wear belt
The grinding head is equipped with an Angle dresser to dress the upper plane of the Angle grinding wheel.
Application
The machine is PLC controlled column moving guide grinder, specialized in grinding machine parts rectangular or dovetail guide, the work-piece can be directly fixed on the workbench or adsorbed on the electromagnetic chuck..
Standard Accessories
Coolant system with magnetic separator, Angle dressing device,working light, leveling wedges, foundation screw, wheel flange, wheel balance arbor, magnetic chuck, standard wheel, operation manual,wheel dressing base,wheel balance stand,PLC controller and touched screen,Y/Z axis MPG.
Optional Accessories
Diamond pen
Paper filter
Magnetic separator and paper filter
