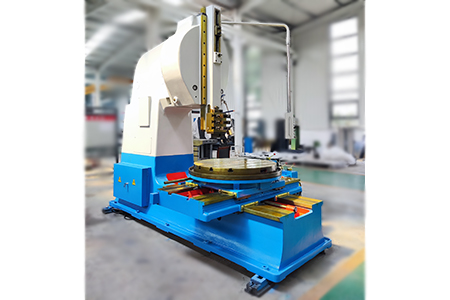

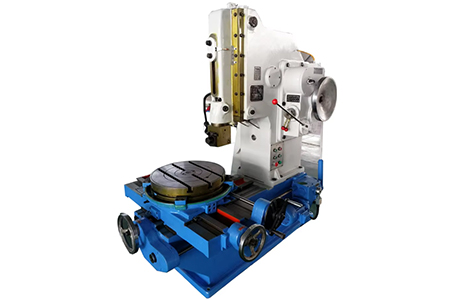

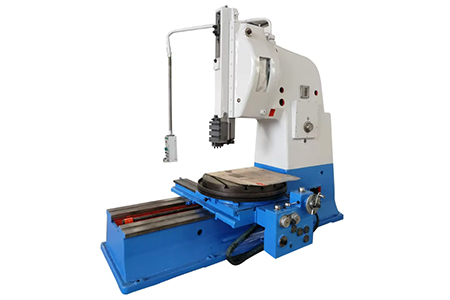

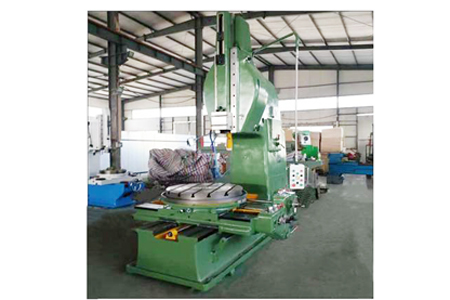

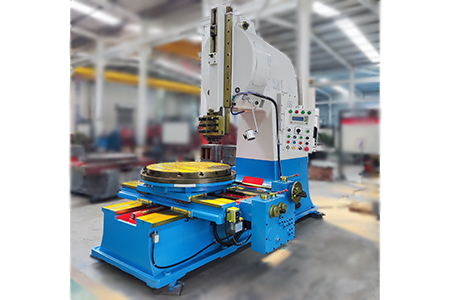

B5050 Slotting machine
Max. weight of workpiece : 2000kg
Diameter of worktable : 1000mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
ITEM | Unit | B5050 |
Maximum slotting length of ram | mm | 500 |
Maximum weight of workpiece | kg | 2000 |
Ram tilt angle (left and right direction) | o | ±10 |
Diameter of worktable | mm | 1000 |
Ram adjustment distance | mm | 430 |
Distance from tool support surface to forearm of bed | mm | 990 |
The distance between the work surface and the lower end of the carriage | mm | 740 |
Longitudinal stroke of worktable | mm | 1000 |
Transverse travel of worktable | mm | 660 |
Ram reciprocation times | times/ min | 9,12.5,18.25,36,50 |
Vertical and horizontal motor feed range of worktable mm/ram reciprocating once | mm | 0.1,0.2,0.30.4,0.6,1.2 |
The range of the rotary motorized feed of the worktable is divided into one ram reciprocating once | dr/per | 3,6,9,12,18,36 |
Maximum cutting force | n | 16000 |
Fast-moving motor | r.p.m | 1.5kw 1440 |
Main drive motor | r.p.m | 7.5kw.1400 |
Cooling pump motor | r.p.m | 0.125kw 2800 |
Net weight of machine tool (approximately) | T | 10.3T |
Dimensions (length×width×height) | mm | 3480×2085*3307 |
Product description :
This machine tool is used to process the plane, profile and keyway of various workpieces. It can also be used for processing various punching dies. This machine tool is used in batch production factories, single small batch production factories and use repair shops, and it is also suitable for processing small parts on capital construction sites.
The machining accuracy of this machine tool can reach three levels.
