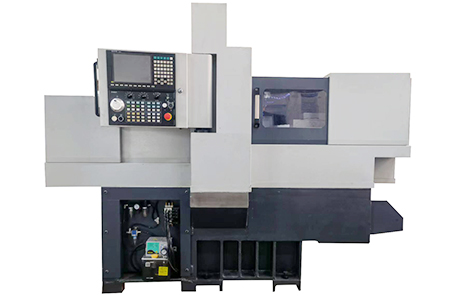

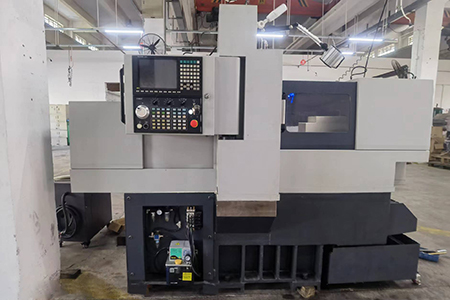

Swiss Type CNC Automatic Lathe H266E
Max dia. :26mm
Feeding length:105mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Main axis Diameter | 27mm | ||
| Maximum machining diameter | 26mm | ||
| Feeding length at one time | 105mm | ||
| Maximum working speed | 8000rpm | ||
| Turning tool | Number of tools | 7 pcs | |
| Tool specifications | 16x16mm | ||
| End processing | Number of tools | Front Fixing Tool | 5 pcs |
| Max drilling capacity | Fixed Tool | 10mm | |
| Maximum tapping capacity | Fixed Tool | M8 | |
| Lateral Rotation Tool | Number of tools | 4 pcs | |
| Tool specifications | ER16*4 | ||
| Max drilling capacity | 10mm | ||
| Max tapping capacity | M8 | ||
| Max milling capacity | 12mm | ||
| Max. saw blade milling cutter diameter | 40 mm | ||
| Max. speed | 5000min-1 | ||
| power | 1Kw | ||
| Rapid speed | Z1 | 24m/min | |
| X1 | 30m/min | ||
| Y1 | 30m/min | ||
| Spindle maximum working revolutions | 10000 rpm(8000 rpm for work setting) | ||
| Spindle positioning accuracy | C-axis control (0.001º) | ||
| Spindle power | 3.7/2.2kw | ||
| Spindle through hole diameter | 28mm | ||
| Spindle machining max diameter | 26mm | ||
| Coolant capacity | 200L | ||
| Cooling motor power | 0.85kw | ||
| Dimensions (L*W*H) | 2600＊1500＊2000mm | ||
| Machine weight | 3500kg | ||
| Sub-spindle (SUB) configuration | |||
| Max. machining diameter | 26mm | ||
| Max. discharge part length | 80mm (The output length of the parts behind the sub-spindle is 1000mm) | ||
| Max. clamping protrusion length(Parts without guide bush Processing methods) |
workpiece’s diaeter*2.5 | ||

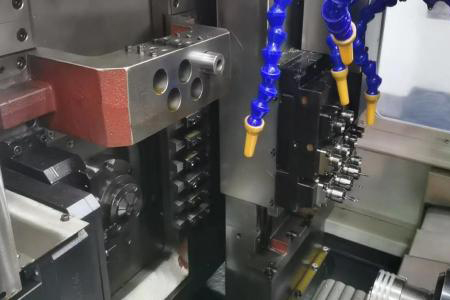

| Back processing | End fixed knife tool | ER11 | 4 pcs (standard configuration, can also choose 2 handles for power and 2 handles for fixing) |
| Face driven knife tool |
ER11 | 4 pcs (with optional y2 axis) | |
| Side powered knife tool | ER11 | 2-3 pcs (H266 with y2 axis is optional) | |
| Maximum drilling capacity | Fixed Tool | 10mm | |
| Maximum tapping capacity | Fixed Tool | M8 | |
| Fixed processing tool holder and driven tool holder | ER11/ER16 | 5 pieces (2 power knives and 3 fixed knives can be selected) or 4 power knives | |
| Rapid speed | Z2 | 24m/min | |
| X2 | 30m/min | ||
| Max. number of revolutions of the second spindle | 10000 rpm(8000 rpm for work setting) | ||
| Positioning accuracy of the second spindle | C-axis control (0.001º) | ||
| Second spindle power | 2.23.7kw | ||
The machine tool bed is integrally cast with resin sand, with strong seismic resistance and lessdeformation, so as to ensure the high rigidity and high precision of the machine tool.
Widely used in electronic, communication, medical, household appliances and other industry parts.
Japan Ankawa motor drive, Japan NSK bearing, Taiwan silver,silver Thailand rod guide,Taiwan Baoyuan new generation system.
| Name | Name |
| CNC System(standard is Taiwan SYNTEC system with 10.4inch color LCD display. Taiwan LNC, Fanuc, Mitsubishi as an option) | Product Conveyor Unit |
| Spindle clamping device | Oil Mist Separator |
| Second spindle clamping device | Air compressor |
| Synchronous Rotary Guide Bushing | Working lamp |
| Parts Adapter | Warning Light |
| Synchronization device | RS-232 interface and DNC function |
| Automatic lubrication system | Rear power unit |
| Cutting oil system | Sub-spindle blowing device |
| Air cooling temperature control system | leakage protection device |
