Micro Bench Drill & Mill

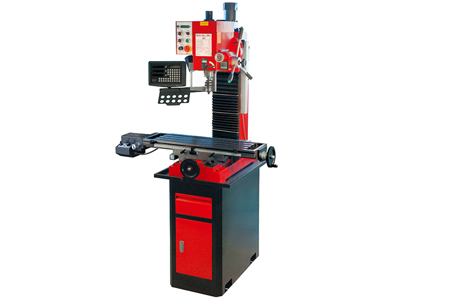

SX4-PRO Bench Mill Drill

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Product Features
•1,500W brushless DC motor
•With 3-axis digital readout, auto-feeder, stand
•Power height adjustment of Z axis
•Tapping function controls on handles
•Tilting headstock with digital angle readout
•Spindle speed and spindle depth digital readouts

Technical Parameter :

Drilling capacity

30 mm

Max.tapping capacity

16 mm

End mill capacity

40 mm

Face mill capacity

55 mm

Longitudinal axis (X)

410 mm

Cross axis (Y)

245mm

Headstock travel (Z)

335 mm

Throat

290 mm

Max distance spindle to table

400 mm

Spindle taper

MT4 or R8

Spindle speed

100-1600 ±10% rpm

Table effective size

240×820mm

T-slot size

14mm

Head tilt

45°L, 45°R

Motor output power

1500 W

Overal dimension (LxWxH)

1060x835x1080 mm

Packing size (LxWxH)

1040x920x1310 mm

Weight(Net/Gross)

230/260 kg
