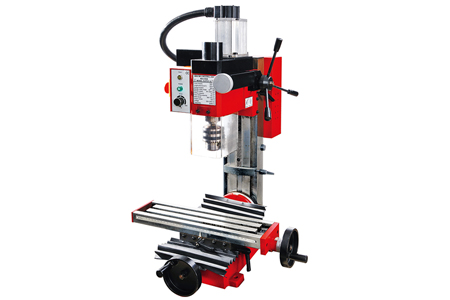

SX2 Mini Mill Drill
Drilling capacity : 16 mm
Headstock travel (Z) : 180 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Drilling capacity |
16 mm |
| End milling capacity |
20 mm |
| Face milling capacity |
35 mm |
| Longitudinal axis (X) |
220 mm |
| Cross axis (Y) |
100 mm |
| Headstock travel (Z) |
180 mm |
| Throat |
167 mm |
| Table effective size |
390×92 mm |
| Head tilt |
45°L, 45°R |
| Spindle taper |
MT3 or R8 |
| Spindle speed |
100-2500 ±10% rpm |
| Motor output power(Brushless motor) |
500 W |
| T-slot size |
12 mm |
| Overal dimenstion (LxWxH) |
520x510x760 mm |
| Packing size (LxWxH) |
540x540x700 mm |
| Weight (Net/Gross) |
50/68 kg |
Product Features
•Cast iron for vibration free running
• Column tilts to 45° Left & Right
• 500W high torque DC brushless motor
• Coarse down feed for drilling operations
• Hardened slide ways with gib strip adjustment
• Precision ground table with Tee slots for material clamping
