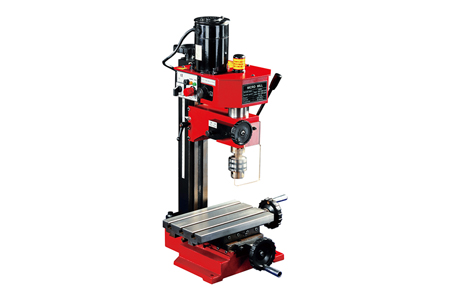

X1 Micro Mill Drill
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Drilling capacity |
10 mm |
| End milling capacity |
10 mm |
| Face milling capacity |
16 mm |
| Longitdinalaxis (X) |
200mm |
| Crossaxis (Y) |
105 mm |
| Headstock travel (Z) |
190mm |
| Throat |
140 mm |
| Max. distance spindle to talbe |
260mm |
| Spindle tapger |
MT2 |
| Motor output power |
150 W |
| Spindle speed Low range |
0-1000 ± 10% rpm |
| High range |
0-2000 ± 10% rpm |
| Table effective size |
240×145 mm |
| T-slot size |
8 mm |
| Overal dimension (LxWxH) |
390X360X600 mm |
| Packing size (LxWxH) |
380X420X620 mm |
| Weight (Net/Gross) |
32/44kg |
Product Features
• Cast iron construction
• Coarse feed for drilling, fine for milling
• Two function machine – vertical mill or small pillar drill
• Two electronically variable control spindle speed ranges
• Supplied with 10mm chuck, drawbar and service tools
