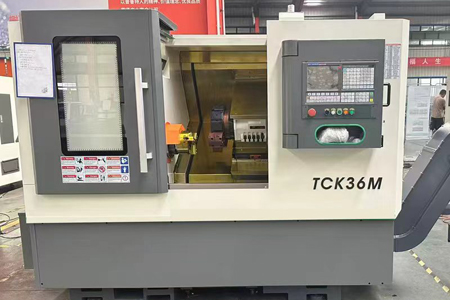

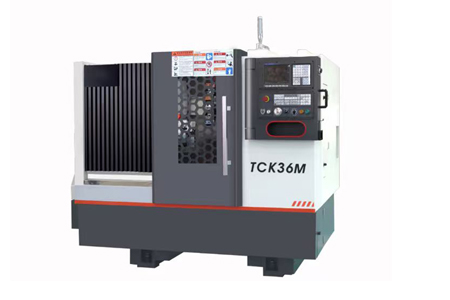

TCK36M CNC Turn-Mill Composite Machine
Max.workpiece swing dia : 360 mm
Max. turning diameter : 260 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifictation | Units | TCK36M |
| Capacity | ||
| Max.workpiece swing diameter | mm | 360 |
| Max. turning diameter | mm | 260 |
| Max. turning length | mm | 210 |
| Chuck size | Inch | 6” |
| Axis -Travel | ||
| X axis travel | 135mm | 135 |
| Z axis travel | 300mm | 300 |
| Rapid feed (X) | m/min | 24 |
| Rapid feed (Z) | m/min | 24 |
| Spindle | ||
| Spindle speed | r/min | 3000 |
| Spindle speed range | / | Step-less |
| Spindle nose | / | A2-5 |
| Bar capcity | mm | 56 |
| Hole through draw tube | mm | 45 |
| Turret | ||

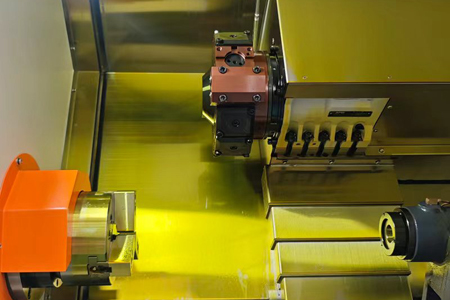

| Type of turret | / | Power Knife Tower |
| Number of tool stations | / | 12 station |
| Disc diameter | inch | 8” |
| Tool size(square shank) | mm | 16×16 |
| Tool size (round shank) | mm | 25 |
| Number of cutting tools | pcs | 4(2square2round) |
| Bed structure and transmission | ||
| Tilt angle of machine tool | ° | 30° |
| Guideway type | Linear guide rail | |
| X axis Rail width | mm | 28 |
| Z axis Rail width | mm | 28 |
| X axis ball screw | 2810 | |
| Z axis ball screw | 3210 | |
| Tail stock | ||
| Tail stock type | / | Hydraulic |
| Sleeve diameter | mm | 65 |
| Sleeve travel | mm | 60 |
| Sleeve taper | Mos | Mosh 4# |
| Tail seat movement form | / | Manual |
| CNC Unit | ||
| CNC system | GSK988TC3 | |
| X axis motor torque | Nm | 6 |
| Z axis motor torque | Nm | 6 |
| Power Knife Tower motor torque | Nm | 10 |
| Spindle motor power | kw | 5.5KW |
| Other | ||
| Lubrication pump | L | 3ZK(3L) |
| Cooling pump | W | 450 |
| Machine voltage | 380V/50HZ/3PH | |
| Power supply | KW | 9 |
| Machine overall dimensions | mm | 2200x1610x1850 |
| Machine weight | Kg | 2400 |
Resources & Downloads:
TCK36M CNC Turn-Mill Composite Machine Product Introduction :
This series of machine tools represents a mature product line primarily exported by ANTISHICNC. They feature a compact structure, an aesthetically pleasing design, and a spindle characterized by high torque, high rigidity, stable and reliable performance, and excellent precision retention.
Equipped with a high-speed, high-precision, and high-rigidity cartridge-style spindle unit and a servo spindle motor, the machine achieves higher spindle speeds. It is suitable for turning disc and shaft components, capable of machining linear profiles, arcs, and both metric and imperial threads (including multi-start threads), making it ideal for complex shapes and high-precision requirements.
The machine utilizes a 45° integral slant bed structure and high-precision, preloaded linear rolling guideways from Taiwan, ensuring high positional accuracy, smooth chip evacuation, and suitability for high-speed, high-precision machining.
The standard CNC system is GSK, with optional FANUC or SIEMENS systems available to meet customer needs; the system configuration is flexible. High-quality ball screws and precision screw bearings are employed throughout.
The spindle assembly uses high-precision bearings and undergoes precision assembly and dynamic balancing tests, ensuring high accuracy, low noise, and superior rigidity.
A forced automatic lubrication system provides metered lubrication to specific points on the ball screws and guideways, automatically triggering a warning signal in the event of an abnormality or low oil levels.
A domestic three-jaw self-centering hydraulic chuck is included as standard.
Stainless steel guards protect the guideways from corrosion caused by metal chips and coolant, while also facilitating easy chip removal.
Main configuration(Standard Parts)
| Part Name | Details |
| CNC System | GSK |
| Linear guide rail | HIWIN/PMI |
| Ball screw | THK/PMI |
| Screw rod bearing | KOYO |
| Hydraulic chuck | BDF/KPT |
| Hydraulic station | MF |
| BMT40/Power knife holder BMT45 | SANHE |
| Spindle | SQ |
| Lubrication pump | HEJIN |
| Cooling pump | OURUIS |
| Triple alarm light | JINYE |
| Heat Exchanger | XINXIN |
| Low Voltage Apparatus | CHINT |
| Spindle hydraulic brake | ANTISHICNC |
Optional Parts
| Part Name | Details |
| CNC system | FANUC
SIEMENS 828D SYNTEC HNC KND |
| Chip conveyor | Side place
Behind place |
| Tool Setter | Tool touch sensor |
| Automatic door | |
| Safety device for auto door | |
| Oil mist collector | |
| Oil-Water Separator | |
| Robot IF | |
| Bar material feeder | |
| Blowing device | |
| Water gun | |
| Soft jaw chuck | |
| Power knife holder | 90°/0°/Other |
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
