Technical Parameter :
|Max. Swing over bed||mm||400||400||500|
|Max. Swing over slide||mm||140||140||220|
|Max. processing length||mm||200(Gang type)||400(Gang type)
|Max. bar capacity||mm||45||45||55|
|Max. processing diameter of plate type work piece||mm||400||400||500|
|Spindle speed range||r/min||50-3500||50-3500||50-3000|
|Spindle shift mode||Step-less||Step-less||Step-less|
|Motor power of spindle||kw||5.5||5.5||7.5|
|X axis rapid traverse||m/min||24||24||24|
|Z axis rapid traverse||m/min||24||24||24|
|X axis servo motor torque||N.m||6||6||7.5|
|Z axis servo motor torque||N.m||6||6||7.5|
|X axis travel||mm||400||400||500|
|Z axis travel||mm||300||500||500|
|Guide way type||linear guide rail||linear guide rail||linear guide rail|
|Tool post form||Gang type||Gang type
|Tool shank size (square cutting tool/boring cutting tool)||mm||20×20/Ø25||20×20/Ø25||25×25/Ø32|
|Total rated power||kw||10||12||13|
|Total rated current||A||21||26||28|

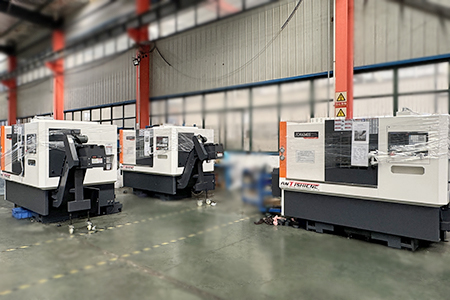

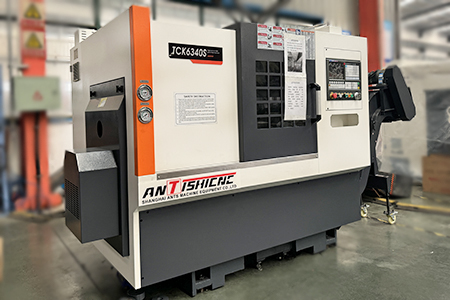

ANTISHI TCK Series CNC Lathe have compact structure, beautiful in appearance, large in main shaft torque, high in rigidity, stable and reliable in performance, and has excellent precision retention.
It adopts a 45°overall inclined bed structure, and is equipped with high-precision pr-loaded Taiwan linear rolling guides. The machine tool has high position accuracy and smooth chip removal, which is suitable for high-speed and high-precision machining.
Adopt high-precision spindle bearing set and the spindle with precision assembly and dynamic balance test to ensure the spindle with high precision, low noise and strong rigidity.
Using the turret method, the tool change speed is fast and the positioning accuracy is high.
The feed in X and Z directions is directly connected with the lead screw by a servo motor through a large torque and low inertia elastic coupling to ensure positioning accuracy and repeatable positioning accuracy.
Adopt advanced centralized automatic lubrication device, timing, quantitative automatic intermittent lubrication, stable and reliable work.
The machine tool protection adopts a full protection design, which is pleasant, reliable, waterproof and anti-chip, and easy to maintain.

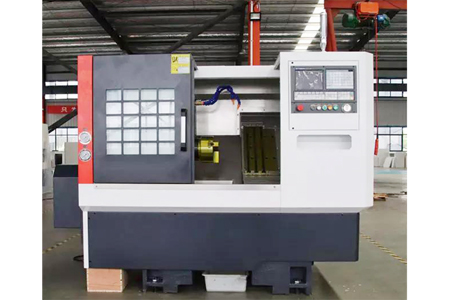

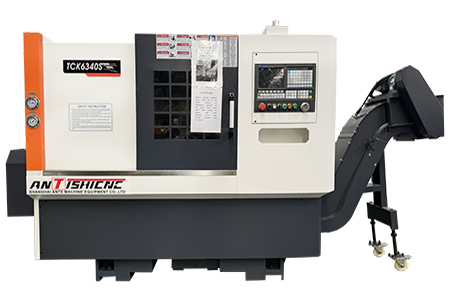

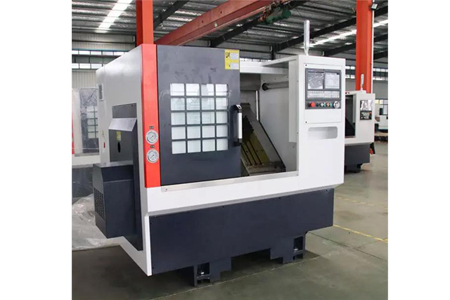

45 degree slant bed CNC lathe
High accuracy Taiwan liner guideway

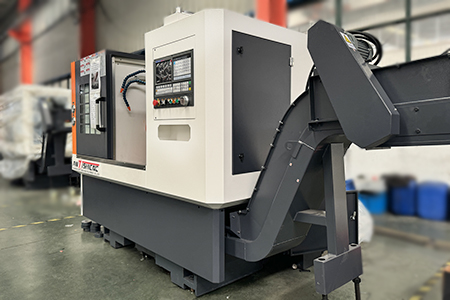

Chip conveying capacity is large and convenient, customer could choose chip conveying in the right or in the back
Spindle unit has two types, the heavy duty cutting type and the high speed type
Heavy duty cutting type is suitable for bearing and gear processing.
High speed type is suitable for high speed and high precision processing.
Screw pr-stretching structure
Gang type tool post
Servo main motor
140 mm spindle units(3500 rpm)
Taiwan linear rail
Taiwan spindle units(5000 rpm)
Taiwan Ball screw
Electric turret 6/8 position
Hydraulic turret 8/12 position
