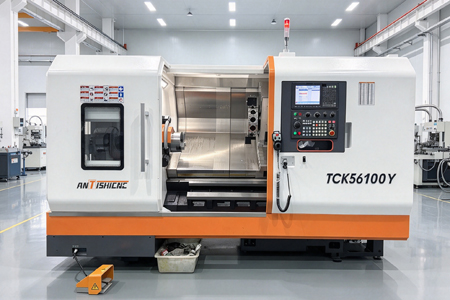

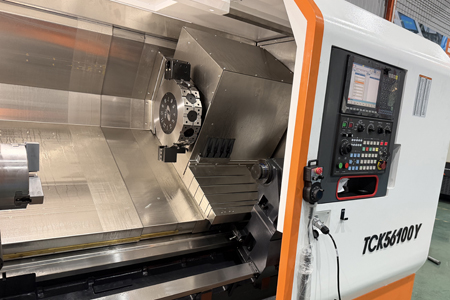

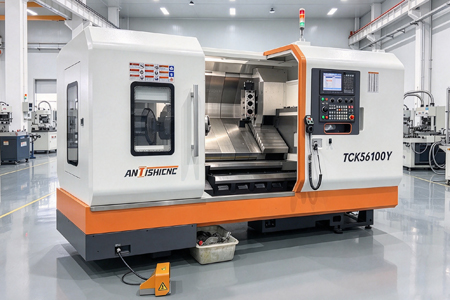

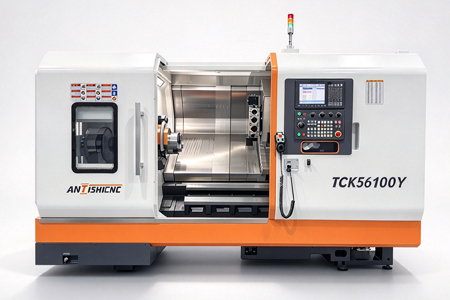

TCK56100Y CNC Turn-Mill Lathe Machine
Max. turning dia. : 380mm
Max. turning length : 930mm
Max. swing dia. : 690mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | TCK56100Y |
| Capacity | |
| Max.work-piece swing diameter | 690mm |
| Max. turning diameter | 380mm |
| Max.swing on cross side | 380mm |
| Max. turning length | 930mm |
| Chuck size | 10” |
| Axis travel | |
| X axis travel | 235mm |
| Z axis travel | 980mm |
| Y axis travel | ±45mm |
| Rapid feed (X) | 18000mm/min |
| Rapid feed (Z) | 18000mm/min |
| Rapid feed (Y) | 6000mm/min |
| Spindle | |
| Spindle speed | 3000r/min |
| Spindle speed range | Step-less |
| Spindle nose | A2-6 |
| Bar capacity | 66mm |
| Hole through draw tube | 55mm |
| Turret | |
| Type of turret | Power turret Tool-BMT45 |
| Number of tool stations | 12 station |
| Disc diameter | 330mm |
| Tool size(square shank) | 25mm |
| Tool size (round shank) | 32mm |
| Number of cutting tools | 4(2square2round) |
| Bed structure and transmission | |
| Tilt angle of lathe machine | 30° |
| Guideway type | Linear guide rail |
| X axis Rail width | 45mm |
| Z axis Rail width | 45mm |
| X axis ball screw | 3210 |
| Z axis ball screw | 4010 |
| Tail stock | |
| Tail stock | Hydraulic(Optional Servo Tail-stock) |
| Tail-stock Guide Rail | Hard-rail |
| Max.travel of tail-stock | 1000mm |
| Max.travel of Servo Tail-stock(Optional) | 930mm |
| Servo Tail-stock Ball Screw Linear Guide | 3205/35mm |
| Sleeve diameter | 80mm |
| Sleeve travel | 80mm/150mm(Optional) |
| Sleeve taper | MT5# |
| Tail seat movement form | Manual |
| CNC System | |
| CNC system | GSK988TA |
| X axis motor torque | 15NM |
| Z axis motor torque | 15NM |
| Y axis motor torque | 10NM |
| Power Knife Tower motor torque | 10NM |
| Spindle motor power | 11kW |
| Other information | |
| Lubrication pump | 3ZK(3L) |
| Cooling pump | 450W |
| Machine voltage | 380V/50HZ |
| Power supply | 27KVA |
| Machine overall dimensions | 3300x2170x2200mm |
| Machine weight | 4500kg |
Resources & Downloads:
TCK56100Y CNC Turn-Mill Lathe Machine Product Introduction :
The TCK56100Y turn-mill CNC turning center features a 45° high-rigidity slant bed and a maximum machining length of 930mm. It enables combined machining operations—including turning, milling, drilling, tapping, and eccentric flat milling—in a single setup, effectively reducing the number of clamping operations and ensuring geometric and positional accuracy. Widely used for machining precision shaft components in the automotive, hydraulic, and construction machinery sectors, it handles both heavy-duty cutting and precision milling, making it ideal for the efficient production of complex, multi-process parts.
It is suitable for small-to-medium batch production of shaft, disc, and complex irregular parts—particularly long components (up to 930mm) that combine rotational profiles with side or end-face milling features,but is not suitable for extra-large diameter, heavy disc components.
Feature
1. Process consolidation: Multiple operations—including turning, milling, drilling, tapping, and boring—are completed in a single setup. This eliminates the need for repeated loading/unloading and re-alignment, significantly reducing clamping errors and enhancing positional accuracy.
2. High-rigidity 45° slant-bed design: The slant-bed structure offers excellent rigidity for handling cutting forces, making it suitable for heavy-duty cutting.
3. Superior chip evacuation: Chips fall into the chip conveyor under gravity, preventing accumulation and reducing thermal deformation—ideal for long-duration batch processing. The machine features a cast structure that ensures excellent long-term accuracy retention.
4. Stable machining accuracy
High positioning accuracy, with repeatability reaching the 0.005mm level, minimizes geometric tolerance deviations caused by multiple setups. Optional RENISHAW tool setters enable automatic detection of tool wear and breakage compensation, thereby reducing the scrap rate.
5. Easy automation integration
Optional accessories such as chip conveyors, work-piece collectors, and gantry loaders allow for integration into automated production lines, enabling efficient, long-duration batch production.
Standard Configuration
| Part Name | Supplier |
| CNC System | GSK |
| Linear guide rail | HIWIN/PMI |
| Ball screw | THK/PMI |
| Screw rod bearing | Japan KOYO |
| Hydraulic chuck | BDF/KPT |
| Hydraulic station | MF |
| BMT45/Power knife holder BMT45 | TWCX |
| Spindle | HN |
| Lubrication pump | HEJIN |
| Cooling pump | OURUIS |
| Triple alarm light | JINYE |
| Heat Ex-changer | XINXIN |
| Low Voltage Apparatus | CHINT |
| Spindle hydraulic brake | ANTISHICNC |
Optional Configuration
| Part Name | Details |
| CNC system | FANUC |
| SIEMENS 828D | |
| SYNTEC | |
| HNC | |
| KND | |
| Chip conveyor | Side place |
| Behind place | |
| Tool Setter | Tool touch sensor |
| Automatic door | |
| Safety device for auto door | |
| Oil mist collector | |
| Oil-Water Separator | |
| Robot IF | |
| Bar material feeder | |
| Blowing device | |
| Water Gun | |
| Soft jaw Chuck | |
| Power knife holder | 90° |
| 0° | |
| Other | |
