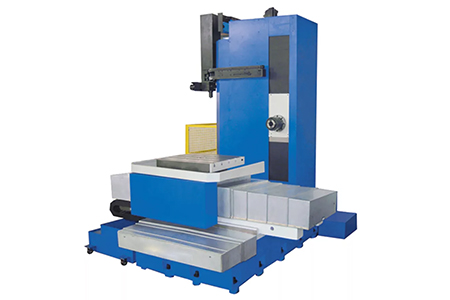

TH-800 CNC Boring and Milling Machine
X axis travel:1200mm
Y axis travel:120mm
Z axis travel:1000mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item No. | 383217 |
| Model | TH-800 |
| Table size | 800X800mm |
| X axis travel | 1200mm |
| Y axis travel | 120mm |
| Z axis travel | 1000mm |
| Max.table load | 1200kg |
| Spindle taper | BT50 |
| Spindle speed | 12000rpm |
| Spindle motor power | 5.5/7.5kW |
| X/Y/Z axis feed speed | 1-5000mm/min |
| X/Z axis hIgh traverse | 12000mm/min |
| Y axis hIgh traverse | 10000mm/min |
| X/Y/Z axis positioning accuracy | 0.01mm |
| X/Y/Z axis repositioning accuracy | 0.005mm |
| B axis rotary degree | 360° |
| Tool magazine | Chain 40T knife library |
| System | Mitsubishi E60,Fanuc,etc |
| Overall dimensions | 6000X5800X3500mm |
| N.W./G.W. | 16500kg |
TH-800 CNC Boring and Milling Machine Product Introduction :
The CNC Boring and milling machine is with roller type vertical and horizonal guide ways.
Four-axis simultaneous motion can process complex surfaces and meet the production requirements of high-end product.
Double pitch worm and gear can control the rotation of operation planform to reach the linkage precision.
Assembled a 40-tool-chain automatically changing system.The replacement times is 13 seconds.
Features:
1.The CNC Boring and milling machine is with roller type vertical and horizonal guide ways.
2.Four-axis simultaneous motion can process complex surfaces and meet the production requirements of high-end product .
3.Double pitch worm and gear can control the rotation of operation planform to reach the linkage precision.
4.Assembled a 40-tool-chain automatically changing system.The replacement times is 13 seconds.
