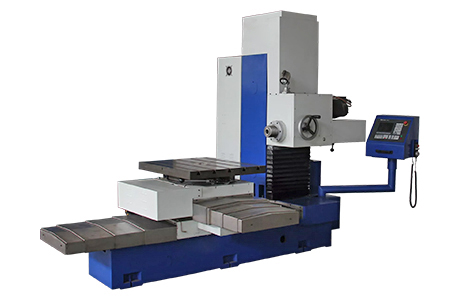

TXK68/TXK160 CNC Boring and Milling Machine
X-axis travel : 1500mm
Y-axis travel : 800mm
Z-axis travel : 1000mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | TXK68 | TXK160 |
| Table Size | 820X720mm | 1300X600mm |
| X Axis Travel | 800mm | 1050mm,1500mm（Optional） |
| Y Axis Travel | 550mm | 800mm |
| Z Axis Travel | 1000mm | 500mm |
| Max.Table Load | 1200kg | / |
| Spindle Taper | MT5 or BT50 | BT50 |
| Spindle Speed | 27-760rpm(9 speed) | Max.3000rpm |
| Spindle Motor Power | 5.5kW | 5.5/7.5kW |
| Positioning Accuracy | ±0.015mm | ±0.015mm |
| Repositioning Accuracy | ±0.005mm | ±0.005mm |
| X/Y/Z Axis High Traverse | 12000mm/min | 18000mm/min |
| X/Y Axis Feed Speed | 1-2500mm/min | 1-3000mm/min |
| Z Axis Feed Speed | 1-2000mm/min | 1-3000mm/min |
| System | Mitsubishi E60 M64AS Fanuc,etc. | Mitsubishi E60 M64AS Fanuc,etc. |
| Overall Dimensions | 3450X2100X2880mm | 2650X3000X2500mm |
| N.W./G.W. | 6000/6400kg | 6800/7200kg |
TXK68/TXK160 CNC Boring and Milling Machine Product Introduction :
Large size working table and transverse long travel design, is perfect equipment to process medium and small tank.
Heavy loaded linear guideways on X.Y axis, rectangular hardened guideways on Z axis, ensure maximum accuracy and high quality load capacity.
With 4th axis(B), PROCESS 360 degree division, can process space curvers and different positions working.
The CNC boring and milling machine TXK160/160B is a fixed-column horizontal type. It features high precision and high efficiency, can realize X/Y/Z axes simultanceous motion, finishes drilling, milling, and so on.
Features:
1. Large size working table and transverse long travel design, is perfect equipment to process medium and small tank.
2. Heavy loaded linear guideways on X.Y axis, rectangular hardened guideways on Z axis, ensure maximum accuracy and high quality load capacity.
3. With 4th axis(B), PROCESS 360 degree division, can process space curvers and different positions working.
4. The CNC boring and milling machine TXK160/160B is a fixed-column horizontal type. It features high precision and high efficiency, can realize X/Y/Z axes simultanceous motion, finishes drilling, milling, and so on.
5. The machine uses a lengthened operating platform and long transverse design. Our tube and profile end grinder is especially suitable for processing middle and long shells and box-shaped parts.
6. The X/Y/Z axes use an overloading linear guide way and servo control. They have the advantages of strong bearing capacity, quick movement speed, accurate positioning and sound dynamic performance.
7. He basic parts of our CNC boring and milling machine use a high-rigidity and symmetrical box structure like HT300 casting, which is of sound anti-seismic performance and high stability.
8. Our CNC boring and milling machine can be equipped with a B-axis of the fourth one, automatically conduct the equally divided positioning, and process complex parts at different directions and angles.
9. According to needs, our CNC boring and milling machine can deploy the tool magazine and complete various combined processing for complex parts
10. TXK160B has a rotary work table
