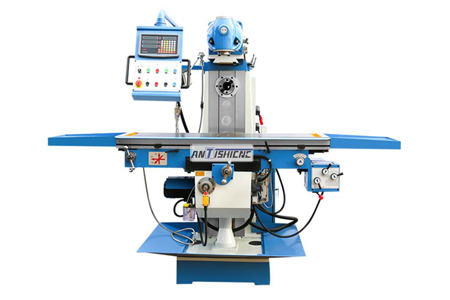

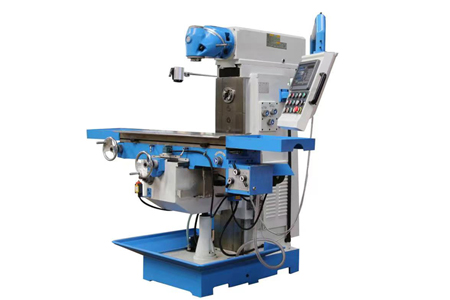

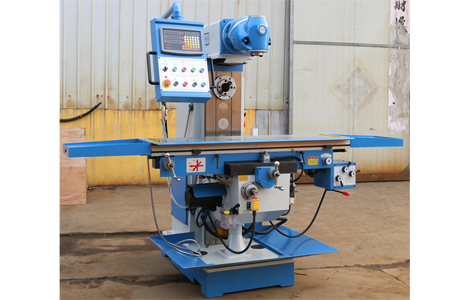

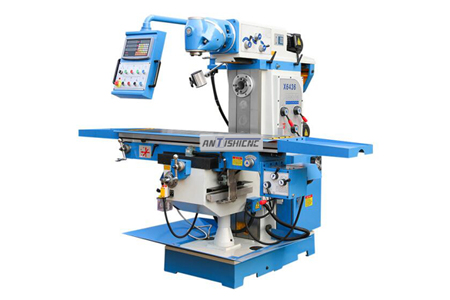

X6432 X6436 Universal Rotary Head Milling Machine
Table size :
1500*320 mm
1500*360 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| SPECIFICATIONS | Units | X6432 | X6436 |
| Table size | mm | 1500*320 | 1500*360 |
| Table travel | mm | 1000/320/400 | 1000/320/400 |
| T slot(number-width*pitch) | – | 3-16*80 | 3-18*80 |
| Spindle taper | – | ISO40 | ISO40 |
| Horizontal spindle taper | – | ISO40 | ISO40 |
| Spindle speed range(steps) | rpm | 48-1660 (12) | 48-1660 (12) |
| Horizontal spindle speed range(steps) | rpm | 40-1300 (12) | 40-1300 (12) |
| Distance between spindle nose and table surface | mm | 120-520 | 150-550 |
| Distance between horizontal spindle axis and table surface | mm | 0-400 | 0-400 |
| Table feed range (steps) | mm /min | XY:22-555 (8) Z:electric | XY:22-555 (8) Z:electric |
| Swivel angle of milling head | ° | 360 | 360 |
| Main motor power | kw | 3(Vertical)/3(Horizontal) | 4(Vertical)/4(Horizontal) |
| Feed motor power | kw | 1.1 | 1.1 |
| Machine weight | kg | 25100 | 2580 |
| overall dimension | mm | 2050*1750*2000 | 2550*2050*2050 |
Product Description:
1. It can realize vertical and horizontal milling two processing function ;
2. The two rotary milling head, spindle at any angle rotating and adjustment ;
3. Can be used for processing and mold shell ;
4. Work bench X. Y all are gear drive automatic feed, Z to the electric lift ;
5. Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable.
Application：
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Standard Equipment
Drill chucks and adaptors
Milling chucks
Pliers
Reducing sleeves; Retracting wedges
End milling tie rods
End milling tie rod intermediate sleeves
Horizontal milling tie rods
Horizontal milling cutter bars
Work lights
Cooling systems
Instruction Manual
Optional Equipment
3-Axis DRO
Automatic feed
Clamping kit
Tools
Dividing head
Rotary table
Electronic oil pump
