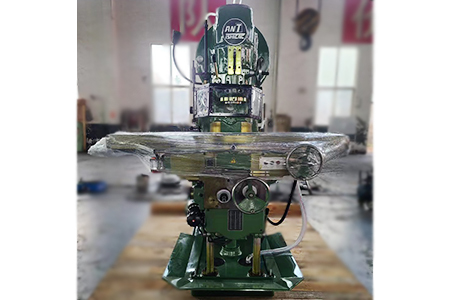

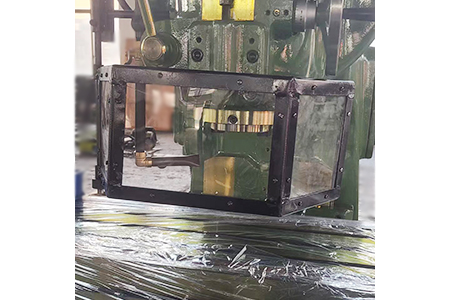

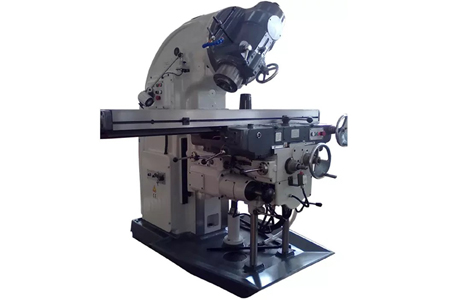

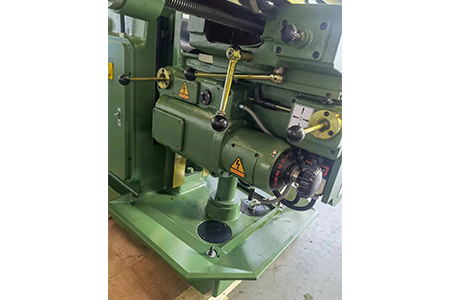

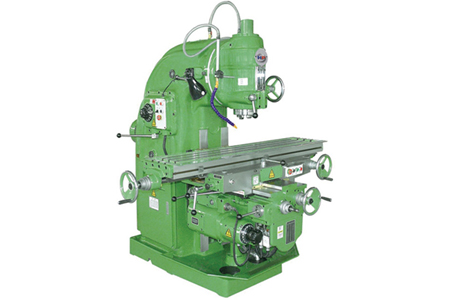

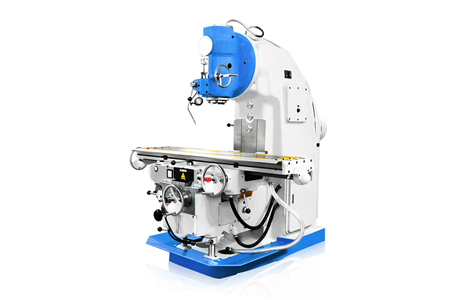

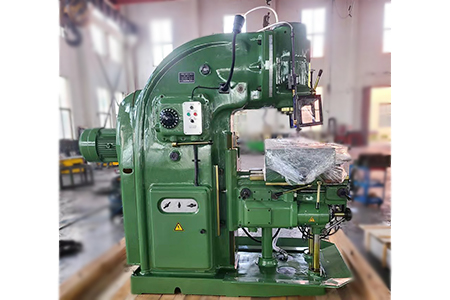

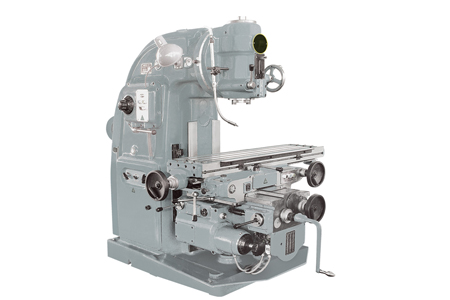

X5032 X5040 Vertical Metal Knee Type Universal Milling Machine
Table size :
1320mm×320mm(52"x13")
1700mm×40mm0(67"x16")
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Unit | X5032A | X5032B | X5040A | X5040B |
| Table size( (width*length) | mm | 320×1320 | 320×1700 | 400×1700 | 400×2200 |
| T-type slot | mm | 3-18×70 | 3-18×70 | 3-18×90 | 3-18×90 |
| Table travel(X/Y/Z)-Manual | mm | 700/255/370 | 1100/255/370 | 900/315/385 | 1400/315/380 |
| Table travel(X/Y/Z)-Auto | mm | 680/240/350 | 1080/240/350 | 880/300/365 | 1390/300/360 |
| Spindle taper | 7：24 ISO50 | 7：24 ISO50 | 7：24 ISO50 | 7：24 ISO50 | |
| Tool holder type | XT50 | XT50 | XT50 | XT50 | |
| Spindle speed range | r/min | 18steps 30-1500 | 18steps 30-1500 | 18steps 30-1500 | 18steps 30-1500 |
| Spindle motor power | KW | 7.5 | 7.5 | 11 | 11 |
| Max.rotation angle of vertical milling head | ±45° | ±45° | ±45° | ±45° | |
| Manual vertical travel | mm | Sleeve70 | Sleeve85 | Sleeve85 | Sleeve70 |
| Distance between spindle nose and worktable surface | mm | 45/415 | 45/415 | 30/515 | 30/500 |
| Distance from vertical spindle centerline to bed rail | mm | 350 | 350 | 210-450 | 450 |
| Feed speed range (X/Y/Z) | mm/min | 18step 23.5-1180/15-786/8-394 | 18step 23.5-1180/15-786/8-394 | 18step 23.5-1180/15-780/8-394 | 18step 23.5-1180/15-786/8-394 |
| Rapid feed (X/Y/Z) | mm/min | 2300/1540/770 | 2300/1540/770 | 2330/1540/770 | 2330/1540/770 |
| Feed motor power | KW | 2.2 | 2.2 | 3 | 3 |
| Max. loading of table | KG | 500 | 500 | 800 | 500 |
| Machine weight(approx.) | KG | 2800 | 3000 | 4250 | 4200 |
| Overall dimensions(L*W*H) | mm | 2272×1770×2094 | 2272×2150×2094 | 2256×2159×2298 | 2556×2659×2298 |
X5032 X5040 Vertical Metal Knee Type Universal Milling Machine Product Introduction :
Product Detail
Vertical lifting platform milling machine is a kind of general metal cutting machine tool. The X5032 & X5040 series vertical milling machine is suitable for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face various plane, inclined plane, groove, etc.
If take use of appropriate milling machine accessories, For example, The spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, the machine will be available for processing a variety of small parts of plane, inclined plane,grooves, holes, and other gears.
The configuration of universal milling head, round table, the work table size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.
It’s an idea processing milling machine equipment for mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries.
Features
1. Using the moment type rail steel for good stability
2. X, Z, Y direction fast feed
3. Lengthen the slider, the distance is lengthened, and the stability is increased.
4. Concentrated lubrication of the guide surface
X5032 milling machine can be used for drilling, milling plane, hinge hole, and the repair of a variety of forms of processing, X5032 milling machine is widely used in small and medium enterprises, township and individual industrial machinery processing, and various types of machinery manufacturing processing of small parts, also applies to repair shop.
Standard Equipment
Drill chuck
Mill chuck
Inner hexagon spanner
Work light
Reduction sleeve
Draw bar
Spindle arbor
Wrench
Optional Equipment
DRO on X,Y,Z–AXIS
Clamping kit
Universal dividing head
Rotary work table
