Vertical Metal Band Sawing Machine CV Series
Cutting Capacity :
H:250~500mm W: 350~800 mm
Length: 1000~6000 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :

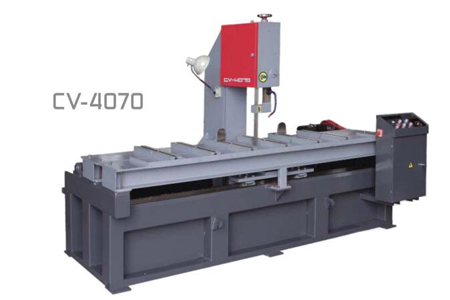

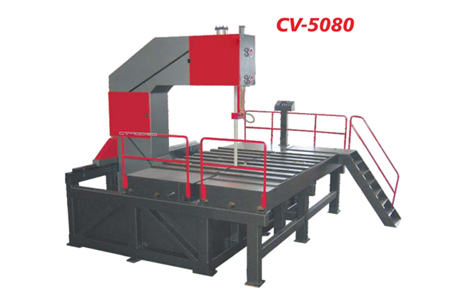

| MODEL | CV-2535 | CV-4070 | CV-5080 |
| Cutting Capacity (mm) | H:250 D:350
L:1000~6000 |
H:400 D:700
L:1000~6000 |
H:500 D:800
L:1000-6000 |
| Blade Size (mm) | 34×1.1 | 41×1.3 | 41×1.3 |
| Blade Speed (m/min) | 30/45/75 | 30/45/75 | 30/4575 |
| Motor Main (KW) | 3. 0(kw) | 5. 5(kw) | 7.5(kw) |
| Coolant Pump (KW) | 0.06(kw) | 0.06(kw) | .6(kw) |
Product detail:
This vertical metal sawing machine tool is mainly suitable for sawing small-sized steel plates, bars, etc. It has the advantages of narrow sawing, material saving, energy saving, high sawing precision, convenient operation and high production efficiency. The worktable is driven by a hydraulic cylinder to realize the feeding and retracting actions.
Standard Equipment:
●Working light
●One piece of bi-metal saw blade
●One set of tools with tool box
Optional Equipment:
●Hydraulic top pack
●Automatic chip conveyor
●Inverter
●PLC control
●CV-Series can be designed according to customer’s required
cutting size
●Hydraulic blade tension
●Saw guide elevation is hydraulically operated
●Laser projector
