Vertical Band Saws

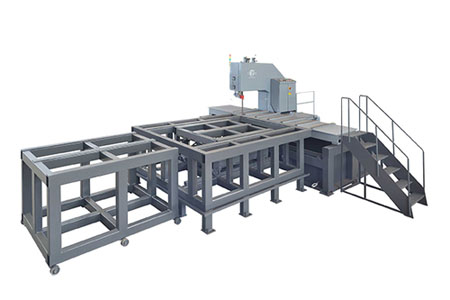

Vertical metal band sawing machine (G5350/110/300)

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

MODEL G5350/110/300 CV-100150 G5480/260
Cutting Capacity (mm) D:1100 H:500 L:3000 H: 1000 D:1500 L:2000~6000 H:800 D:2600 L:2000~10000
Blade Speed (m/min) 20~65 Inverter 20~ 65 Inverter 20~65 Inverter
Blade Size (mm) 41×1.3 67×1.6 54×1.6
Motor Main (KW) 7.5 15 11
Coolant Pump (KW) 0.09 0.12

Product description:
● The block type structure occupies a small area, and the operation control is concentrated on the console of the saw frame;

● Servo motor control feed speed, can be adjusted at 1-120mm/min, low speed, stable performance;

● The main drive adopts frequency conversion speed regulation, with reliable performance and smooth operation. The upper steering arm is hydraulically controlled and easy to operate;

● Special accessories laser mark first locator, can be convenient and accurate alignment of processing saw, plus mechanical fixed length device;

● Simple clamping;

● The worktable and the console of the machine tool are provided with upper and lower steps, and there is a guard bar around the worktable to protect the operator;

● With hydraulic lifting feeding function.

Product features:
● The block type structure occupies a small area, and the operation control is concentrated on the console of the saw frame;

● Servo motor control feed speed, can be adjusted at 1-120mm/min, low speed, stable performance;

● The main drive adopts frequency conversion speed regulation, with reliable performance and smooth operation. The upper steering arm is hydraulically controlled and easy to operate;

● Special accessories laser mark first locator, can be convenient and accurate alignment of processing saw, plus mechanical fixed length device;

● Simple clamping;

● The worktable and the console of the machine tool are provided with upper and lower steps, and there is a guard bar around the worktable to protect the operator;

● With hydraulic lifting feeding function.
