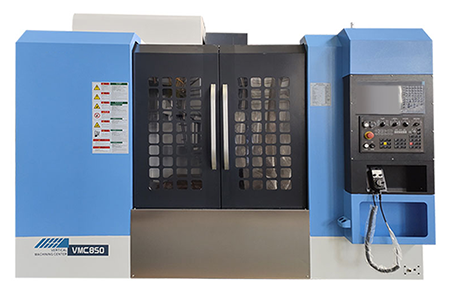

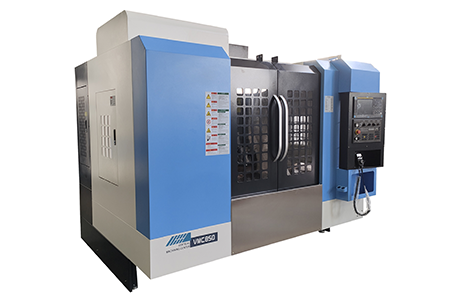

VMC850 Machine Center
Table Size:1000×500mm
Max Loading Weight:550kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical SPEC| Model | Unit | VMC850 |
| Table Size(length*width) | mm | 1000×500 |
| Max Loading Weight | kg | 550 |
| Number-width x distance | mm | 5-18×90 |
| X/Y/Z Travel | mm | 800/500/500 |
| Max .Distance From spindle nose to
Table Surface |
mm | 150-650 |
| Spindle center to Z axis guide surface | mm | 570 |
| Spindle motor power | kW | 7.5/11 |
| Max. Spindle Speed | rpm | 10000 |
| Spindle Taper | BT40 | |
| 3 axis rapid speed | m/min | 48/48/36 |
| Max cutting speed | m/min | 10 |
| Pull stud | MAS403 BT40-45° | |
| ATC capacity | BT40-24T | |
| Max. Diameter of tool length | mm | Φ85×350 |
| Positioning Accuracy | mm | ±0.004 |
| Repeatability Accuracy | mm | ±0.003 |

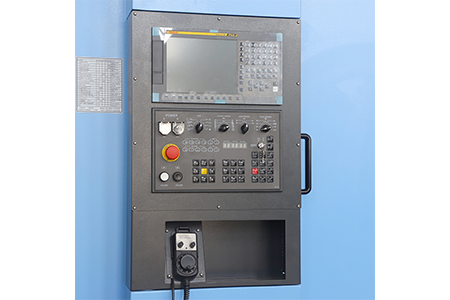

| CNC system | FANUC 0IMF5 | |
| Machine Size (L*W*H) | mm | 2700x2500x2650 |
| Machine Weight | Kg | 5300 |

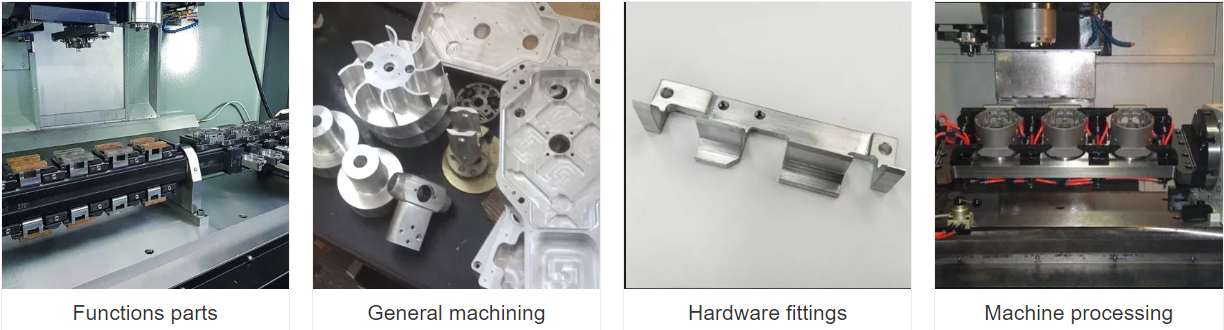

ANTISHICNC Company produced VMC Series CNC milling machine machining take the advantages of traditional vertical linear rail machine tools, such as strong rigidity of the basic frame, symmetrical structure, and strong stability, and introduces the internationally advanced dynamic rigidity design concept and optimizes the design of moving parts. After one clamping, the parts can complete multi-sequence processing such as milling, boring, drilling, and tapping with high precision. The machine tool has high processing efficiency and good rapid response characteristics, and is suitable for the needs of various mechanical processing fields such as molds,automotive industry, and hardware and etc.
Quality Control Pointsto the VMC Machines

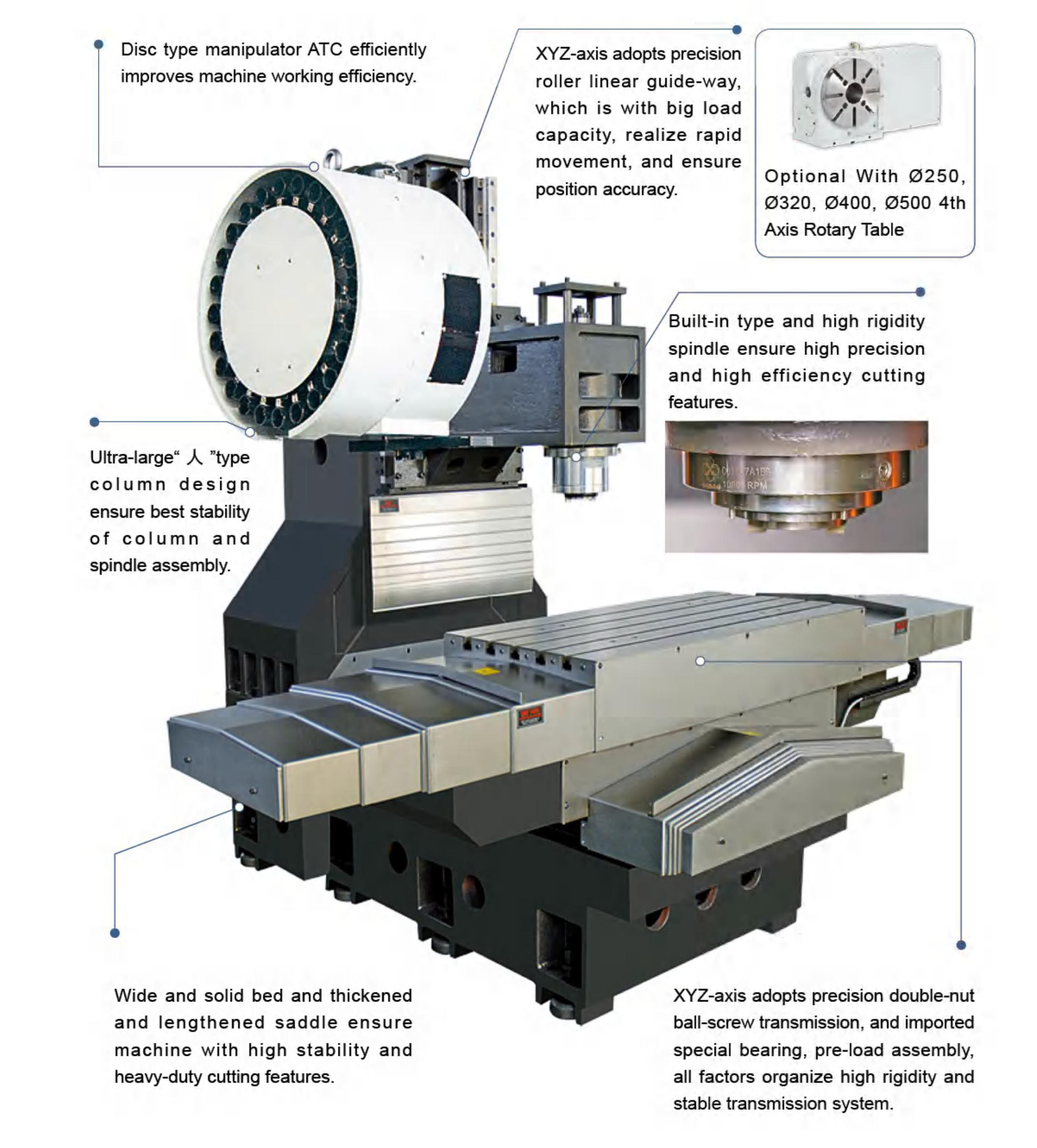

1.High rigidity and long-term accuracy retention
The main large parts of the machine tool: the base, the worktable, the column, the saddle, and the head-stock are all made of high-quality resin sand, high-strength and high-quality cast iron, and have a perfect heat treatment process to eliminate residual stress. The machine has sufficient strength, rigidity and high stability.
The three-axis adopts roller linear guide, which has strong rigidity, fast response speed, high precision, and does not crawl at low speed.
The three-axis transmission adopts the grinding double-nut ball screw made in Taiwan, which is compact in structure, stable in motion and high in precision. The screw support adopts the screw support bearing imported from Japan, and the two ends are pr-stretched to eliminate the precision loss caused by thermal elongation. It forms a stable and high-rigidity mechanical transmission system.
The distance from the center of the main shaft to the guide rail surface is short, the turning moment is small, and the structure is rigid;
The high-rigidity Taiwan-made spindle is lubricated with grease, which can ensure constant and reliable lubrication of the spindle bearing, which is economical and environmentally friendly and realizes long-term maintenance-free;
2.High precision and high dynamic response characteristics
The spindle adopts three-point support, two high-precision angular contact ball bearings are used at the front and rear ends, and one high-precision angular contact ball bearing is used in the middle, so that the spindle can obtain high rigidity and extremely high spindle rotation accuracy;
Roller linear guides are used for the three axes, with high precision, large load, low friction coefficient, optimized circle accuracy, accurate positioning, and high dynamic response characteristics;
3.High efficiency
Spindle Standard speed up to 10000RPM, rapid movement up to 48/48/36 m/min, cutting feed rate up to 10 m/min; Customer can choose higher speed range as per the demand.
Equipped with an automatic tool changing device for manipulators, with the function of selecting the nearest tool, which is convenient for maintenance, and the tool exchange is fast and reliable;
4.Protective cover
The protective cover made by a professional sheet metal manufacturer is used, and the base drainage is a large water pan structure, which prevents water leakage;
Equipped with air gun and water gun, the processing iron chips can be quickly collected into the chip box.

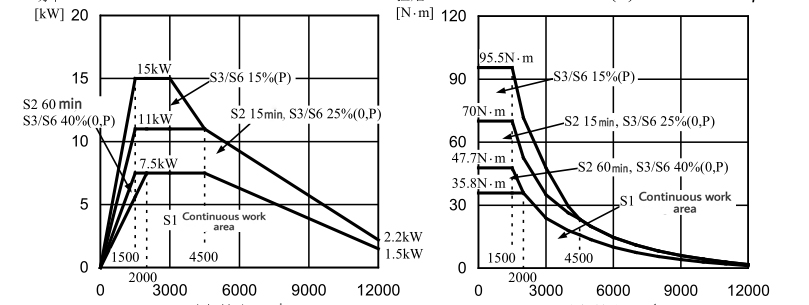

Power & Torque Graphs of VMC 850
Packing & Shipping Terms
1.Provide the following technical documents when the equipment is delivered
Packing list 1 copy
Factory qualified certificate 1 copy
Operation manual 1 copy
Circuit system schematic diagram 1 copy

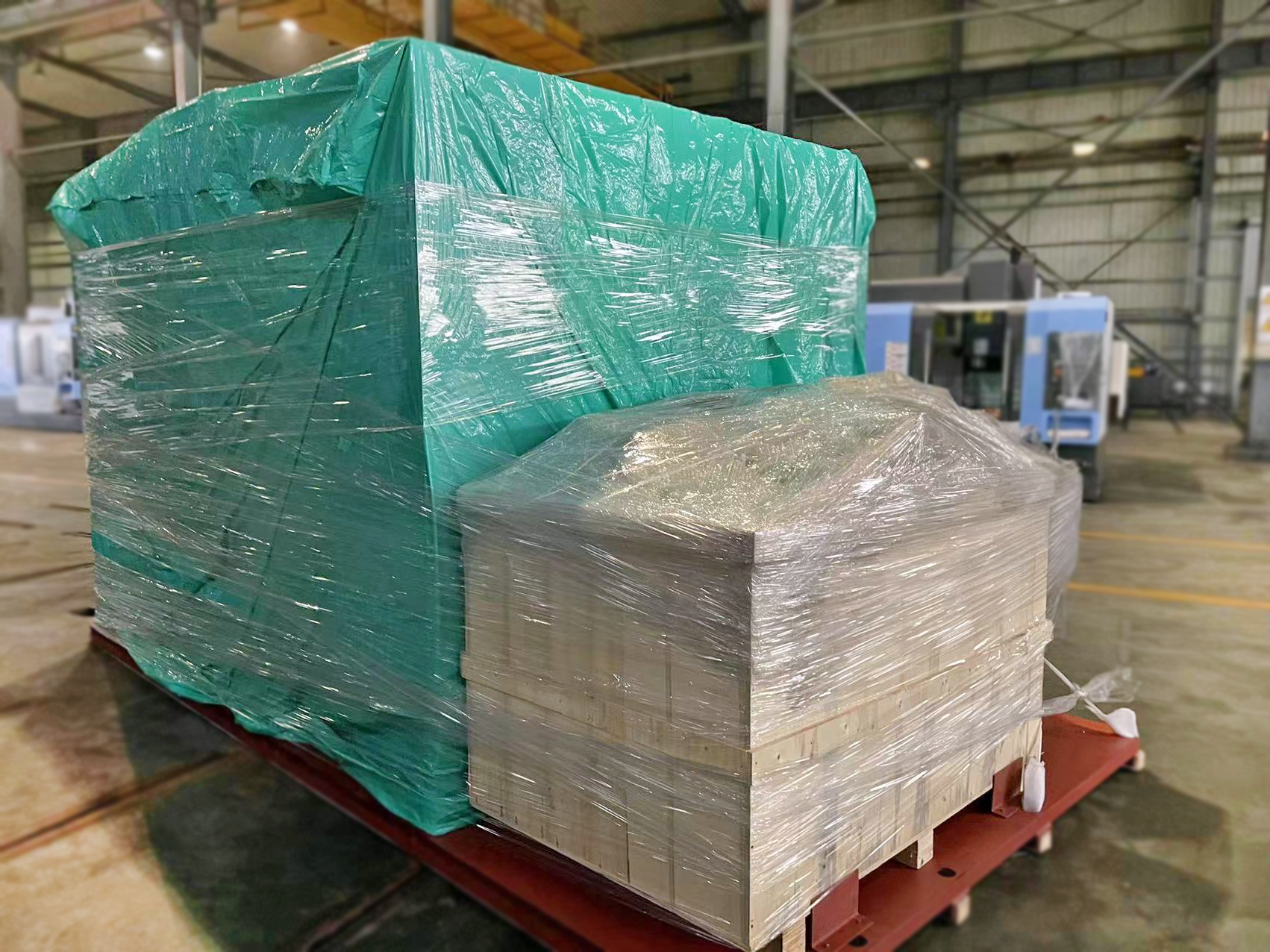

2.Packaging and transportation
Factory ordinary packaging, please confirm with the ANTISHICNC for more details
The transportation is carried out in accordance with the contract terms.
| VMC Model | Package size(MM) | G.W(KG) | N.W(KG) |
| VMC850S | 3900*2250*2570 | 5000 | 4800 |
| VMC850 | 4000*2250*2570 | 5300 | 5100 |
| VMC1060 | 4100*2280*2570 | 6800 | 6500 |
| VMC1160 | 4100*2280*2570 | 6800 | 6500 |
| VMC1260 | 4100*2280*2570 | 6800 | 6500 |
| VMC1370 | 3500*2700*2800 | 10800 | 10500 |
| VMC1380 | 4100*2700*2800 | 13800 | 13500 |
| VMC1580 | 4200*2700*2800 | 14300 | 14000 |
| VMC1890 | 4500*3450*2900 | 15800 | 15500 |
ANTISHICNC Company CNC Milling Machines Acceptance Standard and Methods
1.Main implementation standards
GB/T 18400.2-2010 “Vertical Machining Center Geometric Accuracy Inspection”
GB/T18400.4-2010 “Machining Center Linear Positioning Accuracy and Repeated Positioning Accuracy Inspection”
GB/T18400.7-2010 “Machining Center Precision Machining Test Piece”
JB/T 8801-1998 “Machining Center Inspection Conditions”
The technical requirements for the acceptance of the machine tool are implemented according to the above standards, and meet the requirements of the national standard, and the machining accuracy meets the requirements of the technical agreement.
STANDARD ACCESSORIES：
Back row chip full cover sheet metal belt chip remover, drawer type water tank and chip box, backward impact chip washing device, full-function operation panel and handwheel, ATC, belt drive spindle, sprinkler cooling system at the spindle side, air cooling system at the spindle side, heat exchange device of electric cabinet, working area cleaning water gun, air gun, working light and alarm light.
OPTIONALACCESSORIES：
| 1 | Chain type chip remover(VMC850S/850/1060) |
| 2 | Chain type chip remover(VMC1160/1260) |
| 3 | Chain type chip remover(VMC1370) |
| 4 | Chain type chip remover(VMC1380/1580) |
| 5 | Chain type chip remover(VMC1890) |
| 6 | BT40 direct connecting spindle (12000rpm)(VMC850S~VMC1370) |
| 7 | Spindle central outlet function(VMC850S/850) |
| 8 | Spindle central outlet function(VMC1060~1890) |
| 9 | 4th rotary table φ250mm (FANUNC β） |
